Intermediate Shaft Assembly

Disassembled Views

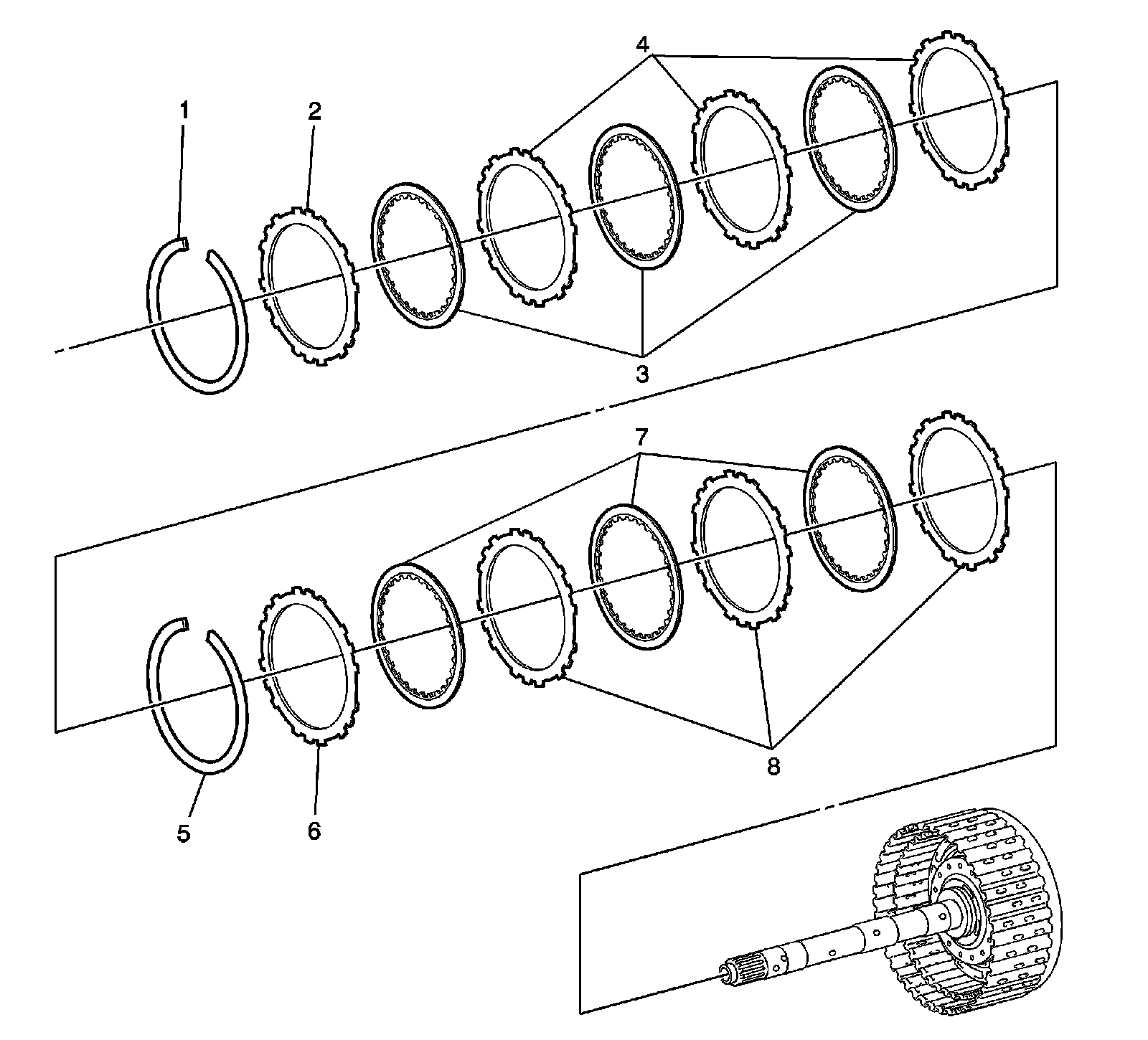

Intermediate Shaft Assembly Part 1 of 3




1 - Snap Ring
2 - Reverse Clutch Flange
3 - Reverse Clutch Disc
4 - No. 3 Clutch Plate
5 - Snap Ring
6 - Direct Clutch Flange
7 - Direct Clutch Disc
8 - Rear Clutch Flange

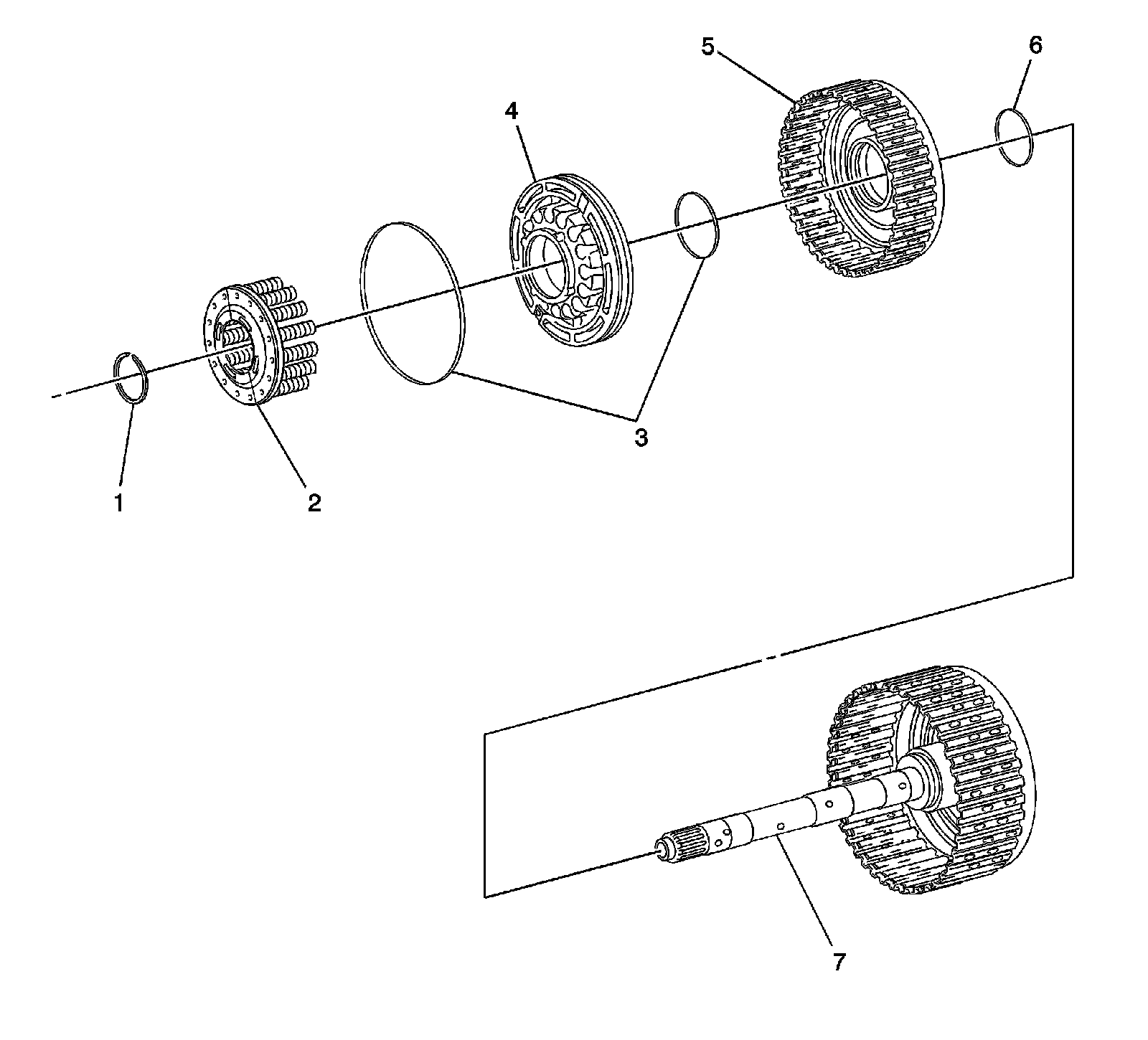

Intermediate Shaft Assembly Part 2 of 3




1 - Snap Ring
2 - Direct Clutch Return Spring Sub-Assembly
3 - Direct Clutch Piston O-Ring
4 - Direct Clutch Piston Sub-Assembly
5 - Direct Clutch Drum Sub-Assembly
6 - Direct Clutch Drum O-Ring
7 - Intermediate Shaft

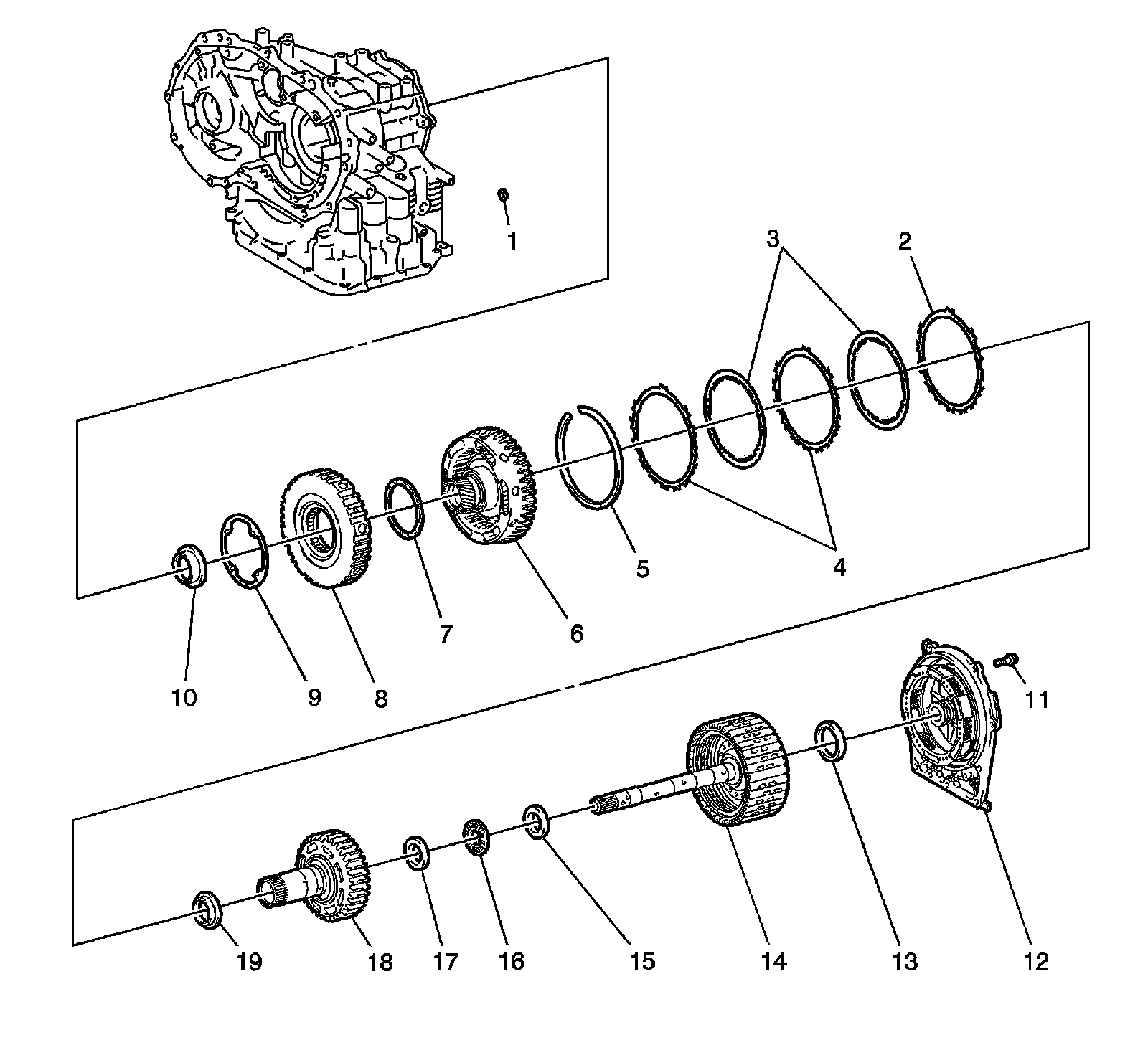

Intermediate Shaft Assembly Part 3 of 3




1 - Transaxle Case Gasket
2 - 2nd Coast and Overdrive Brake Flange
3 - 2nd Coast and Overdrive Brake Disc
4 - No. 2 2nd Coast and Overdrive Brake Flange
5 - Snap Ring
6 - Rear Planetary Sun Gear Assembly
7 - No. 2 Planetary Carrier Thrust Washer
8 - One-Way Clutch Assembly
9 - No. 1 Planetary Carrier Thrust Washer
10 - Rear Planetary Sun Gear Thrust Needle Roller Bearing
11 - Bolt
12 - Rear Transaxle Cover Assembly
13 - Rear Clutch Drum Thrust Needle Roller Bearing
14 - Intermediate Shaft Assembly
15 - C-2 Hub Thrust Bearing Race
16 - Thrust Needle Roller Bearing
17 - No. 3 Thrust Bearing Race
18 - Direct Clutch Hub
19 - Rear No. 2 Planetary Sun Gear Thrust Needle Roller Bearing
