Blower Motor Resistor: Service and Repair




Blower Motor Resistor Replacement

Removal Procedure




1. Disengage the three clips (1) and guide (2) from the lower instrument panel cover.
2. Remove the lower instrument panel cover from the vehicle.

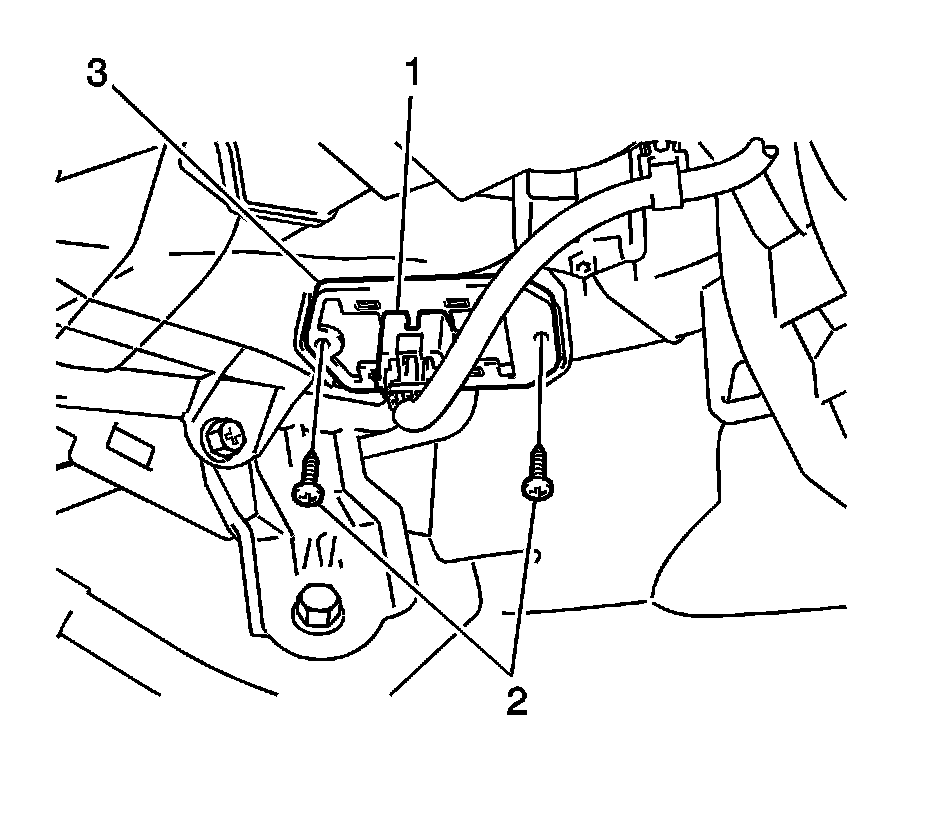

3. Disconnect the blower motor resistor electrical connector (1).
4. Remove the two screws (2) and the blower motor resistor (3) from the blower case.

Installation Procedure




1. Install the blower motor resistor (3) to the blower case. Secure with the two screws (2).
2. Connect the blower motor resistor electrical connector (1).




3. Install the lower instrument panel cover to the vehicle.
4. Engage the three clips (1) and guide (2) to the lower instrument panel cover.
