System Specifications

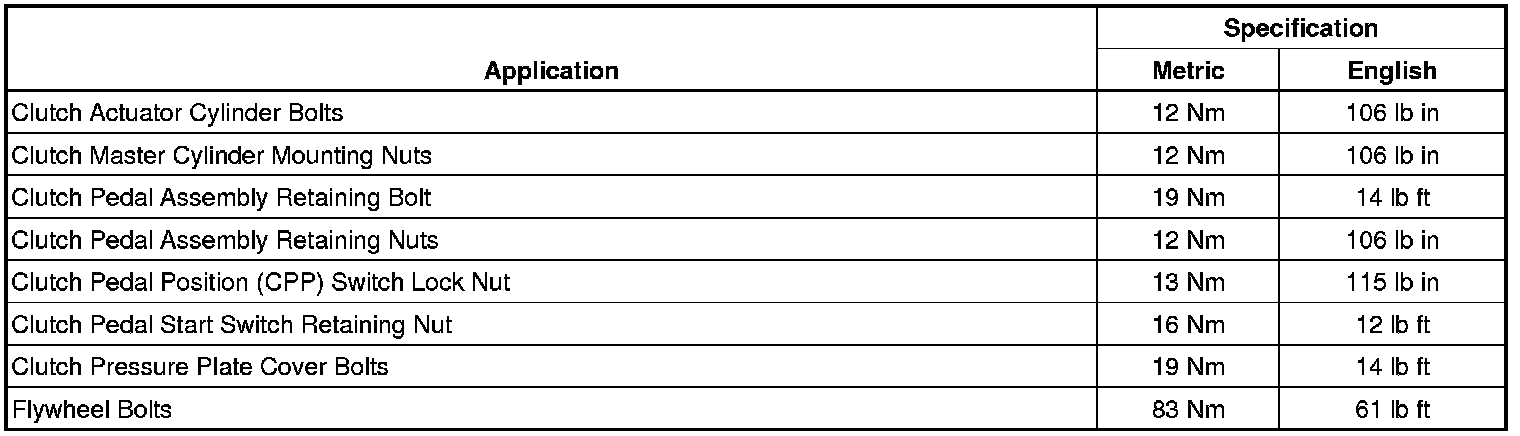

Fastener Tightening Specifications

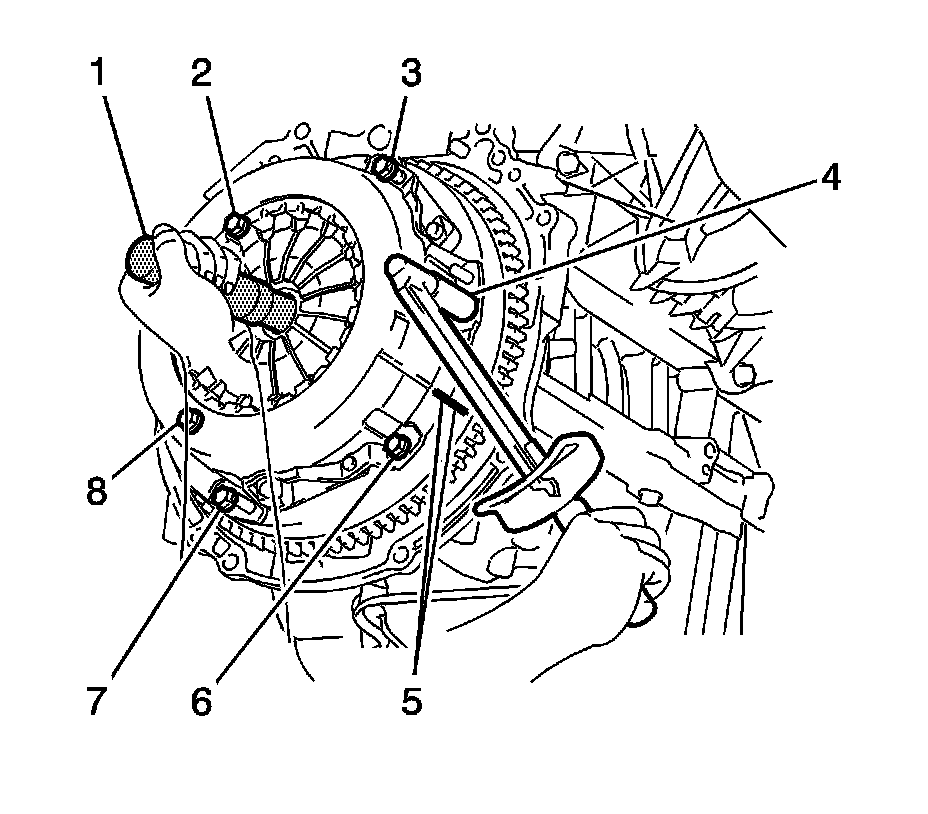

MVE M/T





Tighten the bolts evenly one turn at a time
Tighten the bolts in order, starting with the bolt located near the knock pin at the top.
Disc minimum rivet depth 0.3 mm (0.012 in)
Maximum disc runout 0.8 mm (0.031 in)

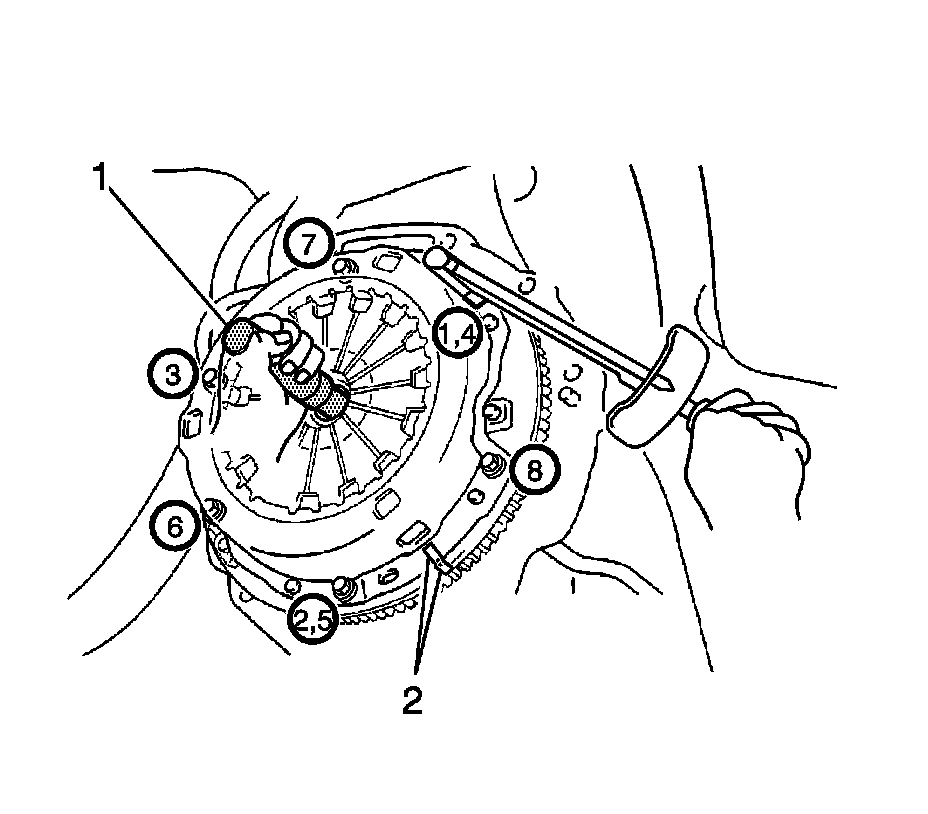

MVC M/T





Evenly tighten the bolts one turn at a time
Tighten the bolts (2-4, 6-8) in order, starting with the bolt located near the knock pin at the top
Maximum disc runout 0.8 mm (0.031 in)
Minimum disc rivet depth 0.3 mm (0.012 in)
