Windshield Washer Hose: Service and Repair

Hose Replacement (Hose Connector to Washer Nozzle)

Removal Procedure

1. Remove the hood insulator. Refer to Hood Insulator Replacement (Service and Repair).

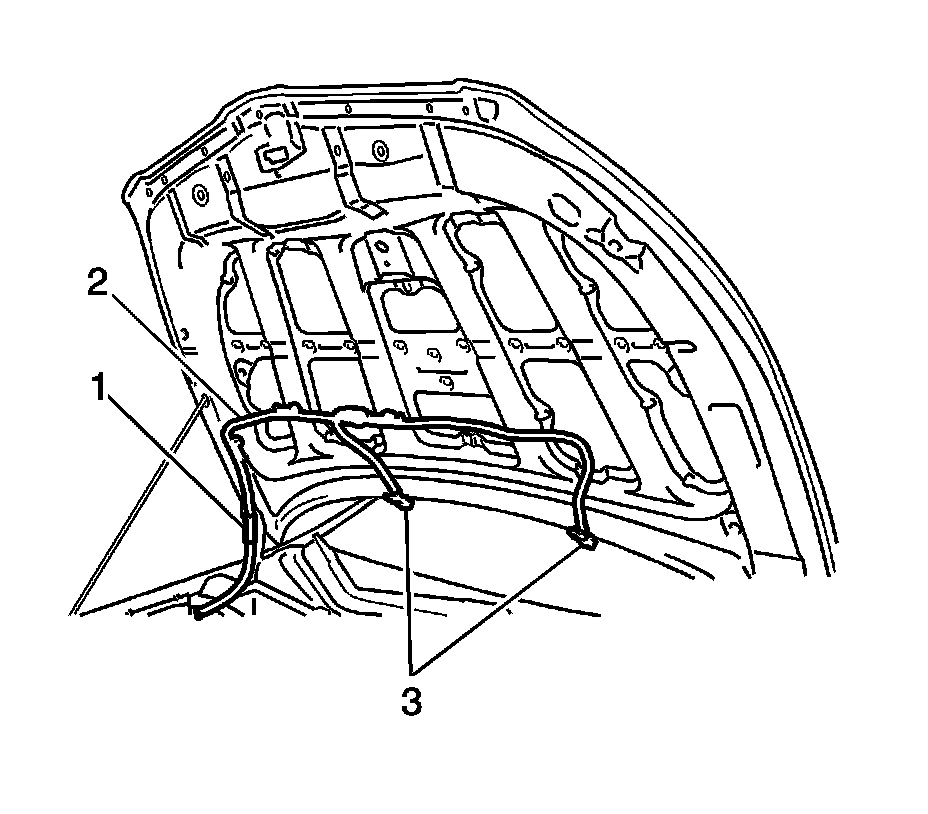

2. Disconnect the washer hose (2) from the following components:

* The washer nozzle (3)
* The hose connector (1)
* The washer hose to hood retainers

3. Position the hose connector higher than washer solvent container, if necessary in order to prevent the washer fluid from being lost.
4. Remove the washer hose (2) from the hood.

Installation Procedure




1. Install the washer hose (2) to the hood and connect the hose to the following components:

* The hose connector (1)
* The washer hose to hood retainers
* The washer nozzle (3)

2. Install the hood insulator. Refer to Hood Insulator Replacement (Service and Repair).
