AFC Fuel Injection - Revised Test Specifications
83porsche02Subject:
AFC Fuel Injection
Part Identifier N/A
Applies To 928
(Supersedes Product Circular, Grp. 24, No. 83-01) 01/24/83
Group
24
Key Points
Revised test specifications
(Updates information given in 928 Air Flow Controlled
C Fuel Injection Service Information booklet, page 18, of 8/80)
Number
83-02
March 15, 1983
The test values in the accompanying table are obtained at the multiple-pin plug on the Fuel injection control unit.
- remove multi-pin plug from control unit
- turn ignition switch OFF for resistance tests, ON for voltage tests.
Note
Make all measurements with a quality test instrument which measures resistance and voltage.

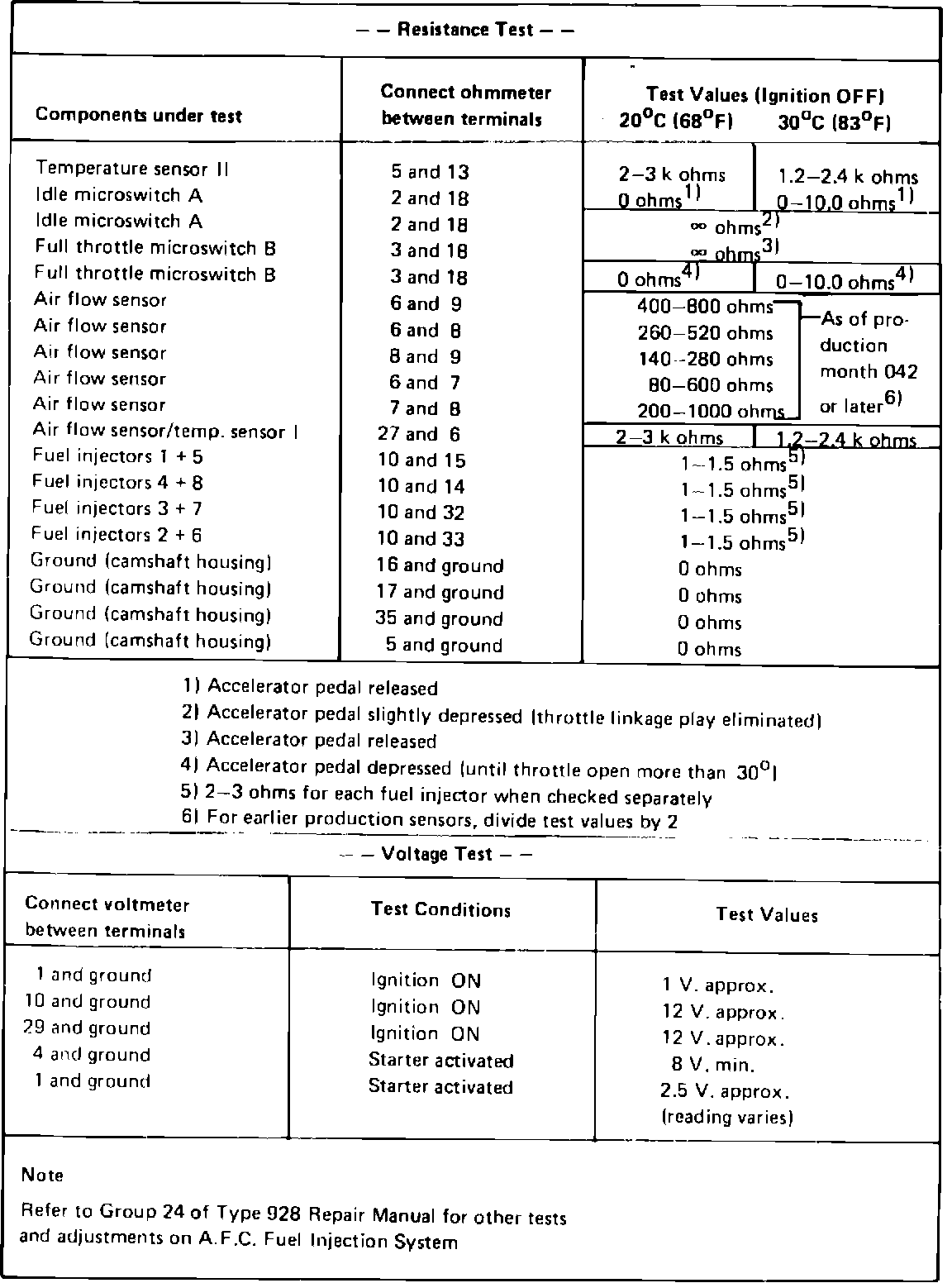

Test Values - - At Fuel Injection Control Unit Multi-Pin Plug
