Installing
Installing 1.
Replace a selector rod protective tube if retainer is deformed excessively.
2.
Place selector rod protective tube in transmission case. Tighten and bolt transmission. Tighten all mounting bolts to specified torque.
3.

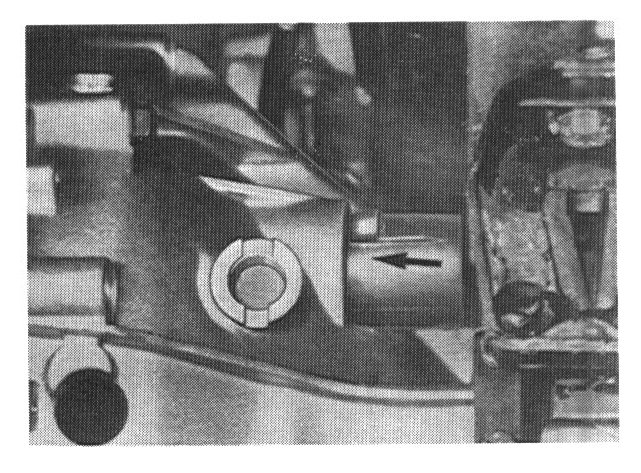

Push selector rod protective tube forward until retainer engages in transmission case.
4.
Mount selector rod on intermediate lever and lock with steel wire.
