Removing and Installing Rear Centre Panel

Removing And Installing Rear Centre Panel

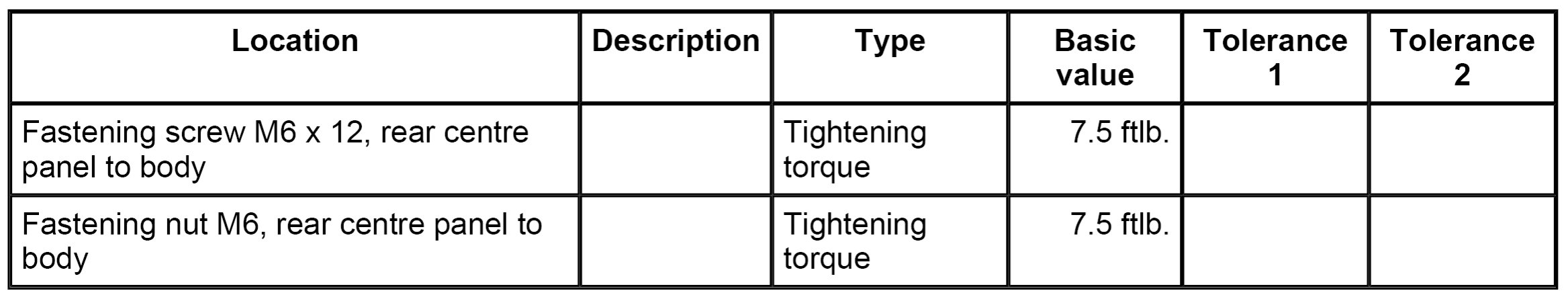

Technical values







Preliminary work
Remove rear roof lining.

Removing rear centre panel

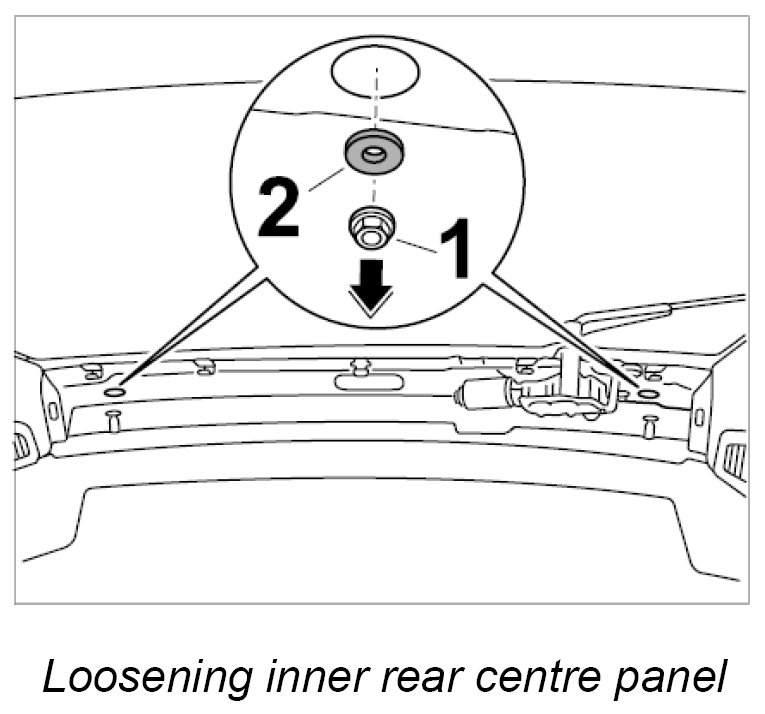

Loosening inner rear centre panel

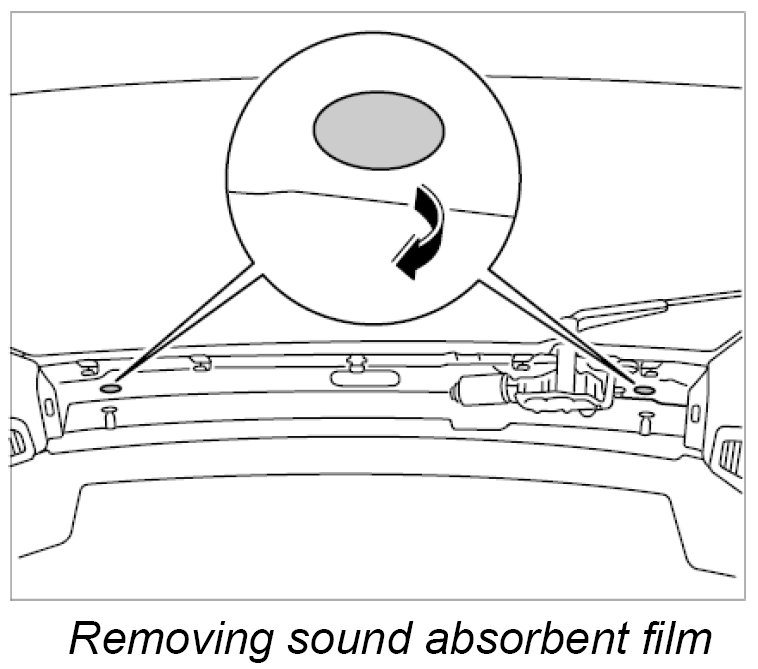

1. Remove sound absorbent film.







2. Unscrew fastening nut -1- and remove seal -2- .

Loosening outer rear centre panel







1. Extend rear spoiler manually.







2. Unscrew fastening screws -1- and remove rear centre panel -2- upwards until the electric plug connection can be released.

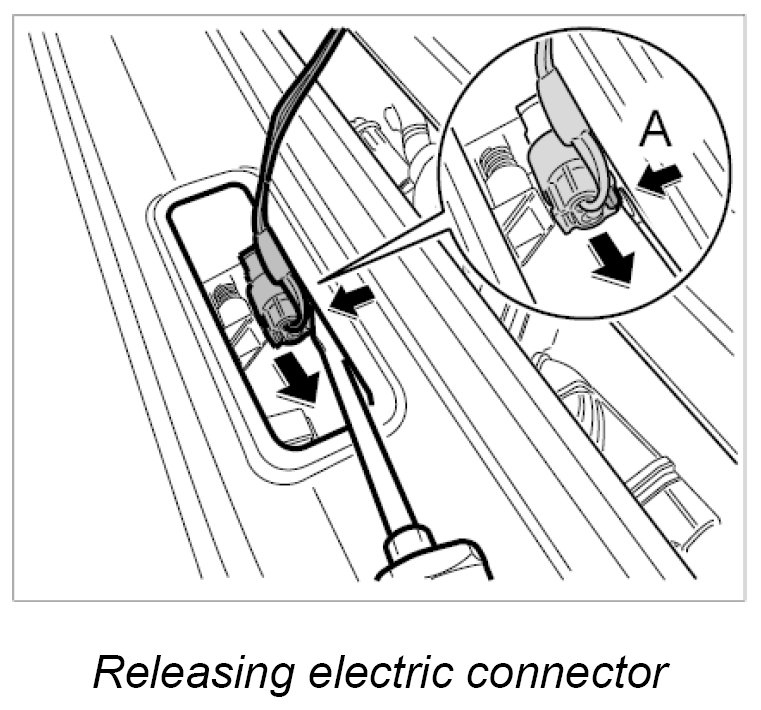

Disconnecting electric plug connection for auxiliary stop light












1. Insert a screwdriver from the side and release the locking tab -Arrow A- and pull off the connector.

Installing rear centre panel

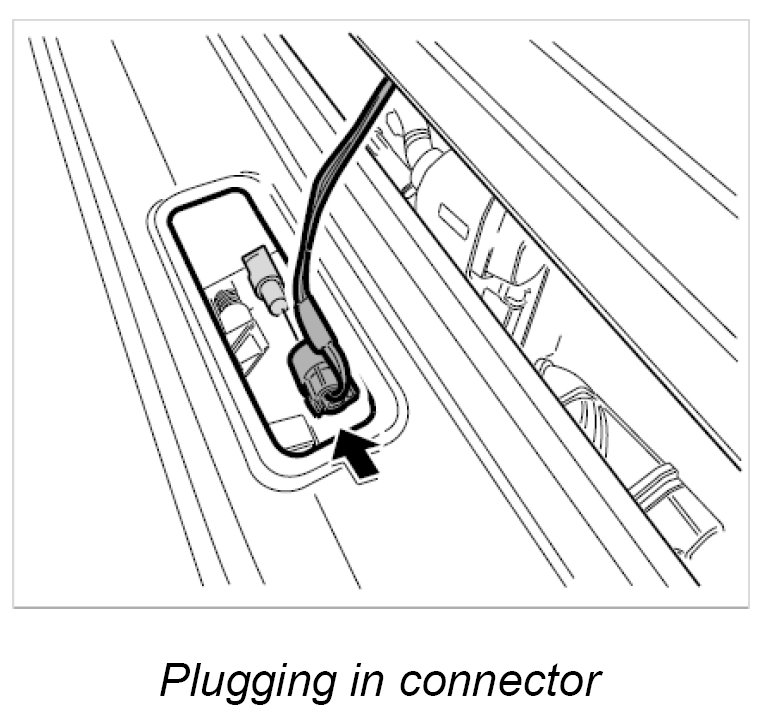

Locking electric plug connection for auxiliary stop light












1. Push in electric plug connection -arrow- until it engages audibly.

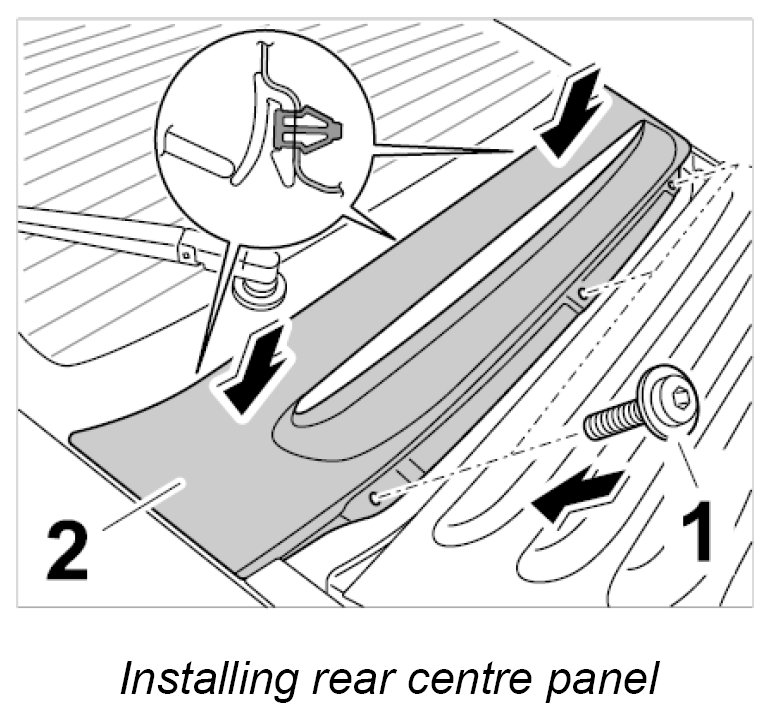

Installing rear centre panel

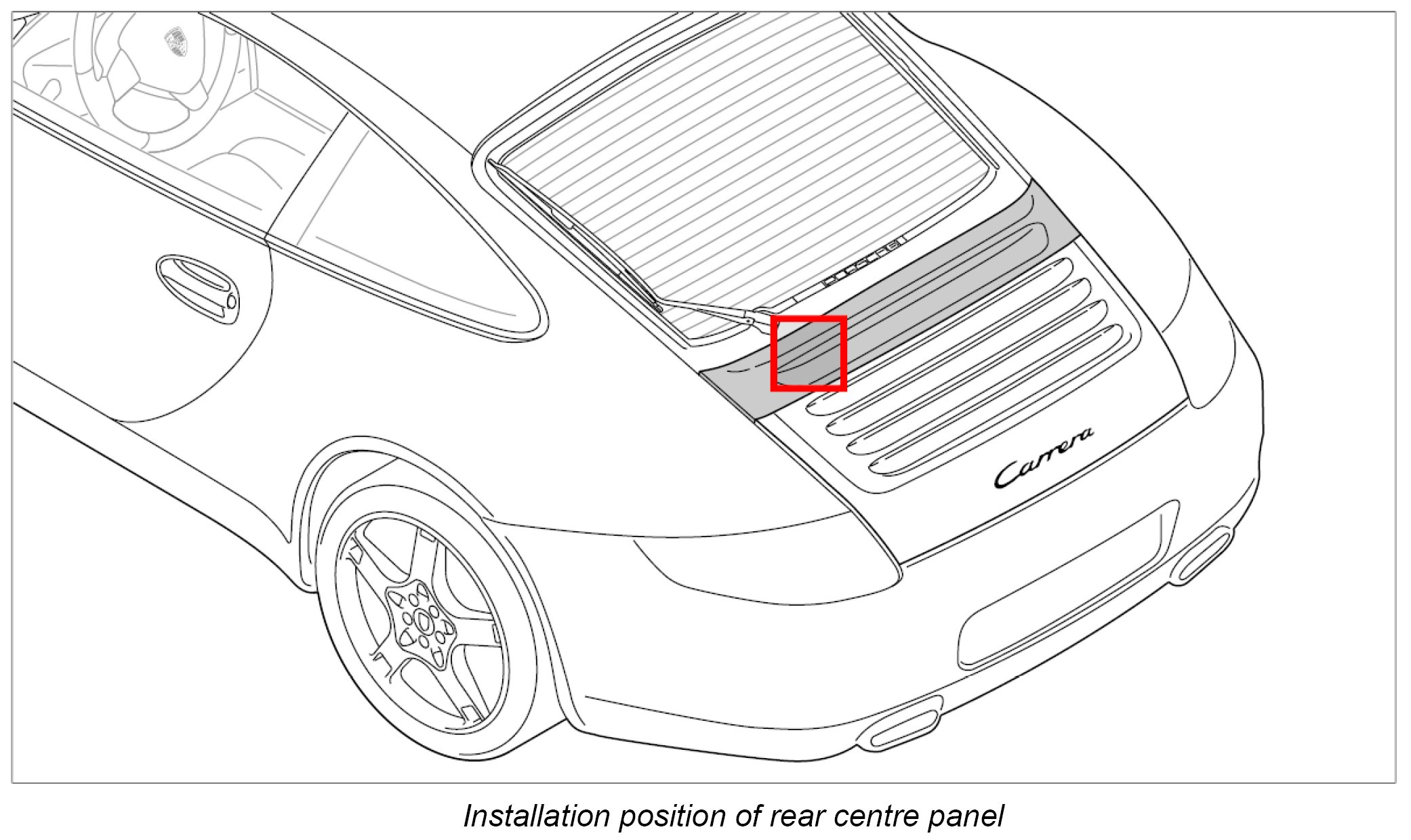

INFORMATION: Observe installation position of seal for rear centre panel to rear window.







1. Position rear centre panel -2- .
2. By shifting the contours in relation to the side panel and rear lid, adjust the gap dimensions as required and tighten with the fastening screws -1- . Tightening torque - Tightening torque: 7.5 ftlb.
3. Retract rear spoiler.

Fastening inner rear centre panel












1. Press in seal -2- and tighten fastening nut -1- . Tightening torque - Tightening torque: 7.5 ftlb.

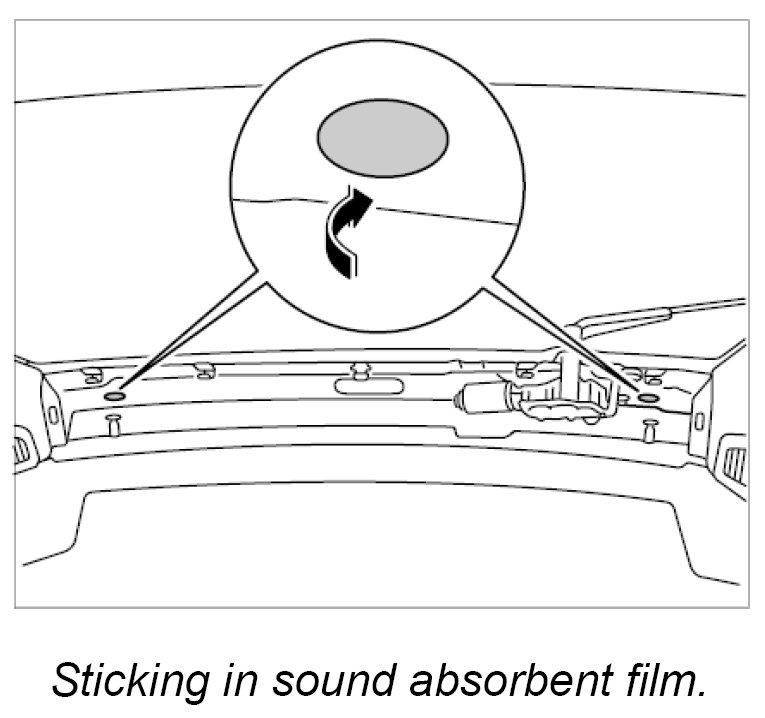

2. Stick in sound absorbent film.

Subsequent work
Install rear roof trim panel.
