Removing and Installing Cover For Front Underbody

519219 Removing And Installing Cover For Front Underbody






Preliminary work
Raise the vehicle.

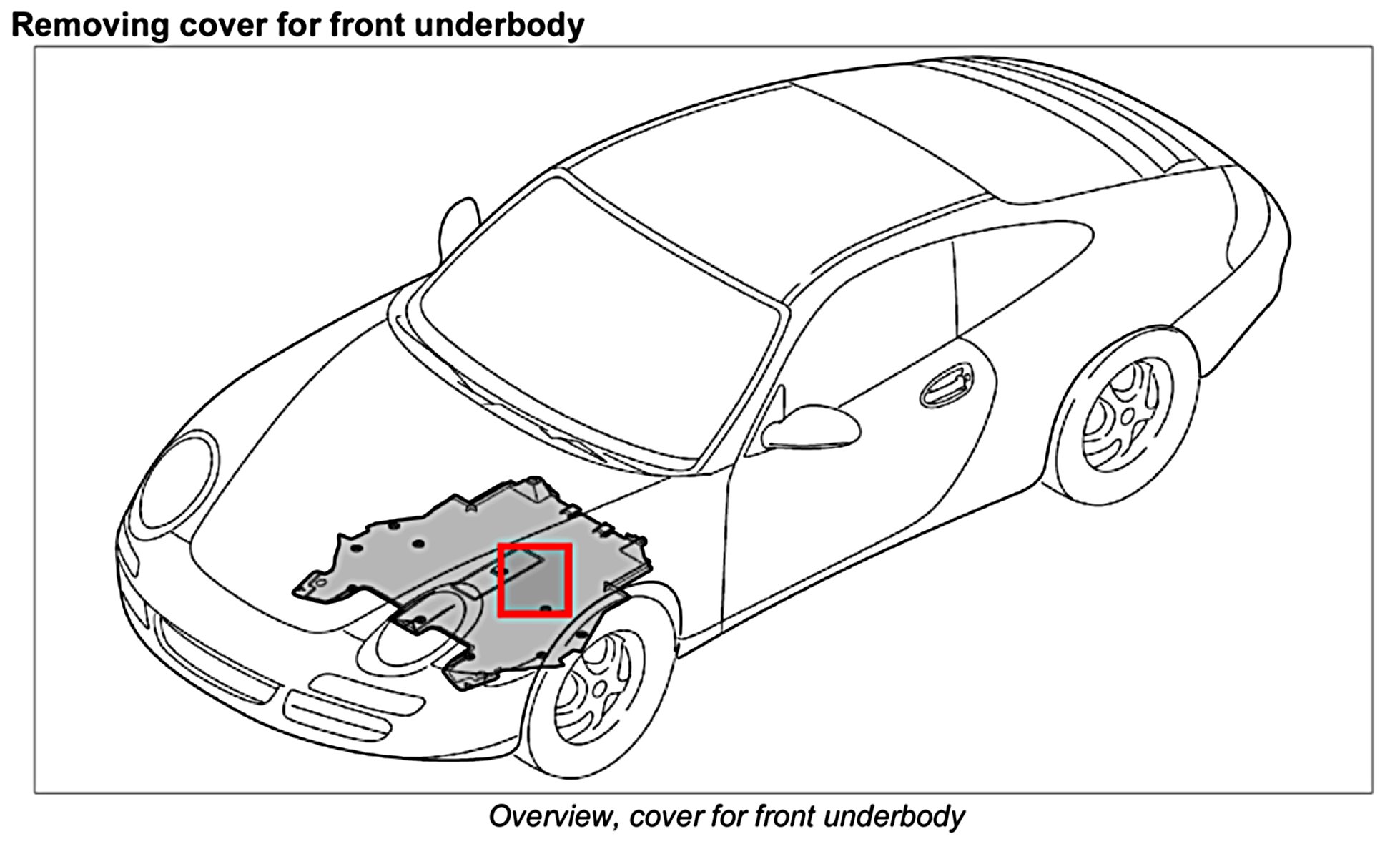

Removing cover for front underbody






NOTE: Fastening nuts cannot be used again following removal.

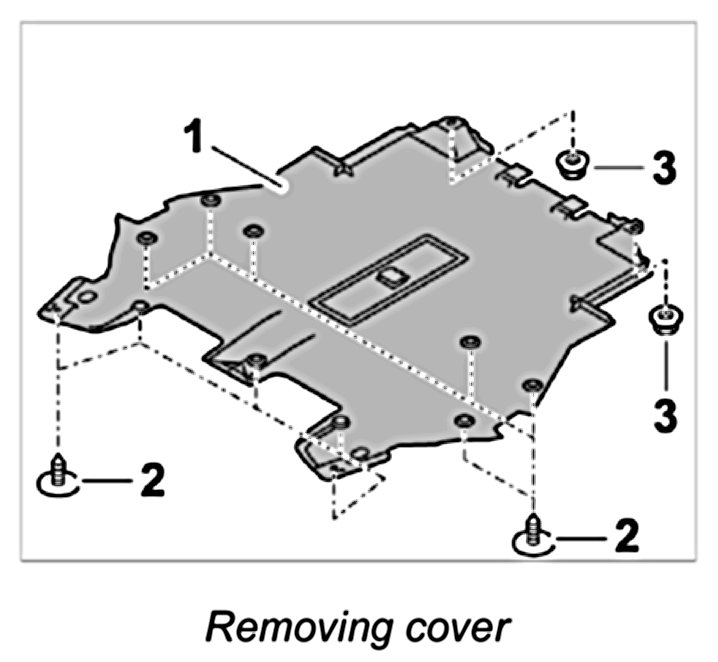

1. Unscrew fastening screws -2- and fastening nuts -3-.






2. Pull cover for front underbody -1- out of the overlap.

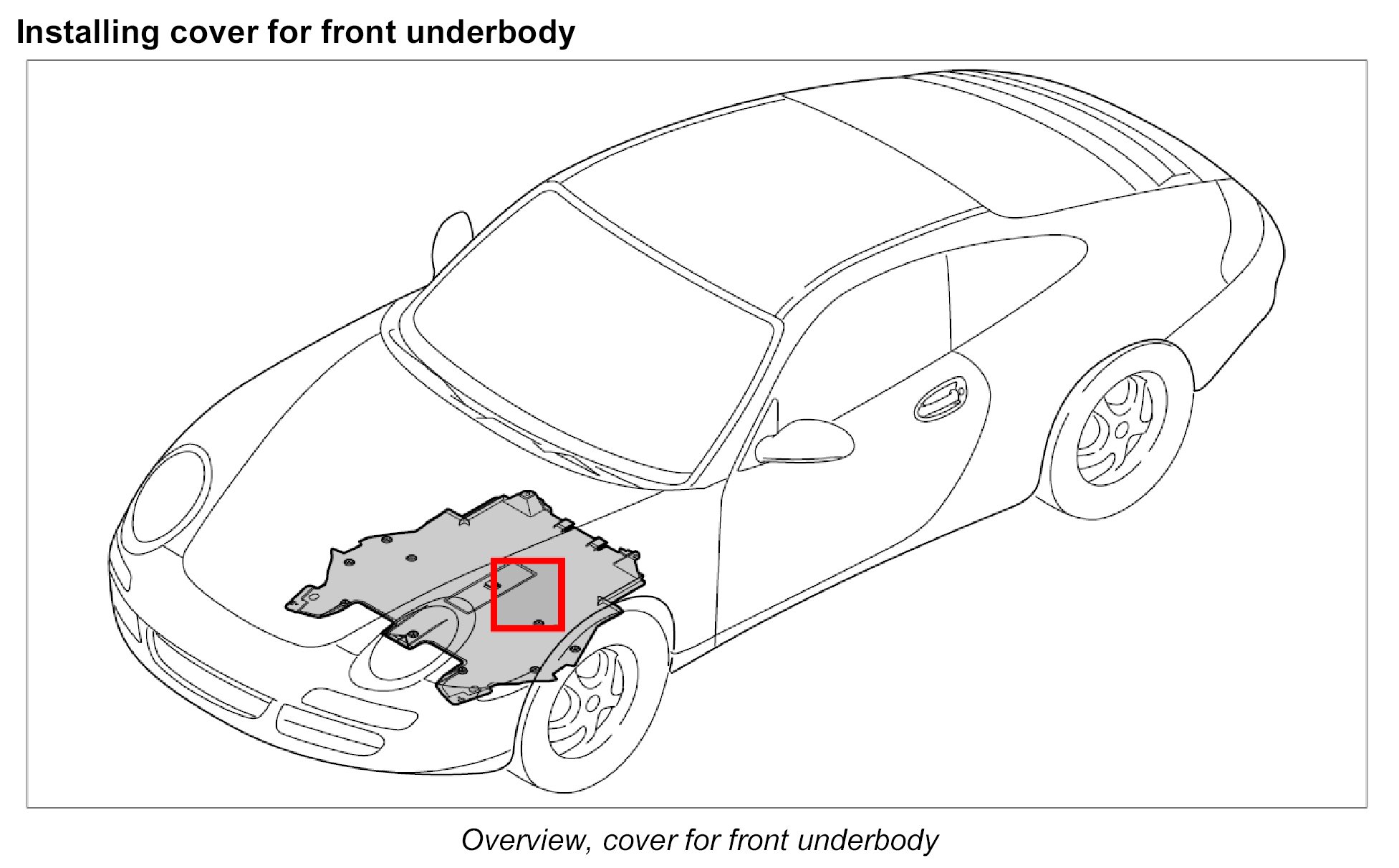

Installing cover for front underbody






NOTE: When sliding in the underbody trim panel, make sure the overlap is correct.

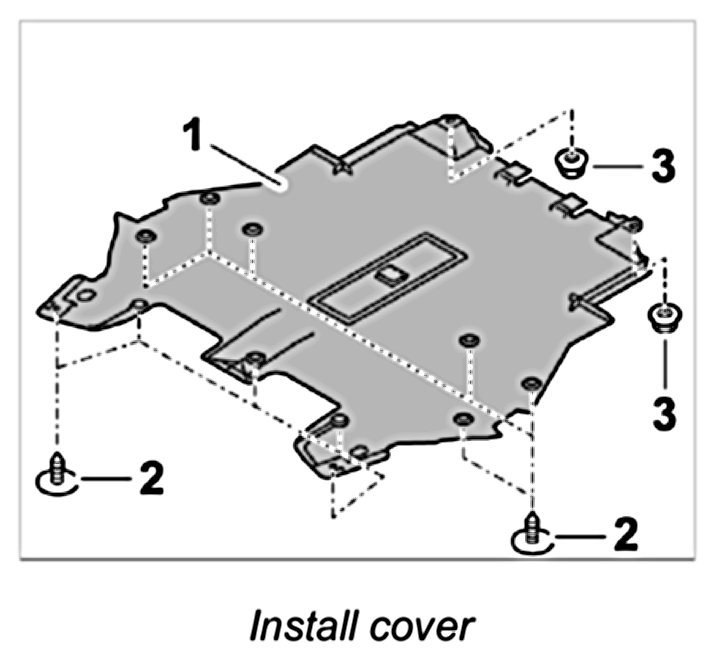

1. Insert cover for front underbody -1-.






2. Tighten fastening screws -2-.

Tightening torque: 1.5 ftlb.

3. Tighten fastening nuts -3-.

Tightening torque: 0.5 ftlb.

Subsequent work
Lower the vehicle.
