Removing and Installing Cover For Rear Underbody

Removing And Installing Cover For Rear Underbody

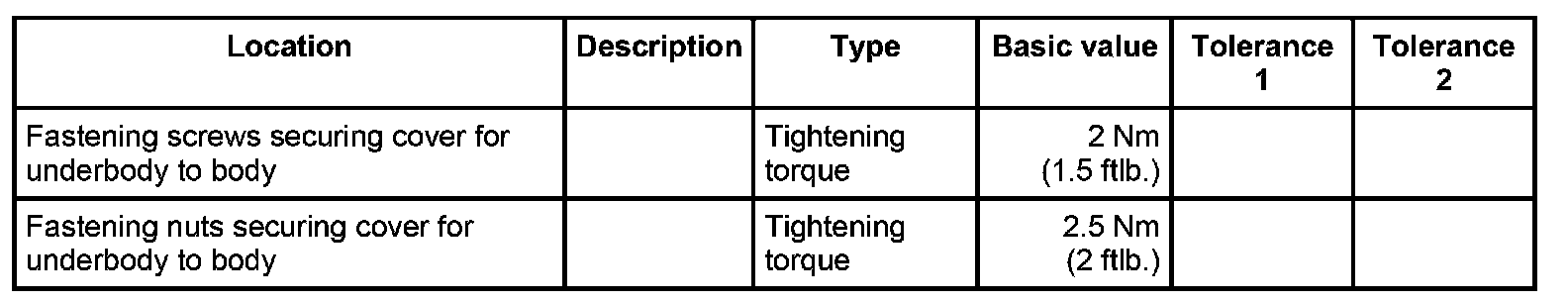

Technical values







Preliminary work
Raise the vehicle.

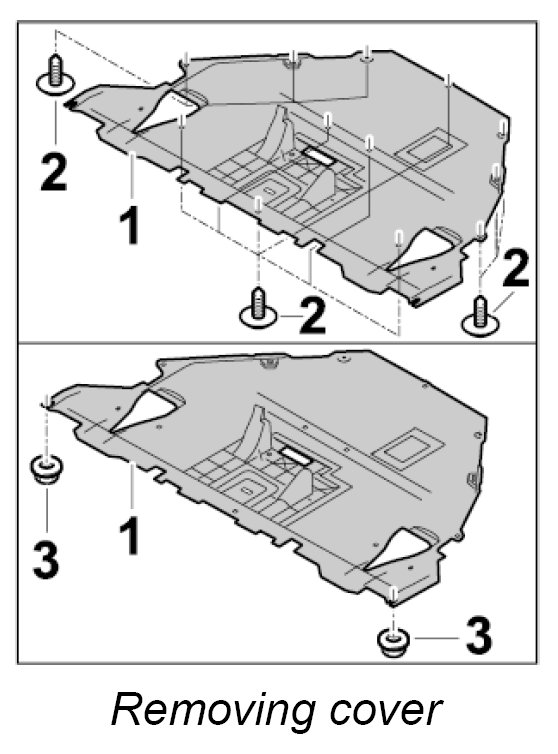

Removing cover for rear underbody







INFORMATION: Fastening nuts cannot be used again following removal.







1. Unscrew fastening screws -2- and fastening nuts -3- .
2. Remove cover for rear underbody -1- .

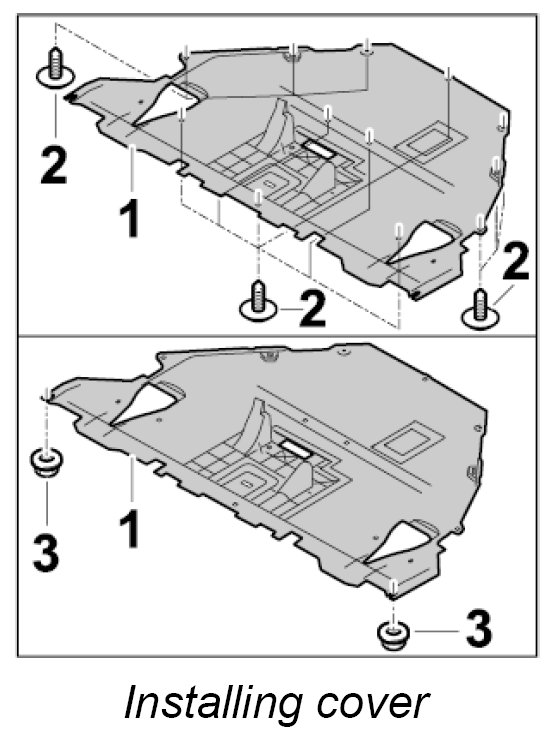

Installing cover for rear underbody

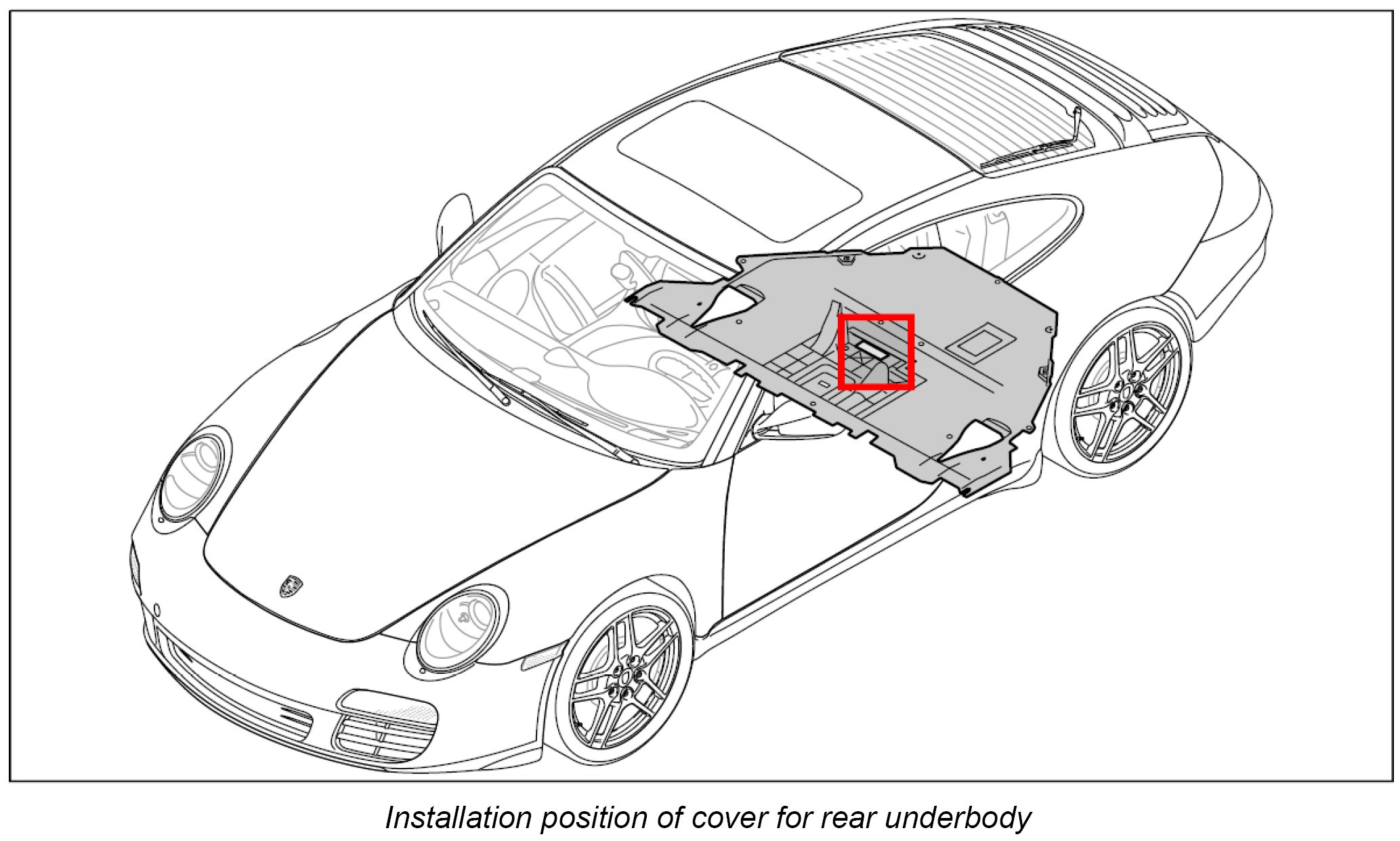

INFORMATION: When sliding in the underbody cover, make sure the overlap is correct.







1. Insert cover for rear underbody -1- .
2. Tighten fastening screws -2- and fastening nuts -3- . - Tightening torque: 2 Nm (1.5 ftlb.) - Tightening torque: 2.5 Nm (2 ftlb.)

Subsequent work

Reworking

Lower the vehicle.
