Boost Solenoid: Service and Repair

Solenoid valve

To remove

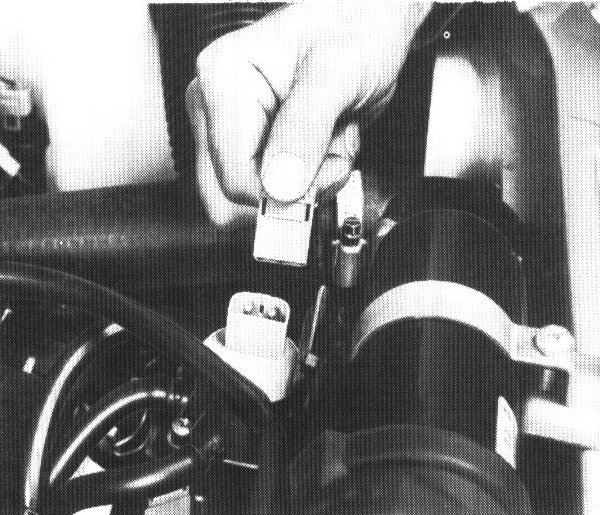

1. Remove the electrical connector from the solenoid.

2. Loosen the hose clips and remove the rubber hoses from the valve connections.

3. Remove the screws holding the solenoid valve on the bracket.

To refit

1. Position the solenoid valve on the bracket.

2. Refit the screws.

3. Connect the hoses to their respective valve connections, refit the hose clips.

4. Reconnect the wiring to the solenoid terminals.
