Solar Sensor: Service and Repair

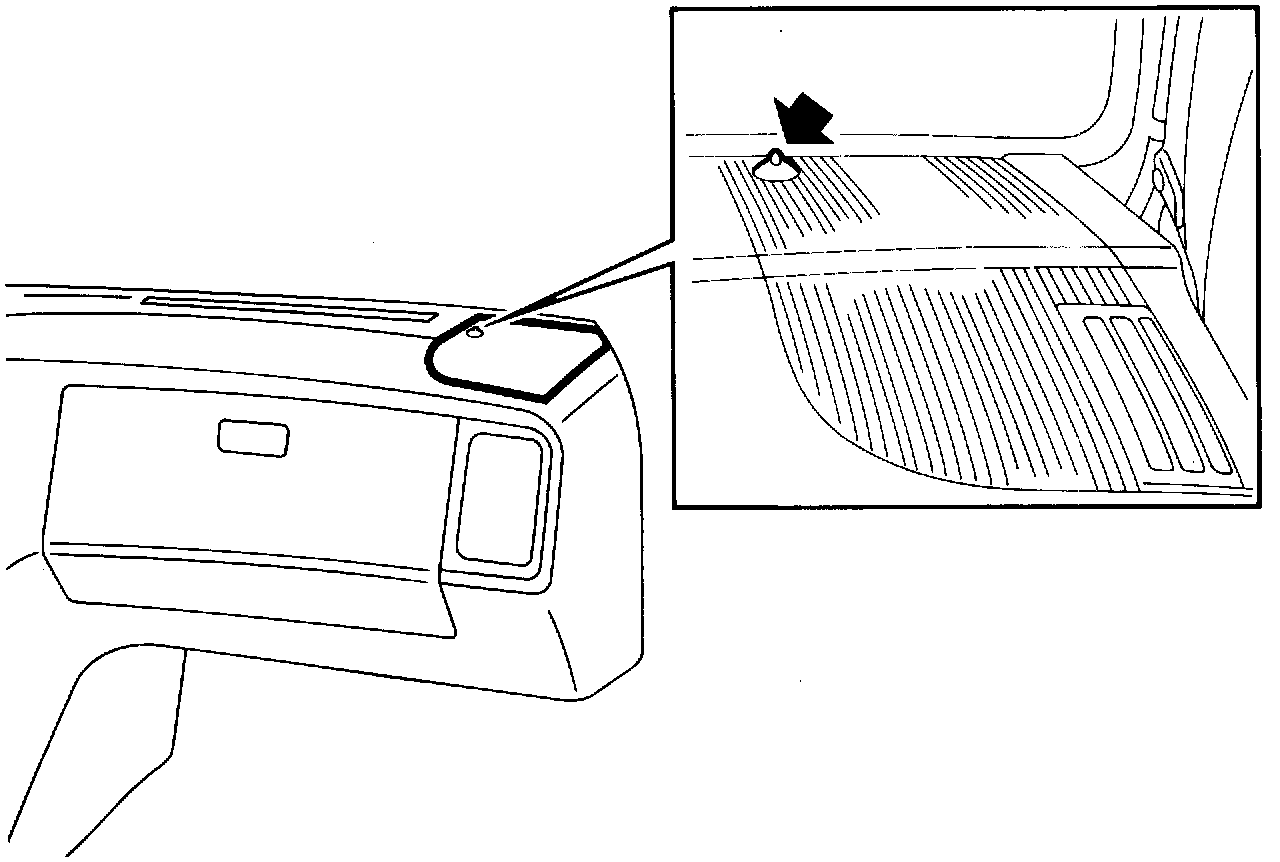

NOTE: During year model 1986, the solar sensor was removed from the left-hand side to the right-hand side.

To Remove
1 Remove the door trim seal from the A pillar and remove A pillar trim.
2 Remove the loudspeaker grille.
3 Unplug the connector. Change the solar sensor The solar sensor is attached with double-sided adhesive tape. Clean the attaching surfaces before installation the new solar sensor. If the car has loudspeakers these must first be removed in order to gain access to the connector.
During year model 1986, the solar sensor was removed from the left-hand side to the right-hand side.
