Replacement of Windscreen Wiper Assembly
To Remove1 Disconnect the negative battery cable.
Important :
Do not disconnect the battery cable while the engine is running as this could seriously damage the generator (alternator).

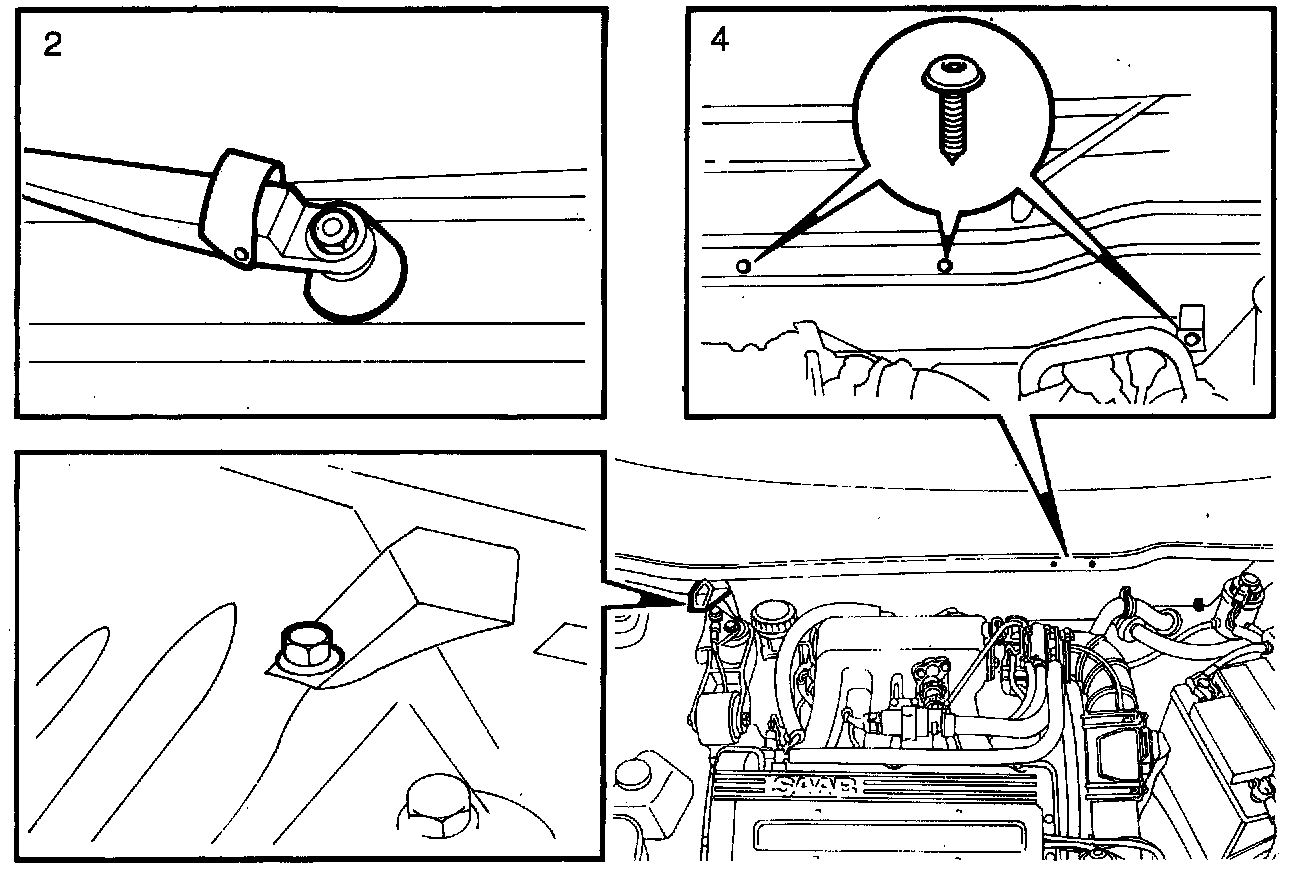

2 Raise the covers on the wiper arms, undo the nuts and remove the wiper arms.
3 Remove the rubber covers.
4 Remove the four screws in the bulkhead partition.
5 Lift out the bulkhead partition.
6 Unplug the wiper motor connectors.

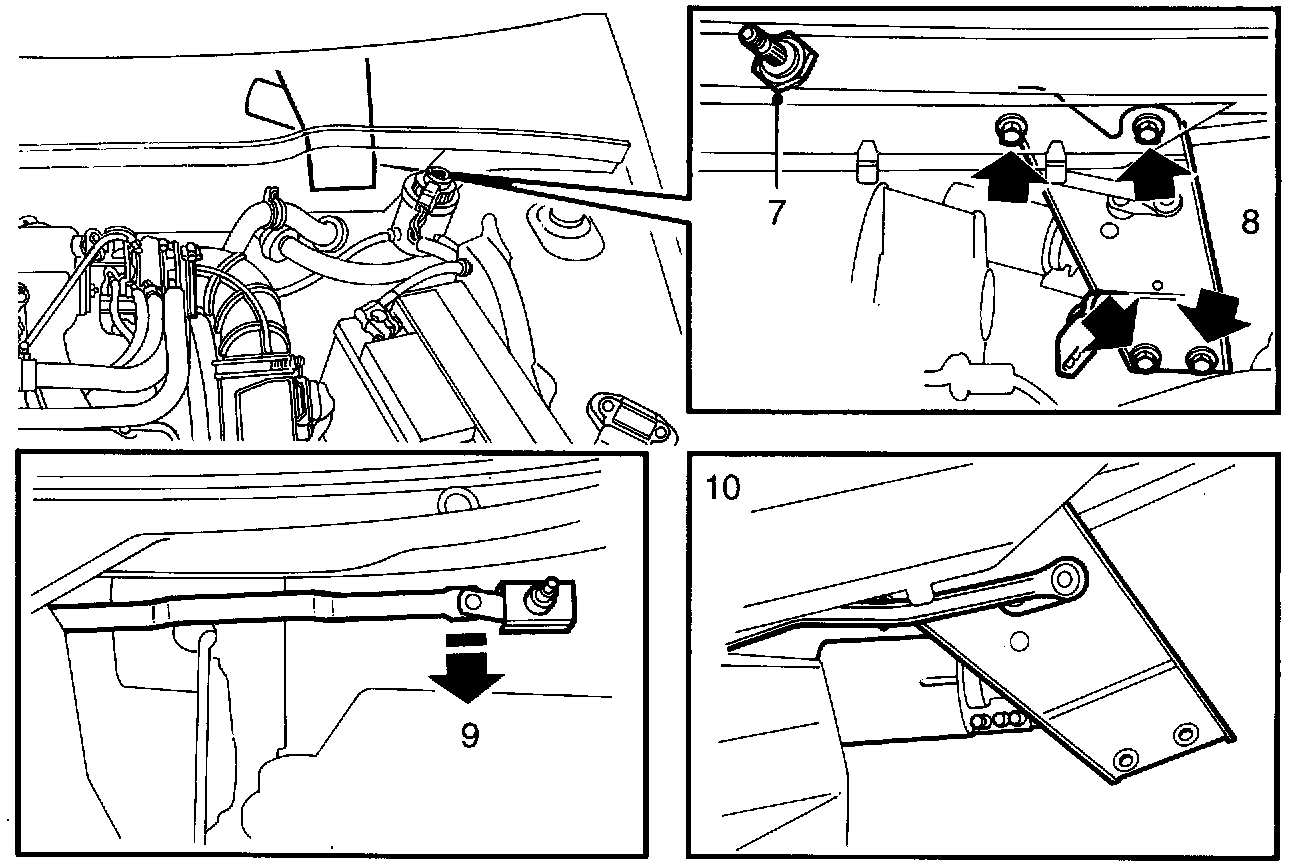

7 Undo the wiper spindle retaining nuts.
8 Remove the four bolts se6unng the wiper motor mounting bracket.
9 Press down and pull forward the driving arm for the left-hand wiper.
10 Lift out the wiper motor complete with bracket and driving arms.
This will be facilitated if the cables under the wiper motor mounting plate are held out of the way while the wiper motor is withdrawn.
To Install
Install in reverse order.
