Alarm Module: Locations

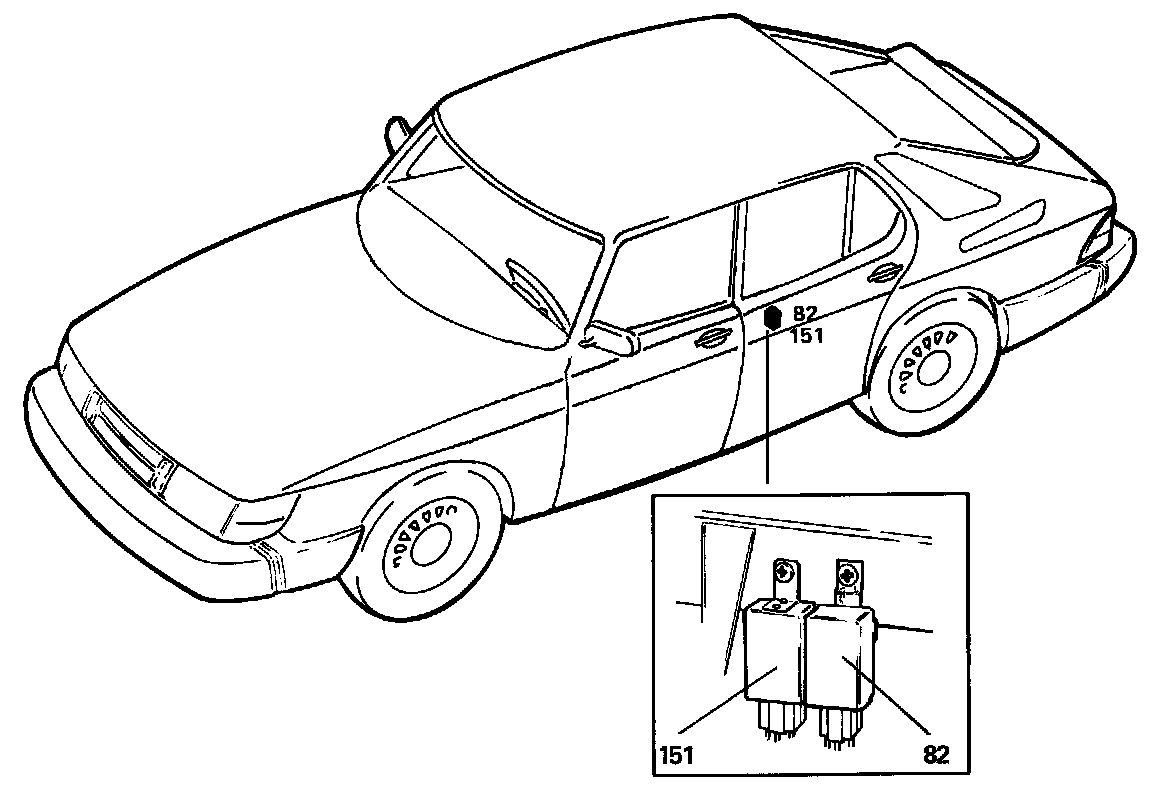

Hard Top:
LEGEND 82 Seat belt / ignition switch warning relay.
151 Time-delay relay for interior lighting.
LOCATION Under the back seat, on the left side.

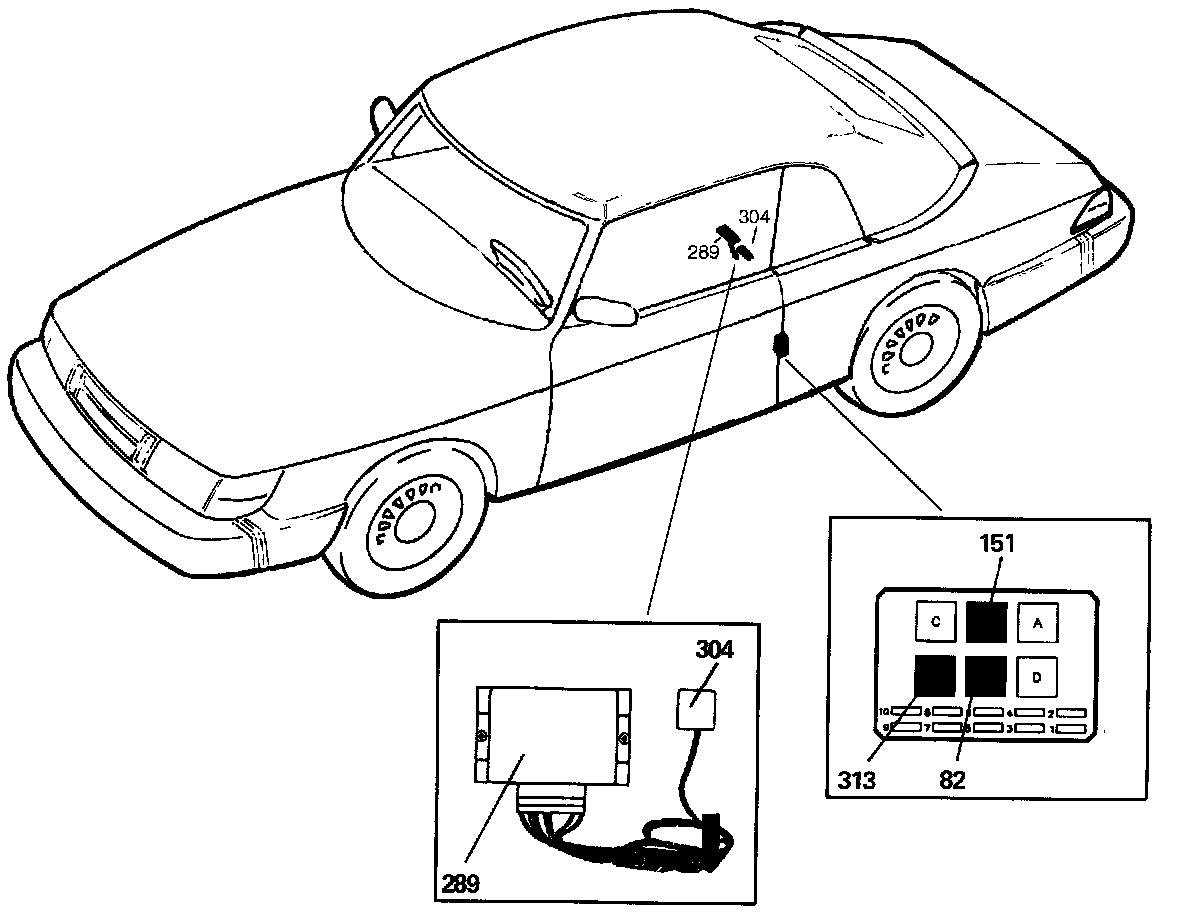

Convertible:
LEGEND 82 Seat belt / ignition switch warning relay.
151 Time-delay relay for interior lighting.
289 Burgler alarm control unit.
304 Movement detector.
313 Burgler alarm relay.
