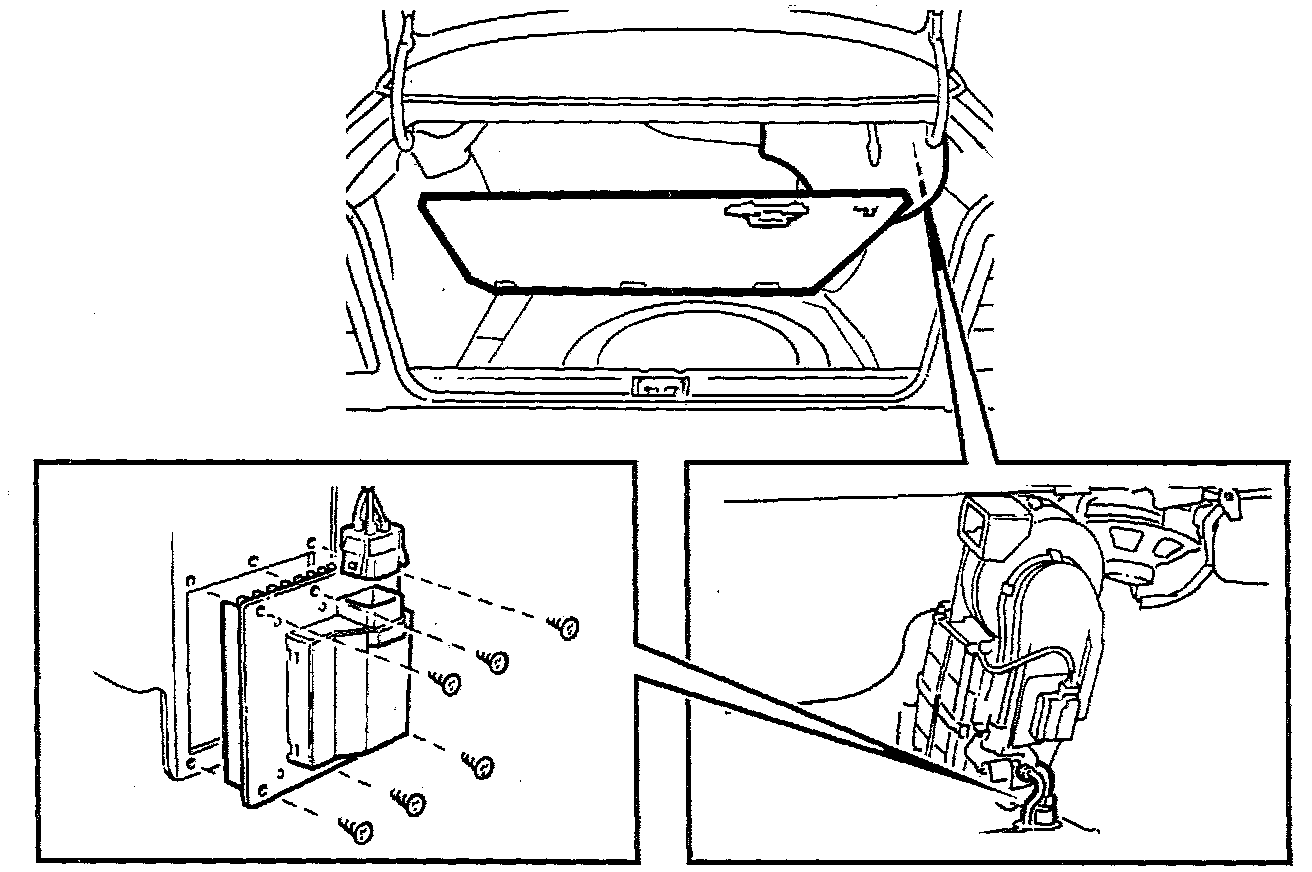

Rear ACC Fan Control Module, Changing
Removal:
1.
Remove the luggage compartment floor.
2.
Remove the trim from around the evaporator casing.
3.
Unplug connector.
4.
Unscrew control module.
Installation:
1.
Screw control module onto evaporator housing.
2.
Plug in the connector.
3.
Refit the trim around the evaporator housing.
4.
Refit the luggage compartment floor.
