Control Module

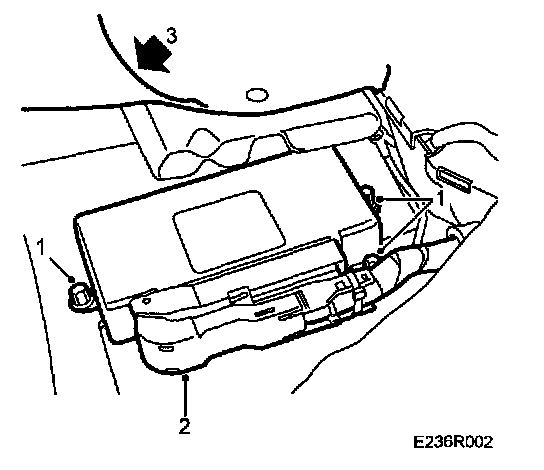

To remove
1 Undo and lift out the left-hand front seat.
2 Lift the carpet and fold aside.
3 Unplug the connector to the module.
4 Remove 3 plastic nuts and lift out the module.

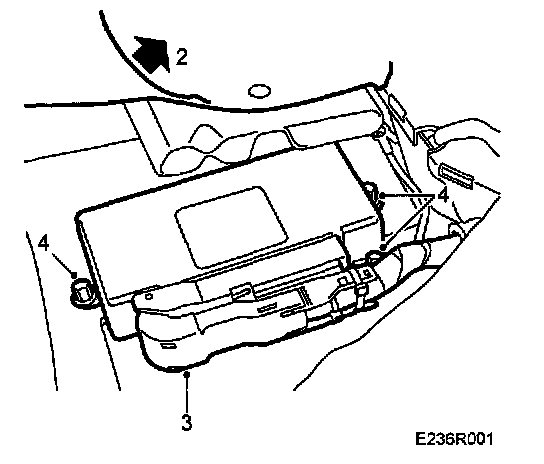

To fit
1 Position the module and fasten it with the 3 plastic nuts.
2 Plug in the connector on the module.
3 Replace the carpet.
4 Refit the front seat
5 Once the TWICE control module has been changed, it must be programmed in the car.
See Immobilization. See Powertrain Management/Computers and Control Systems/Information Bus/Testing and Inspection/Procedures/Fault Diagnosis, General/
See Programming. See Powertrain Management/Computers and Control Systems/Information Bus/Testing and Inspection/Procedures/Fault Diagnosis, General/
See Adjustment. See Powertrain Management/Computers and Control Systems/Information Bus/Testing and Inspection/Procedures/Fault Diagnosis, General/
