Tech 2 Menu, Values, Activate, Immob., Adj, Program, Sys. Info




Tech 2 menu structure

Diagnostic Trouble Codes (DTC)

Read Values/Activate

Immobilizer

Adjustment

Programming

System Information

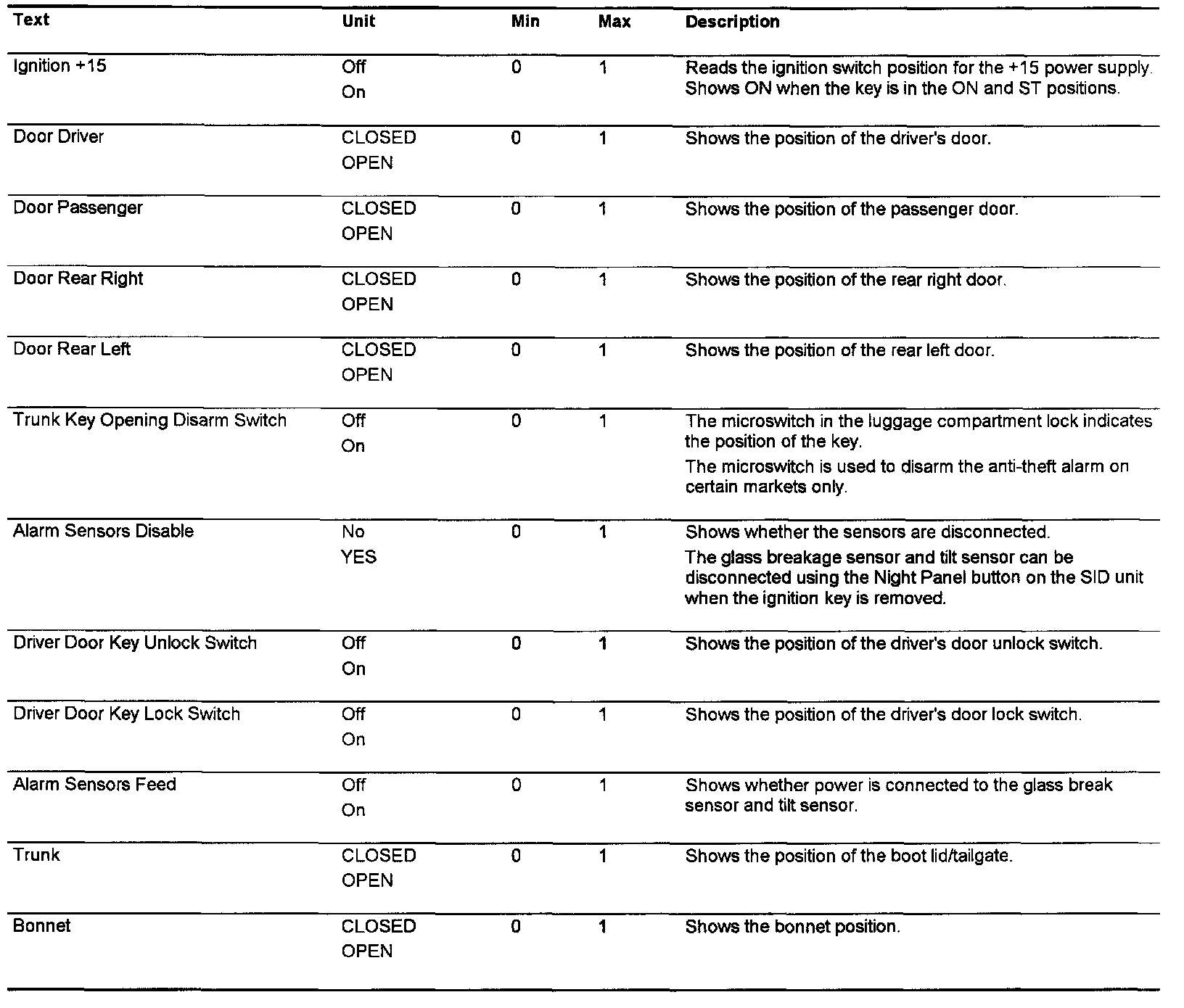

Menu "Read Values"

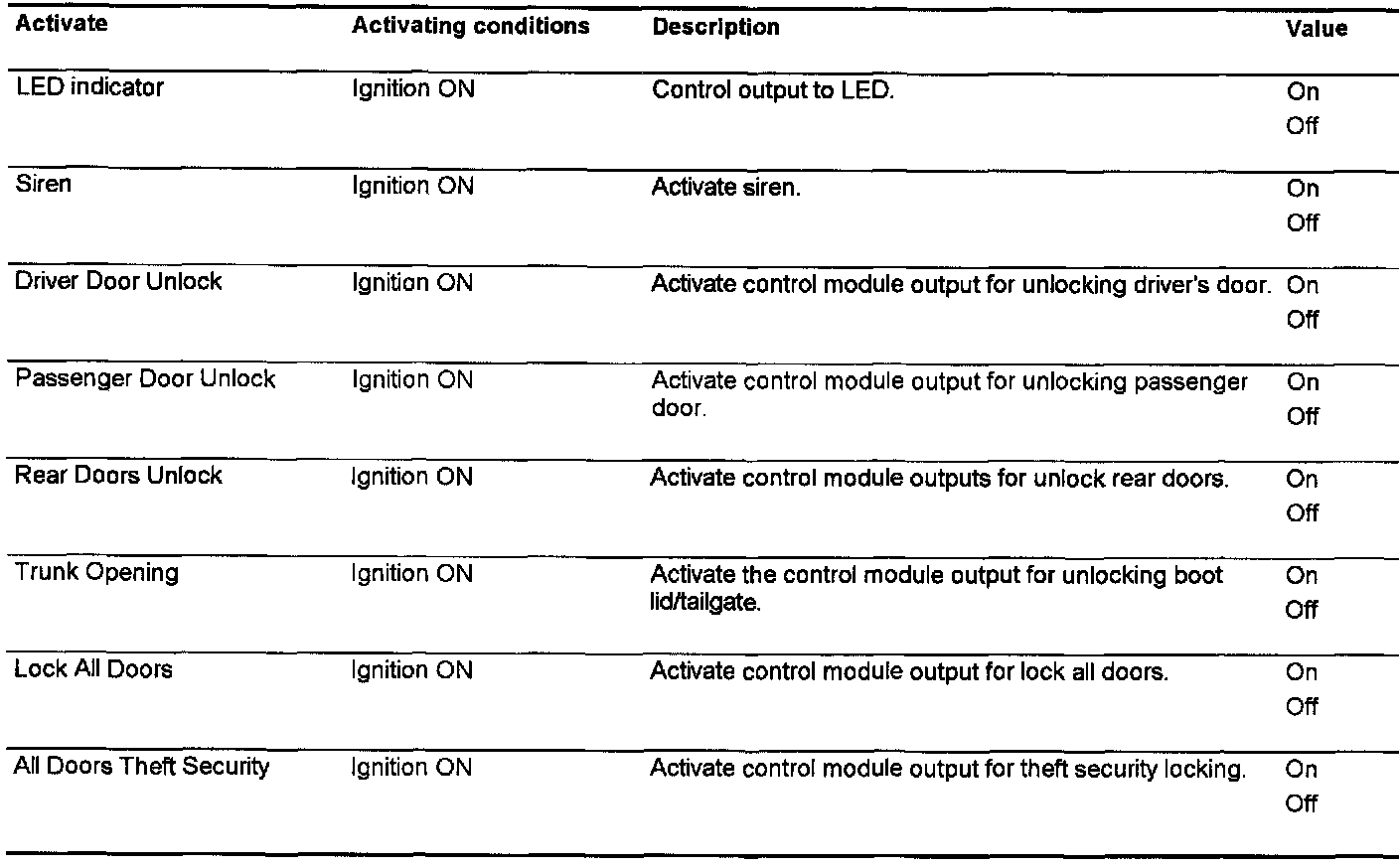

Menu "Activate"







Menu "Immobilization"

Function Description
Immobilization Combined programming of TWICE, MIU, and engine management system This programming must be carried out if any of these control modules are changed

Menu "Adjustment"

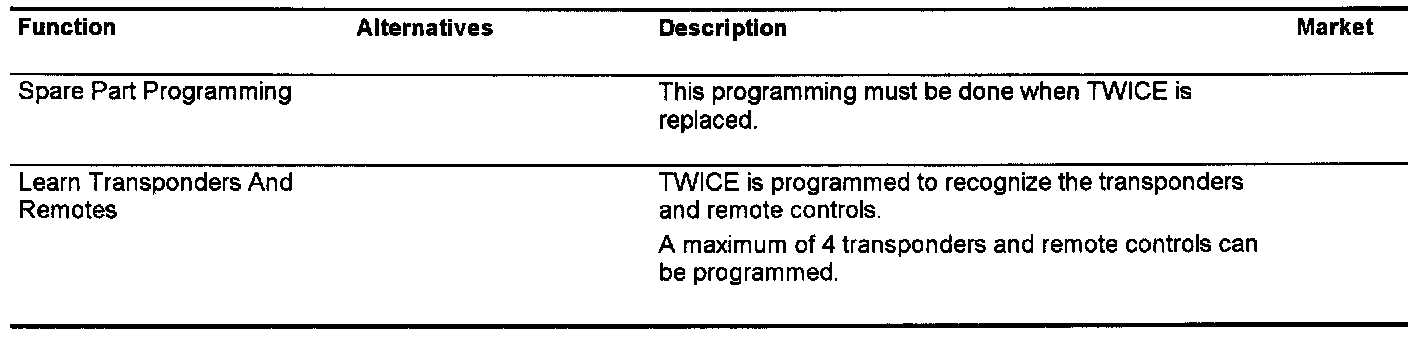

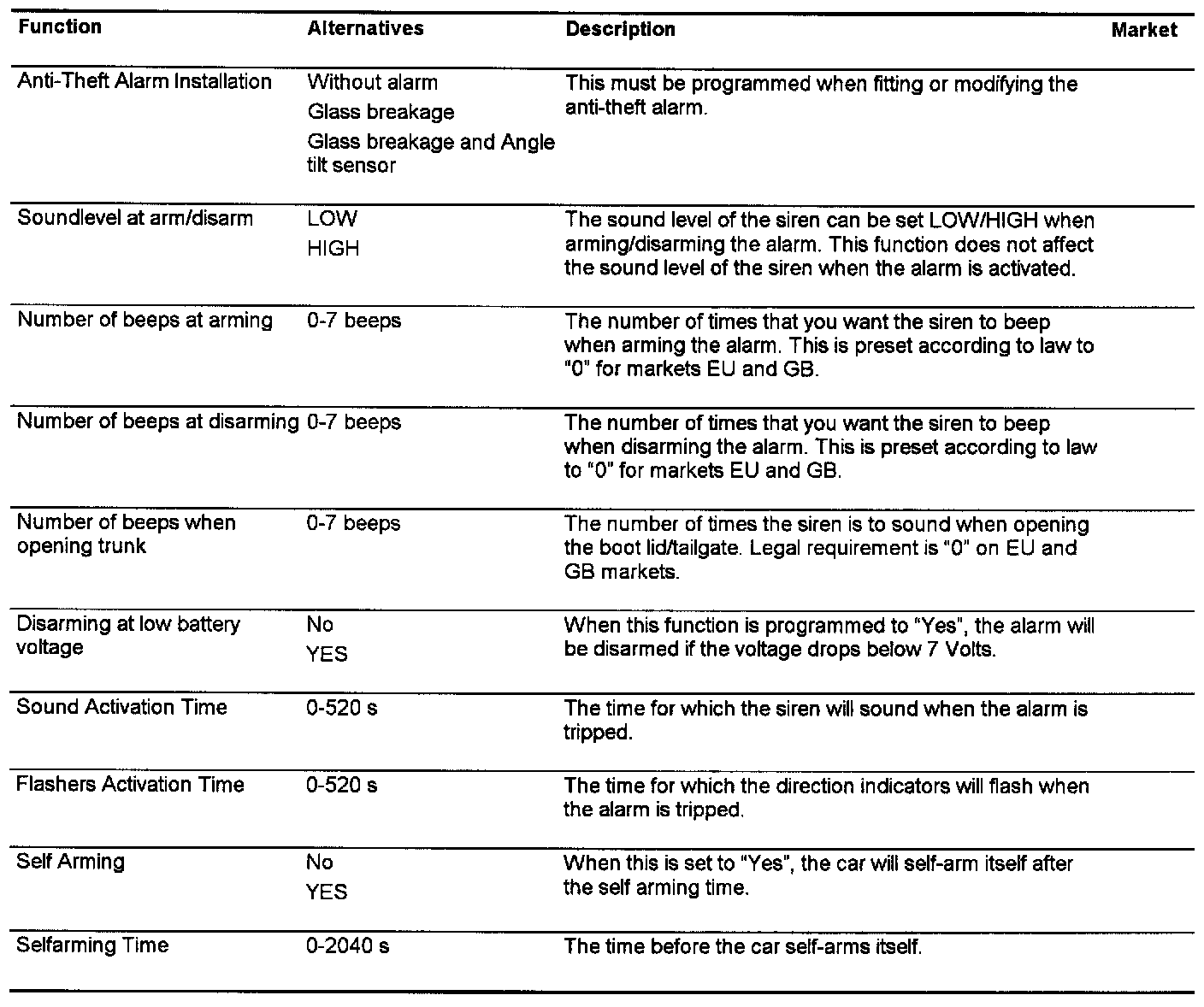

Menu "Programming"







Menu "System information"

Text Function
SAAB Part Number: Shows the SAAB 7-digit part number.
Hardware Number: Shows the hardware number of the control module.
Hardware Version Number: Shows the control module version.
Software Number: Shows the control module software number.
Software Version Number: Shows the control module software version
System Name: Shows the system name.
