Control Module Inputs -1

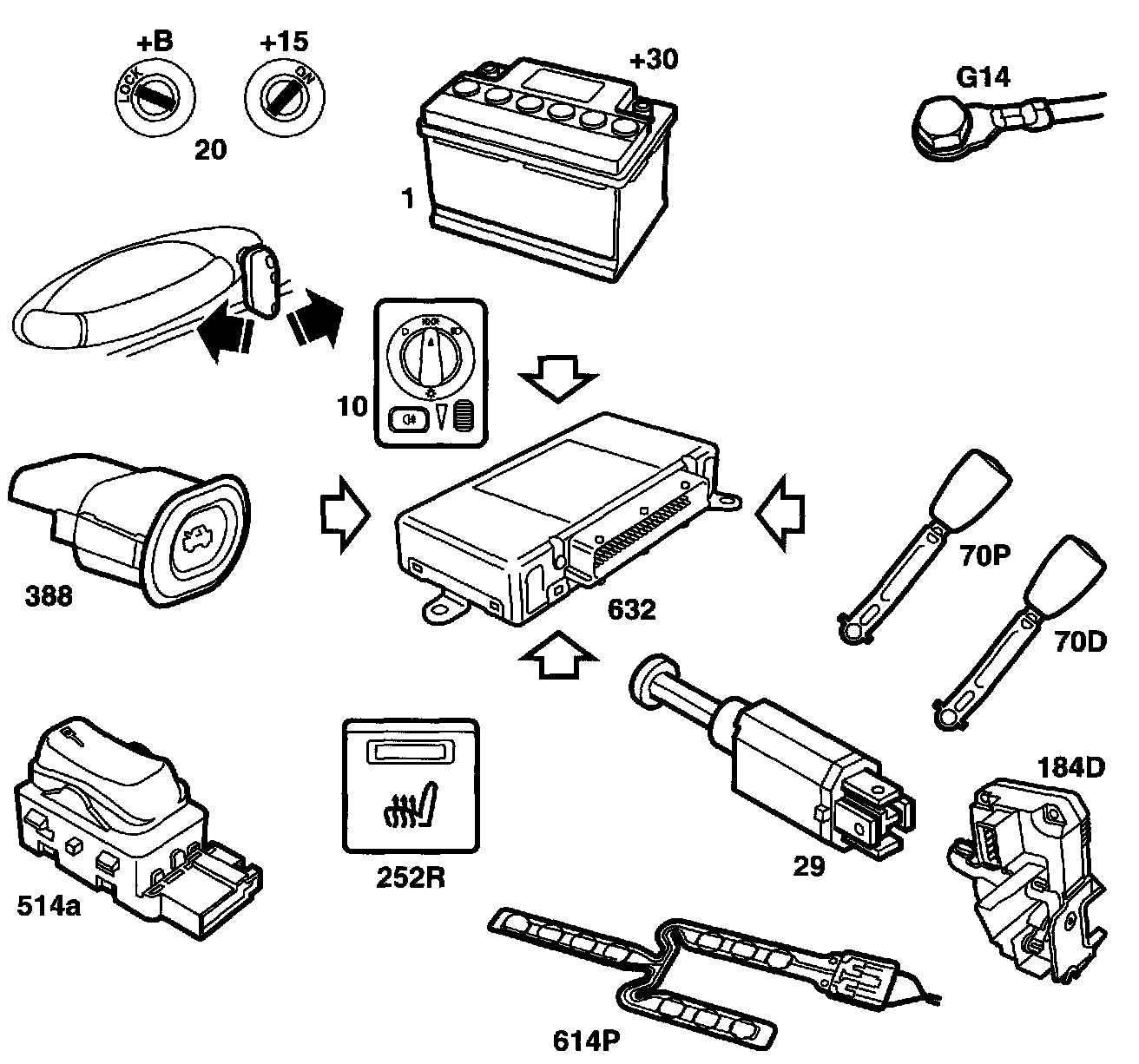

Control Module Inputs

- Power supply +B circuit (20)
- Power supply +15 circuit (20)
- Power supply +30 circuit (1)
- Power ground (G14)
- Signal ground (G14)
- Parking light rear left, power supply from switch (10)
- Parking light right rear, power supply from switch (10)
- Brake lights, power supply (29)
- Seat belt switch, driver's side (70D)
- Seat belt switch, passenger side (70P)
- Seat sensor, front passenger seat (614P)
- Heated rear seat, request (252R)
- Central locking, switch in passenger compartment for lock/unlock (514a)
- Central locking, key switch in driver's door for lock/unlock (184D)
- Central locking, sill SW locking button driver's door (184D)
- Central locking tailgate, switch in driver's door for unlock (388)
- Central locking, power supply (11/22A)
