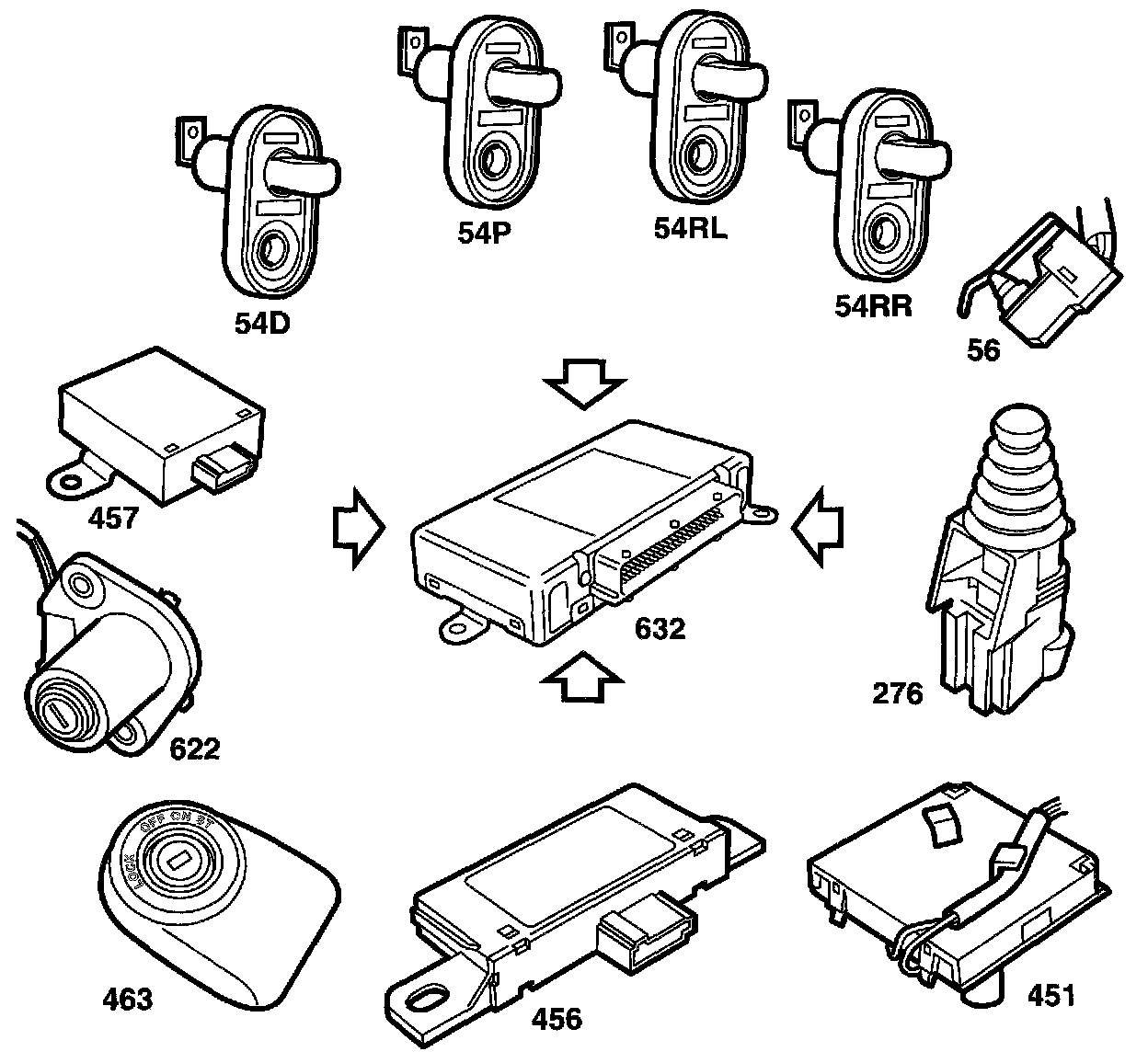

Control Module Inputs -2
Control Module Inputs -
Door switch, driver's door (54D)
-
Door switch, passenger door (54P)
-
Door switch, left rear door (54RL)
-
Door switch, right rear door (54RR)
-
Bonnet switch (276)
-
Luggage compartment switch (56)
-
Glass break sensor (451)
-
Angle sensor (457)
-
Receiver for
remote control (456)
-
Antenna unit, immobilizer (463)
-
Microswitch, luggage compartment lock (622)
