Control Module Outputs, Bus

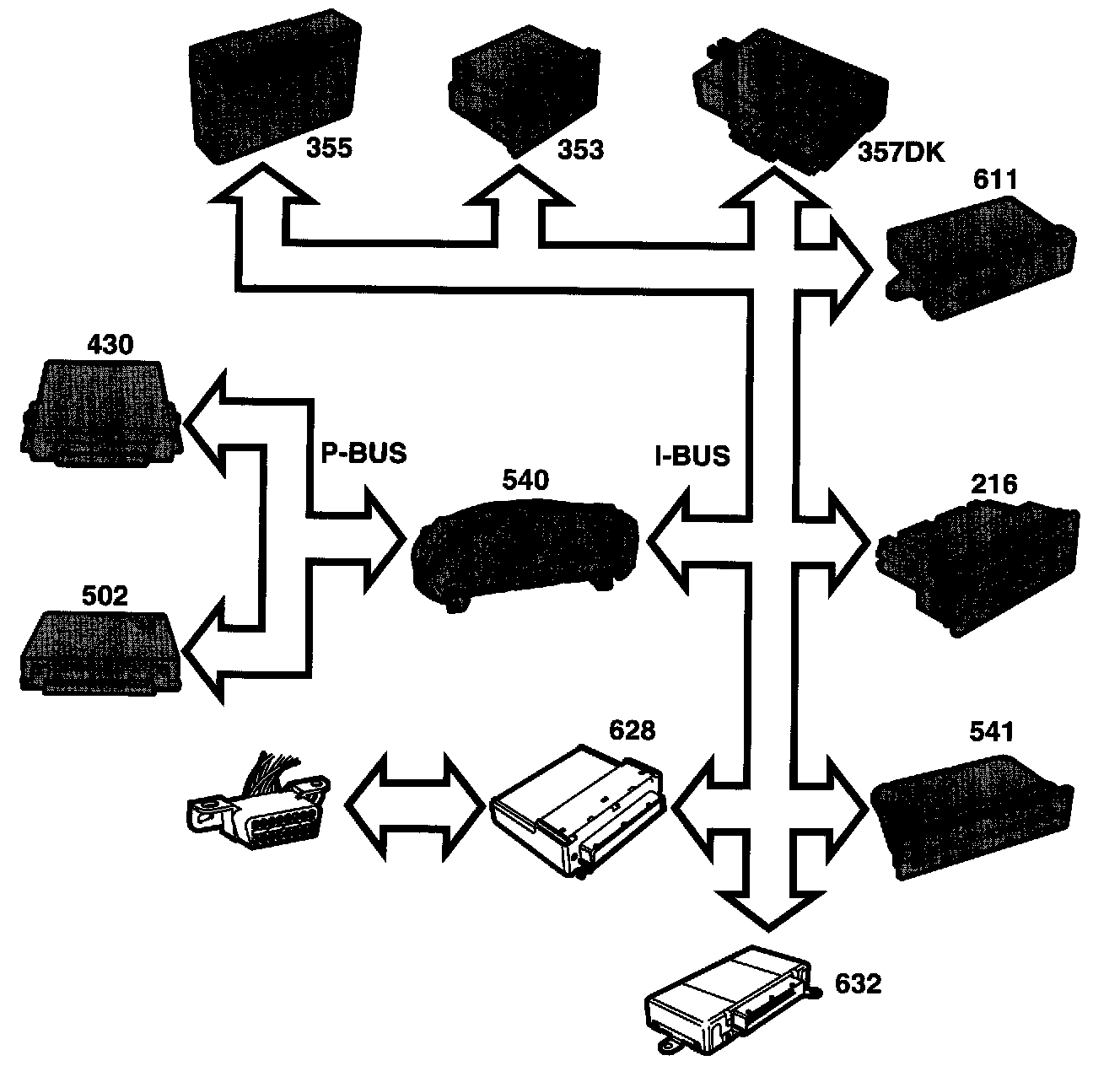

Control Module Outputs, Bus

- Left Rear Light Faulty (yes/no) used by SID (541)
- Right Rear Light Faulty (yes/no) used by SID (541)
- Left Rear Light (on/off) used by DICE (628)
- Right Rear Light (on/off) used by DICE (628)
- Tailgate (open/closed) used by DICE (628), MIU (540)
- Left Rear Door (open/closed) used by DICE (628), MIU (540)
- Right Rear Door (open/closed) used by DICE (628), MIU (540)
- Brake light (on/off) used by Trionic (430), TCM (502)
- Left Brake Light Faulty (yes/no) used by SID (541)
- Right Brake Light Faulty (yes/no) used by SID (541)
- High Level Brake Light Faulty (yes/no) used by SID (541)
- Driver's Door (open/closed) used by DICE (628), MIU (540), PSM (357Dk)
- Immobilizer (on/off) used by Trionic (430)
- Key Correct (on/off) used by Audio system (353), CD changer (355)
- Sound (sound information) used by SID (541)
- Passenger Door (open/closed) used by DICE (628), MIU (540), PSM (357Dk)
- Passenger seat occupied (yes/no) used by ACC (216)
- Steering wheel position (LHD/RHD) used by ACC (216)
- Horn (0: 6: 42 ms) used by SID (541)
- Text message used by SID (541)
- Hazard flashers (on/off) used by DICE (628)
- Central locking (locked/unlocked) used by DICE (628)
- Diagnostic communication

For a more detailed description of the control module input information from the bus. Bus Communication

For a more detailed description of the diagnosis,see Computers and Control Systems.
