Control Module Outputs

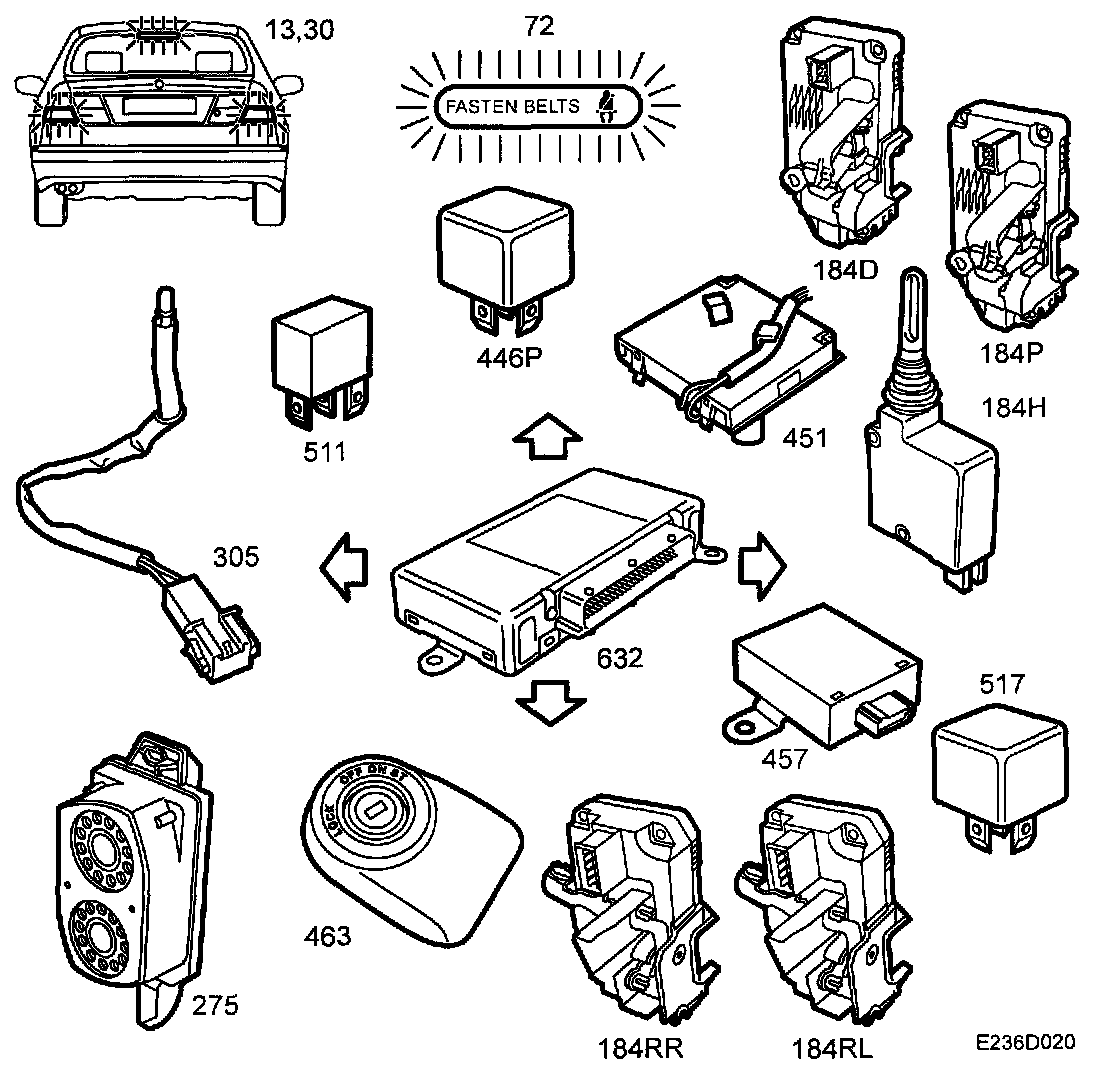

Control Module Outputs

- Brake light, left (30RL)
- Brake light, right (30RR)
- Brake light, high level (30RC)
- Parking light, left rear (13RL)
- Parking light, right rear (13RR)
- Seat belt warning lamp, ground (72)
- Heated rear seat, relay ground (511)
- Electrically adjustable passenger seat, relay ground (446P)
- Central locking motor driver's door, lock/unlock (184D)
- Central locking motor passenger door, lock/ unlock (184P)
- Central locking motor rear doors, lock/unlock (184RL, RR)
- Motor, central locking, tailgate control voltage (184H)
- Antenna unit, immobiliser, power supply (463)
- Starting relay, immobiliser (517)
- Glass break sensor, power supply (451)
- Angle sensor, power supply (457)
- LED, anti-theft alarm (305)
- Siren (275)
- Central locking motor driver's door, control voltage for theft security locking (184D)
- Central locking motor passenger door, control voltage for theft security locking (184P)
- Central locking motor rear doors, control voltage for theft security locking (184RR, RL)
