Tech 2 Menu Structure, Read Values, Programming, System Info.




Tech 2 menu structure

Diagnostic Trouble Codes (DTC)

Read Values

Programming

System Information

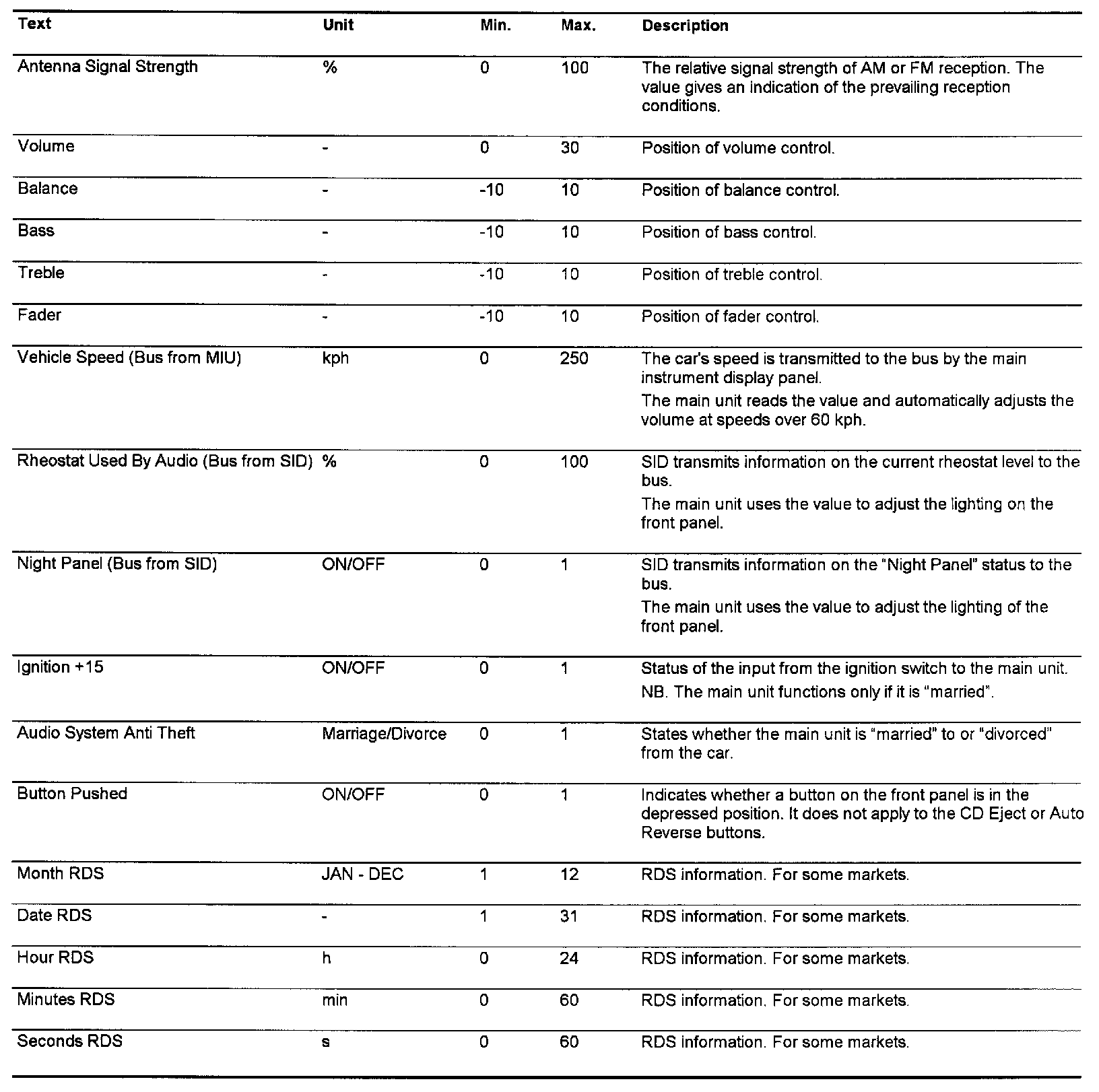

Menu "Read Values"


Menu "Read Values":

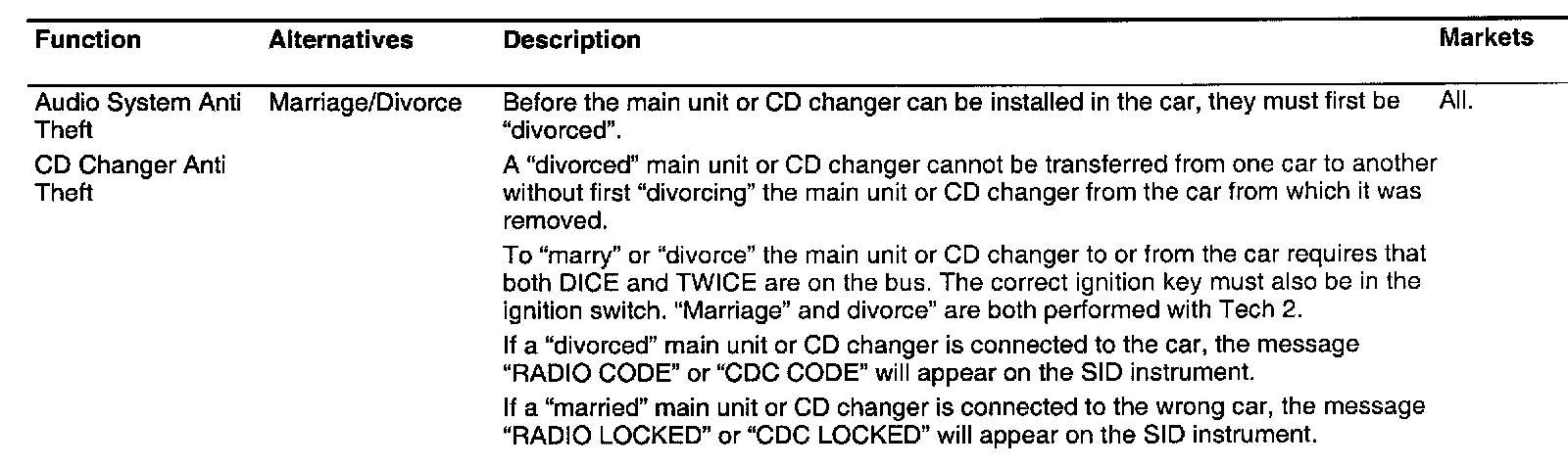

Menu "Programming"


Menu "Programming":






Menu "System Information"

Text Function
SAAB Part Number: Shows the SAAB 7-digit part number of the control module.
Hardware Version Number Shows the hardware version on the control module.
Software Version Number Shows the software version of the control module.
