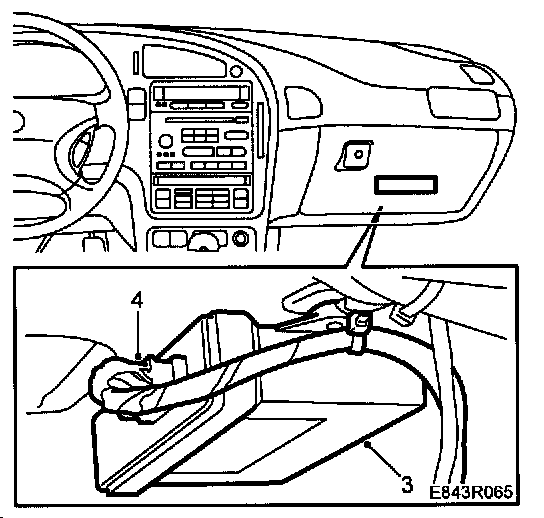

Control Module, PMM
To remove 1
Remove the glove box.
2
Remove the air duct.
3
Unhook the control module from the plastic clip.
4
Unplug the connector.
To fit 1
Plug in the connector.
2
Fit the control module.
3
Refit the air duct.
4
Fit the glove box.
