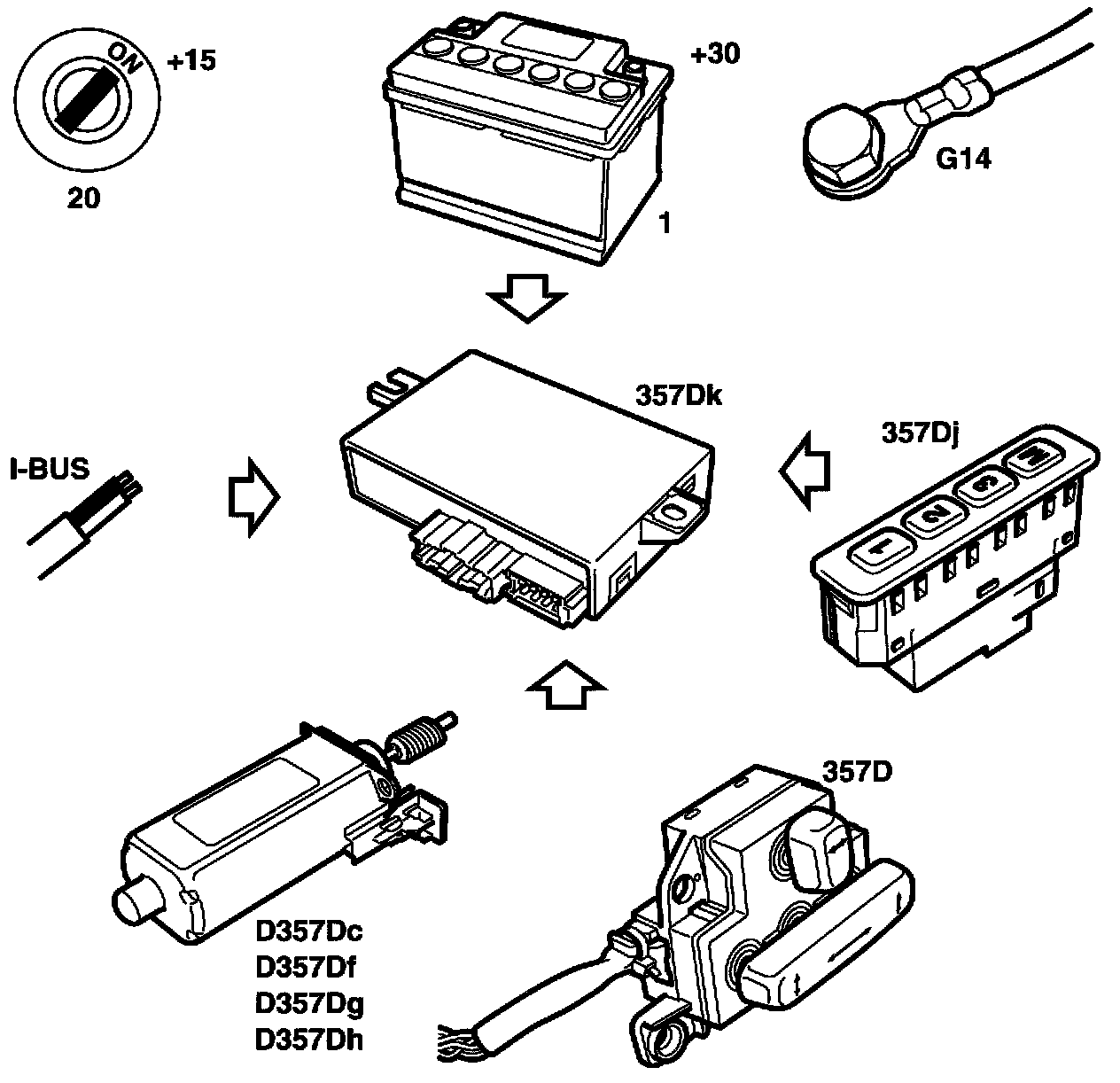

Control Module Inputs

Control Module Inputs

^ Power supply +15 circuit, refer to "PSM Control Module". PSM Control Module
^ Power supply +30 circuit, refer to "PSM Control Module". PSM Control Module
^ Ground, refer to "PSM Control Module". PSM Control Module
^ Memory buttons (357Dj), refer to "Memory Buttons". Memory Buttons
^ Switch (367D), seat adjustment, refer to "Switch Unit". Switch Unit
^ Hall sensor (357De-Dh), seat adjustment, refer to "Hall Sensor". Hall Sensor
