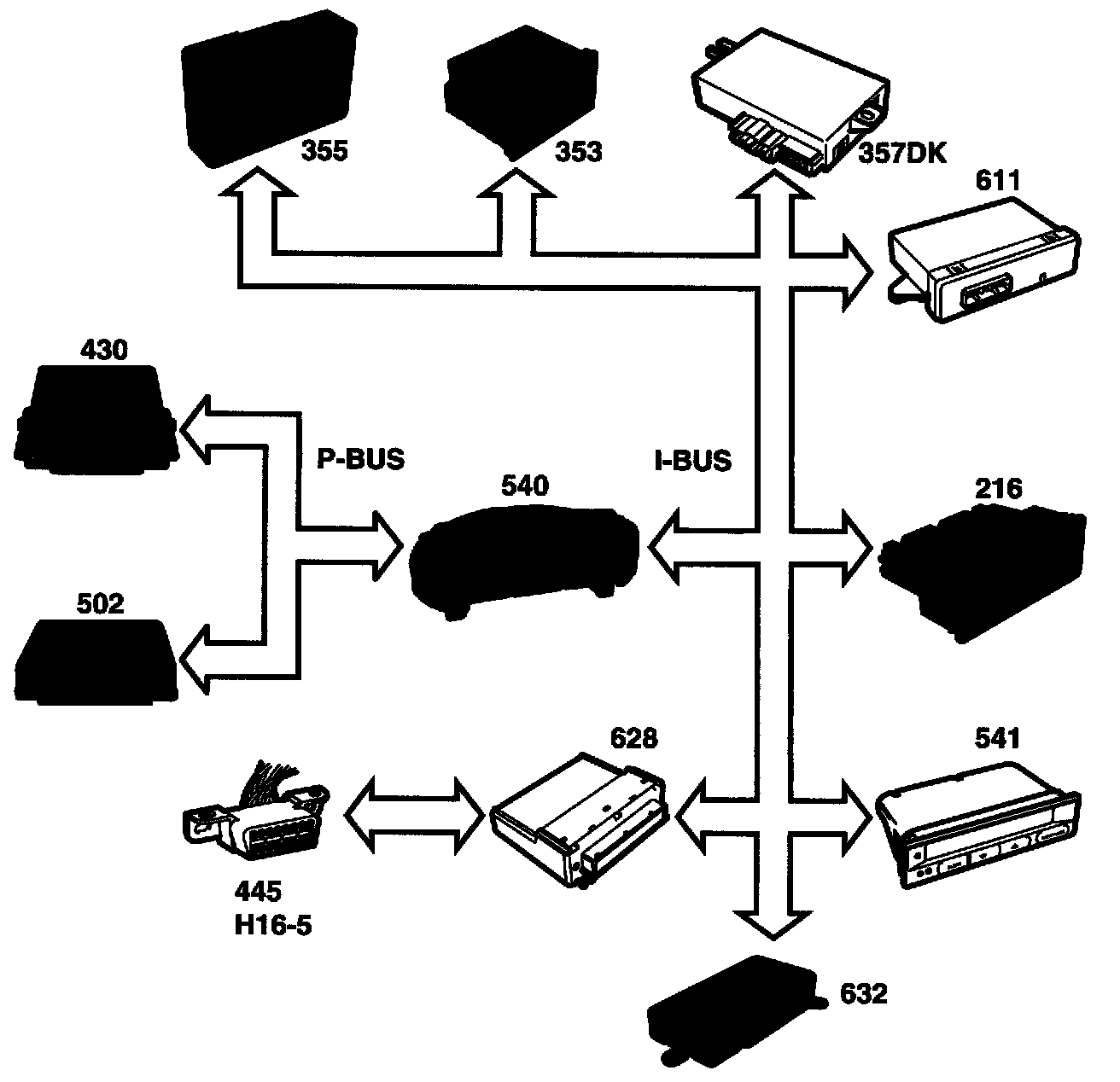

Control Module Outputs, I-Bus








Control Module Outputs, I-Bus

^ Acoustic confirmation to SID (541).
^ Memory buttons 1-3 for PMM (611).
^ Memory button On/Off for PMM (611).
^ Diagnostic communication to DICE (628).
