Control Module Inputs

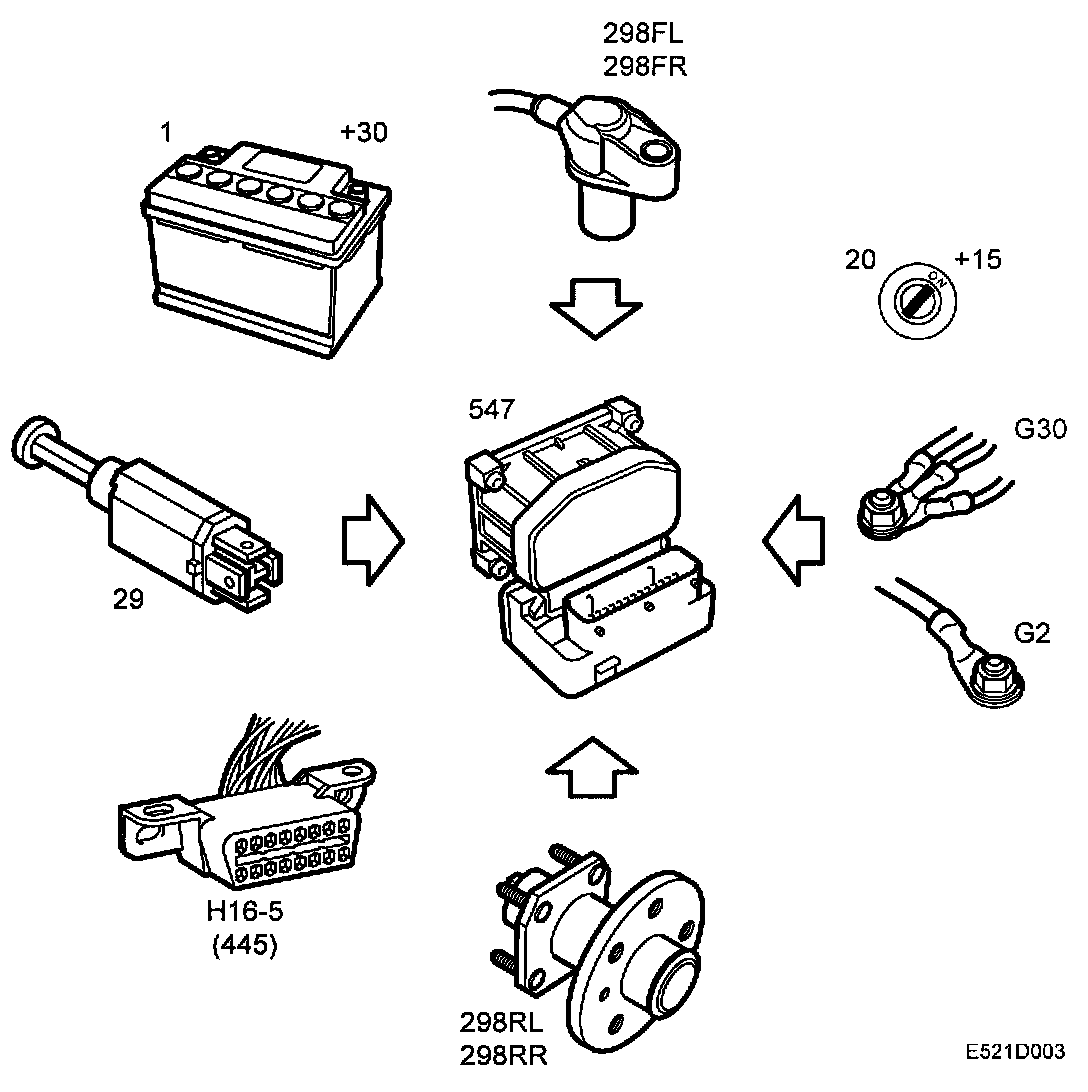

Control module inputs ^
Voltage (+30 circuit) (1)
Power Supply.
^
Voltage (+15 circuit) (20)
Power Supply.
^
Ground (G30, G2)
Control Module Ground.
^
Front-wheel sensors (298)
Front-Wheel Sensors.
^
Rear-wheel sensors (298)
Rear-Wheel Sensors.
^
Brake-light switch (29)
Brake-Light Switch.
^
Data link (445)
Data Link.
