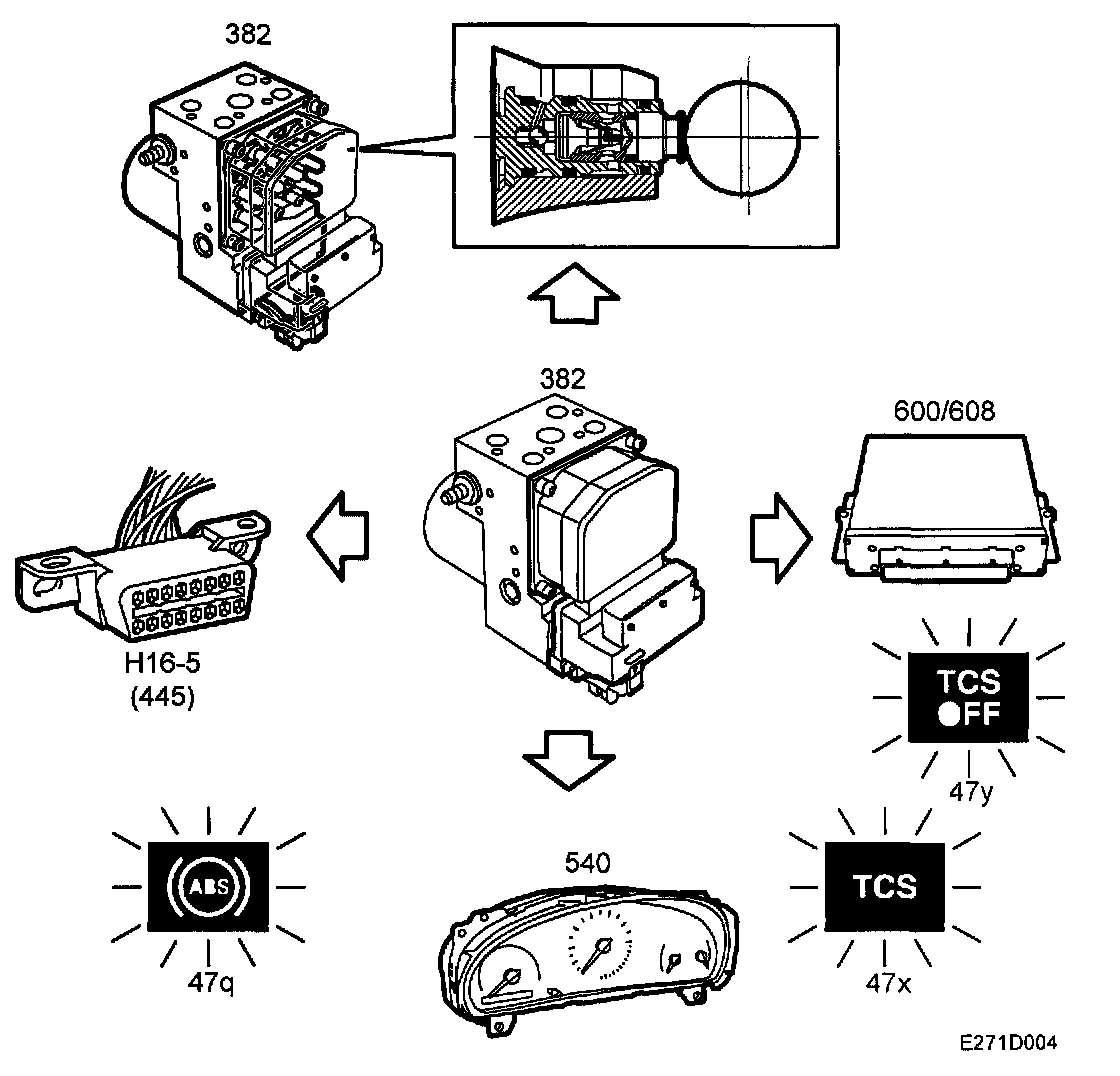

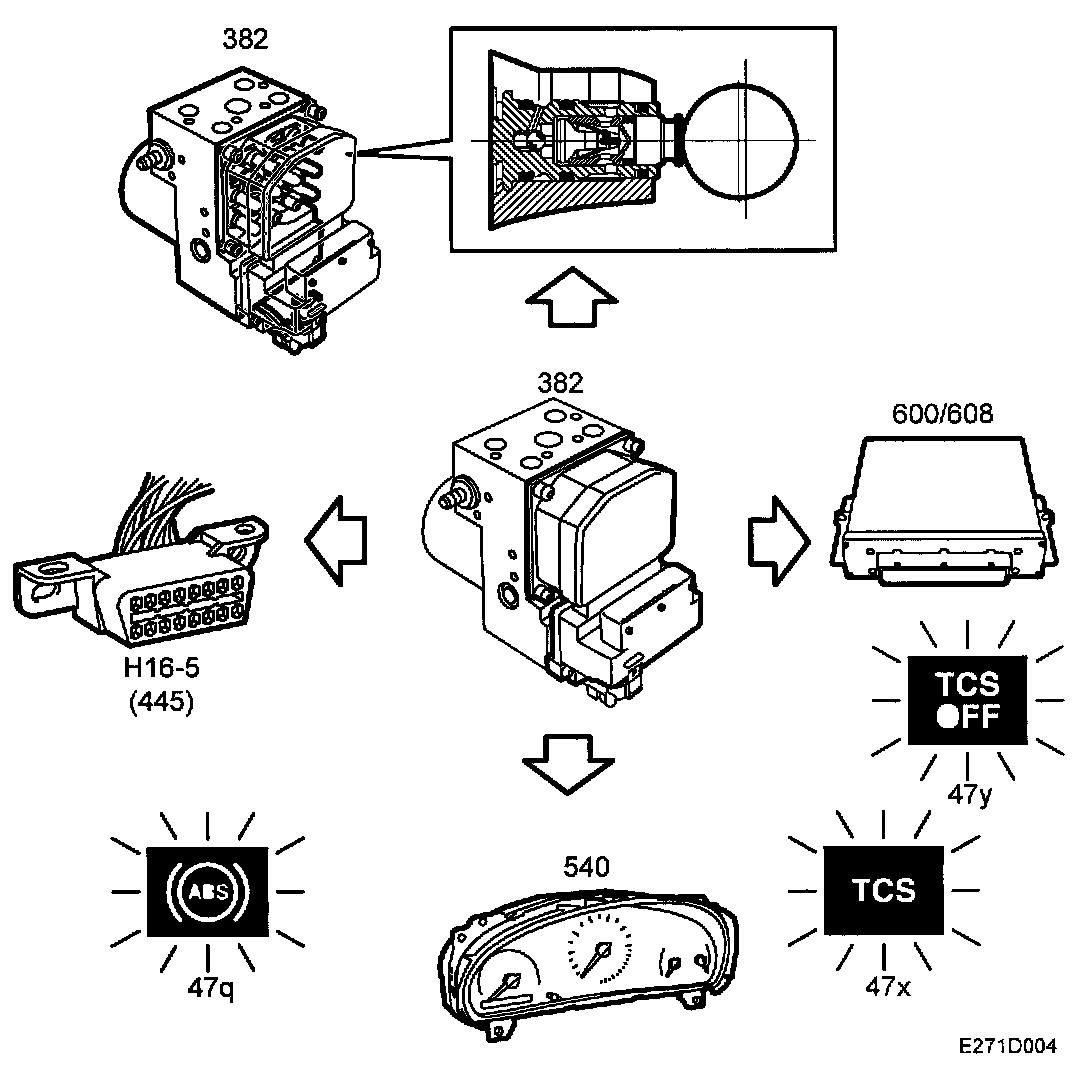

Control Module Outputs Part 2 of 2

^ Wheel Speed, Front Right (430) Front-Wheel Sensors

^ Wheel Speed, Rear Left (540) Rear-Wheel Sensors

^ Return Pump (382) Return Pump, ABS Function

^ ABS Warning Light On Main Instrument Unit (540) ABS Warning Lamp

^ Diagnostic Data Link (445) Diagnostics Communication

^ TCS OFF Warning Lamp On Main Instrument Unit (540) Indicator Lamp TCS Off

^ TCS Lamp On Main Instrument Unit (540) TCS Lamp





^ Inlet Valve, Front Left (382) Valve Block, ABS Function

^ Outlet Valve, Front Left (382) Valve Block, ABS Function

^ Inlet Valve, Front Right (382) Valve Block, ABS Function

^ Outlet Valve, Front Right (382) Valve Block, ABS Function

^ Inlet Valve, Rear Left (382) Valve Block, ABS Function

^ Outlet Valve, Rear Left (382) Valve Block, ABS Function

^ Inlet Valve, Rear Right (382) Valve Block, ABS Function

^ Outlet Valve, Rear Right (382) Valve Block, ABS Function

^ Pressure Increase Valve 1 Front Left (382) Valve Block, TCS Function

^ Pressure Increase Valve 2 Front Right (382) Valve Block, TCS Function

^ Pressure Relief Valve 1 Front Left (382) Valve Block, TCS Function

^ Pressure Relief Valve 2 Right Left (382) Valve Block, TCS Function
