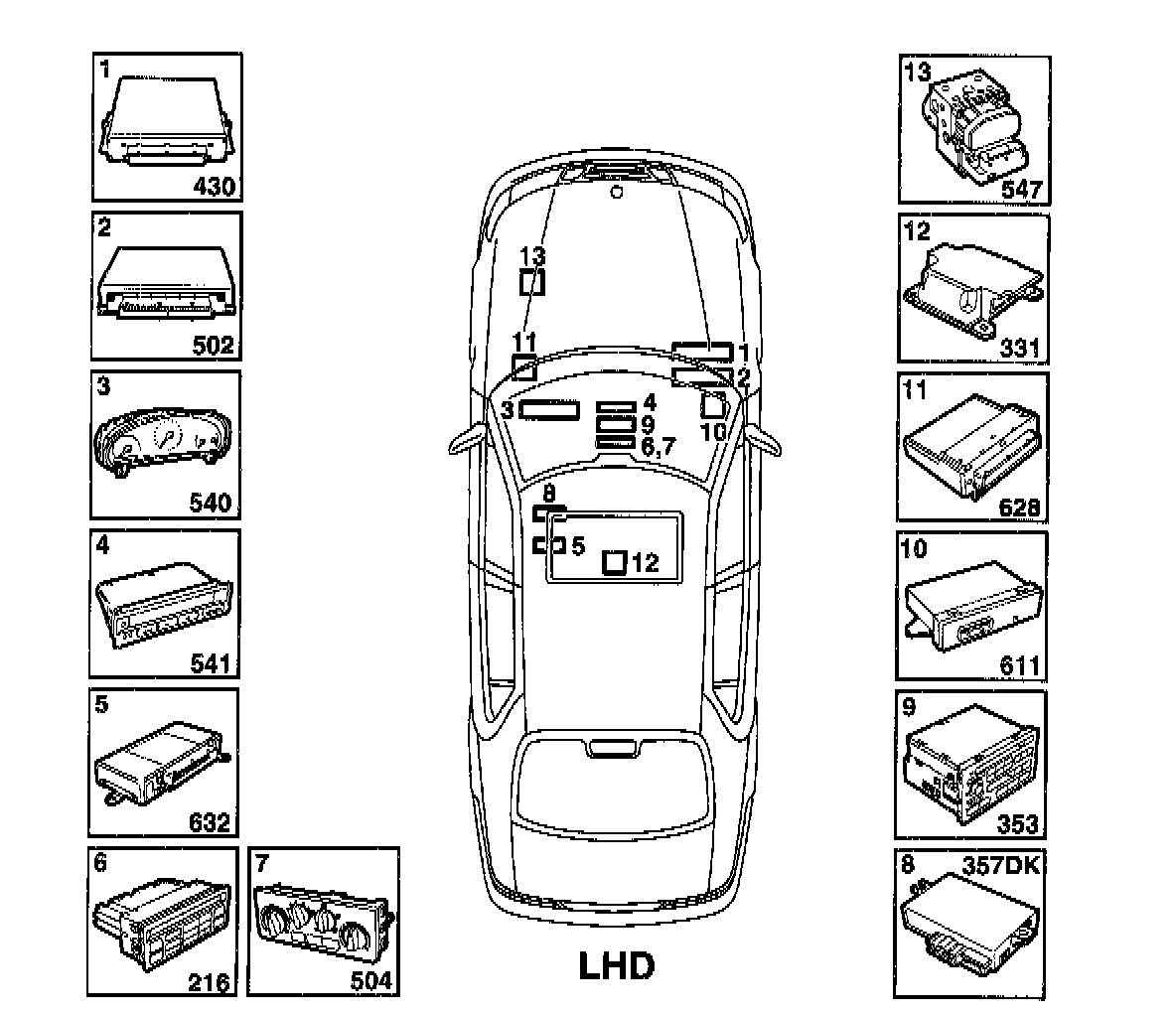

Control Modules Location Overview

1 Trionic
The Trionic control module is located in the assembly (compartment side) in front of the windscreen on the passenger side.

2 TCM
The control module is located in the assembly (compartment side) in front of the window.

3 Main instrument unit
The main instrument unit control module is located in the dashboard.

4 SID
The SID unit is located in the centre of the dashboard.

5 TWICE
The control module is located under the LH seat.

6 ACC
The ACC panel is located in the centre of the dashboard.

7 MCC
The MCC panel is located in the centre of the dashboard.

8 PSM
The control module is located in the driver's seat.

9 Audio
The main unit is located in the centre of the dashboard.

10 PMM
The control module is located above the glove box.

11 DICE
The control module is located on the main relay board in the dashboard.

12 Airbag (SRS)
The control module is located under the centre console on the tunnel.

13 ABS/TC-ABS
The control module is integrated in the hydraulic unit and is located under the main fuse box in the engine bay.
