Air Flow Meter/Sensor: Application and ID
Mass Air Flow Sensor (205)Type
Thermal resistor, the temperature of which is maintained at
220 °C above the air temperature.

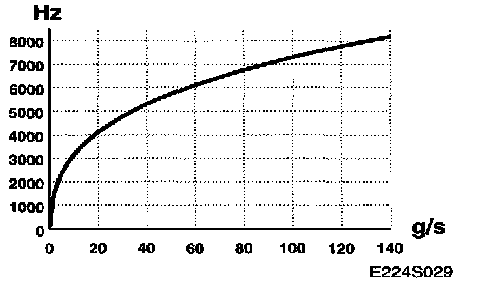

Air flow(g/s)
Hz
0
100-300
1
1045
1.5
1312
2
1527
3.5
2012
5
2355
7.5
2788
10
3134
15
3678
20
4095
30
4764
40
5289
50
5730
60
6114
80
6753
100
7266
120
7743
140
8158
