Clutch Switch: Service and Repair

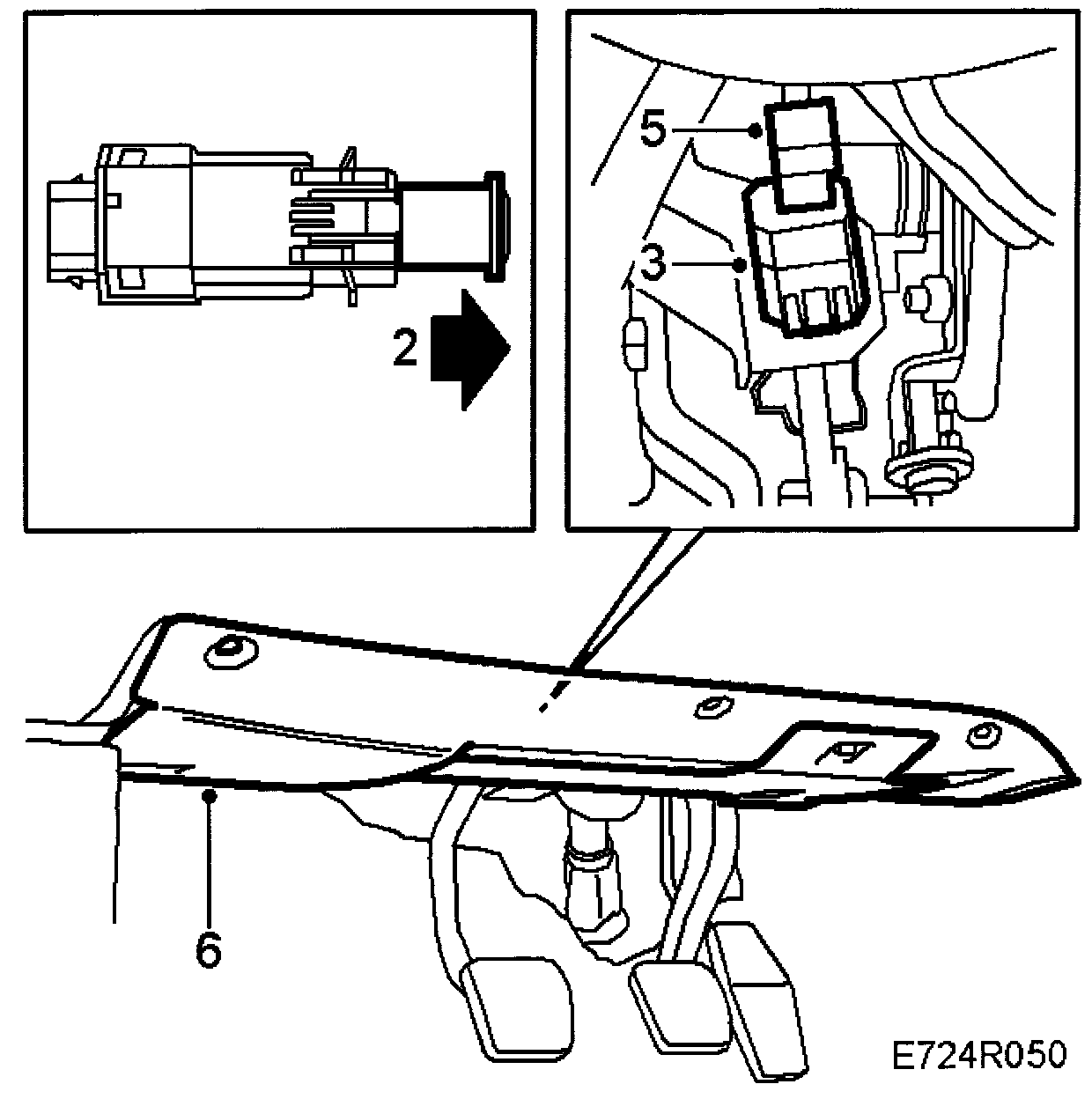

To remove
1 Remove the pedal bracket cover by undoing the 3 screws and the clip. Tilt the cover and carefully pull it out. Pay attention to the cables for the diagnostic tool data link connector and the lighting.





2 Depress the clutch pedal.
3 Extract the red sleeve on the switch until it clicks.





4 Detach the switch by pressing in the catches with an electricians screwdriver or similar tool.
5 Unplug the connector once the switch is loose.

To fit
1 Spray the connector with Kontakt 61 (part no.30 04 520).





2 Make sure the switch is fully extracted.
3 Depress the clutch pedal and press the switch into the holder.
4 Carefully release the pedal.
5 Plug in the connector.
6 Fit the pedal bracket cover with 3 screws and 1 clip.
