Control Module Outputs

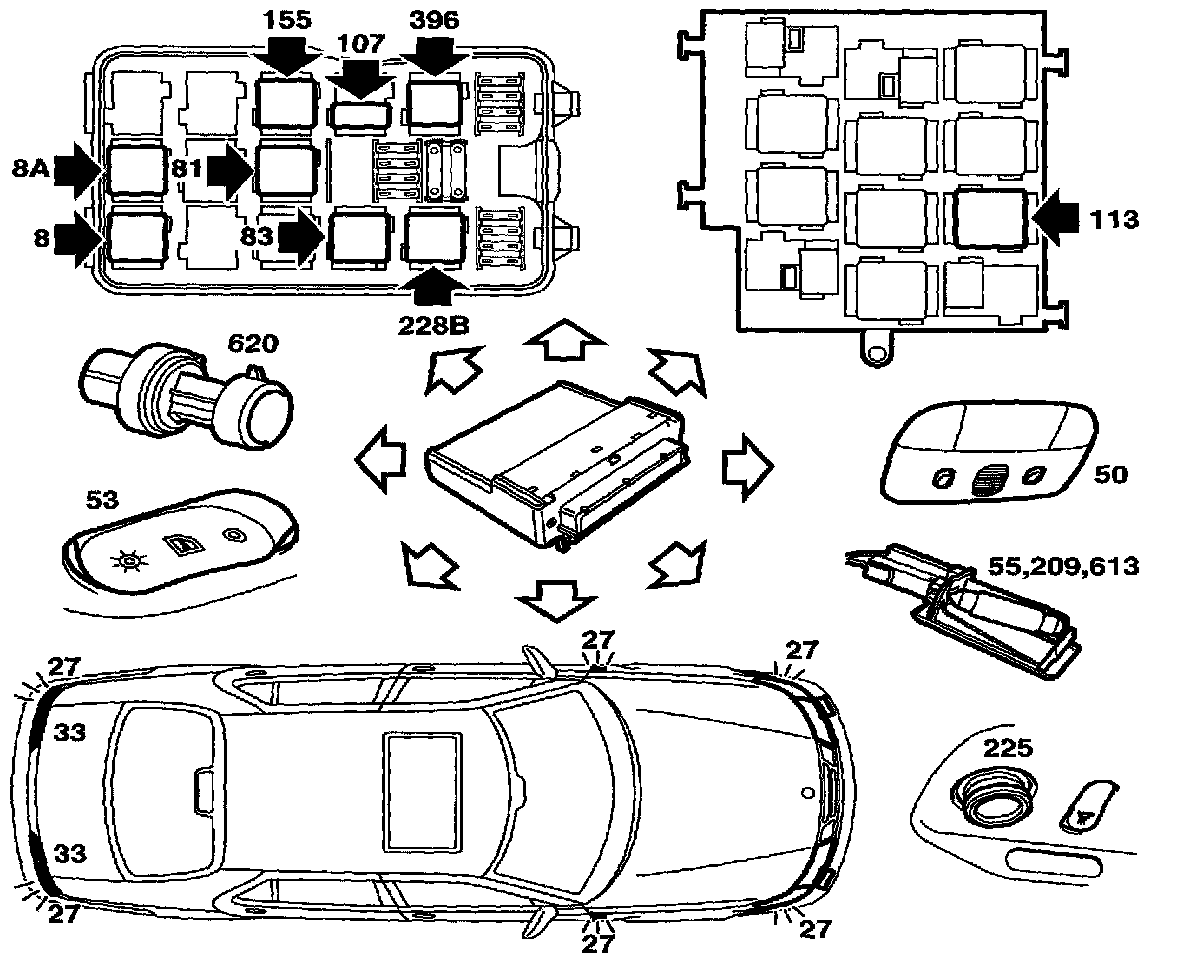

Control Module Outputs

- Dipped beam relay (8)
- Main beam relay (8a)
- Front fog lights relay (107)
- Rear fog lights lamp (33)
- Direction indicators LH lamp (27)
- Direction indicators RH lamp (27)
- Interior lighting, lights switch (53)
- Courtesy/floor lighting, lamps (209/613)
- Reading lamp (225)
- Luggage compartment lamp (55)
- Instrument and control lighting, lamps
- Intermittent wiper relay, windscreen (83)
- Electrically heated rear window and door mirrors, relay (113)
- Radiator fan, low-speed relay (396)
- Radiator fan, high-speed relay 1 (155)
- Radiator fan, high-speed relay 2 (81)
- A/C pressure sensor, power supply (620)
