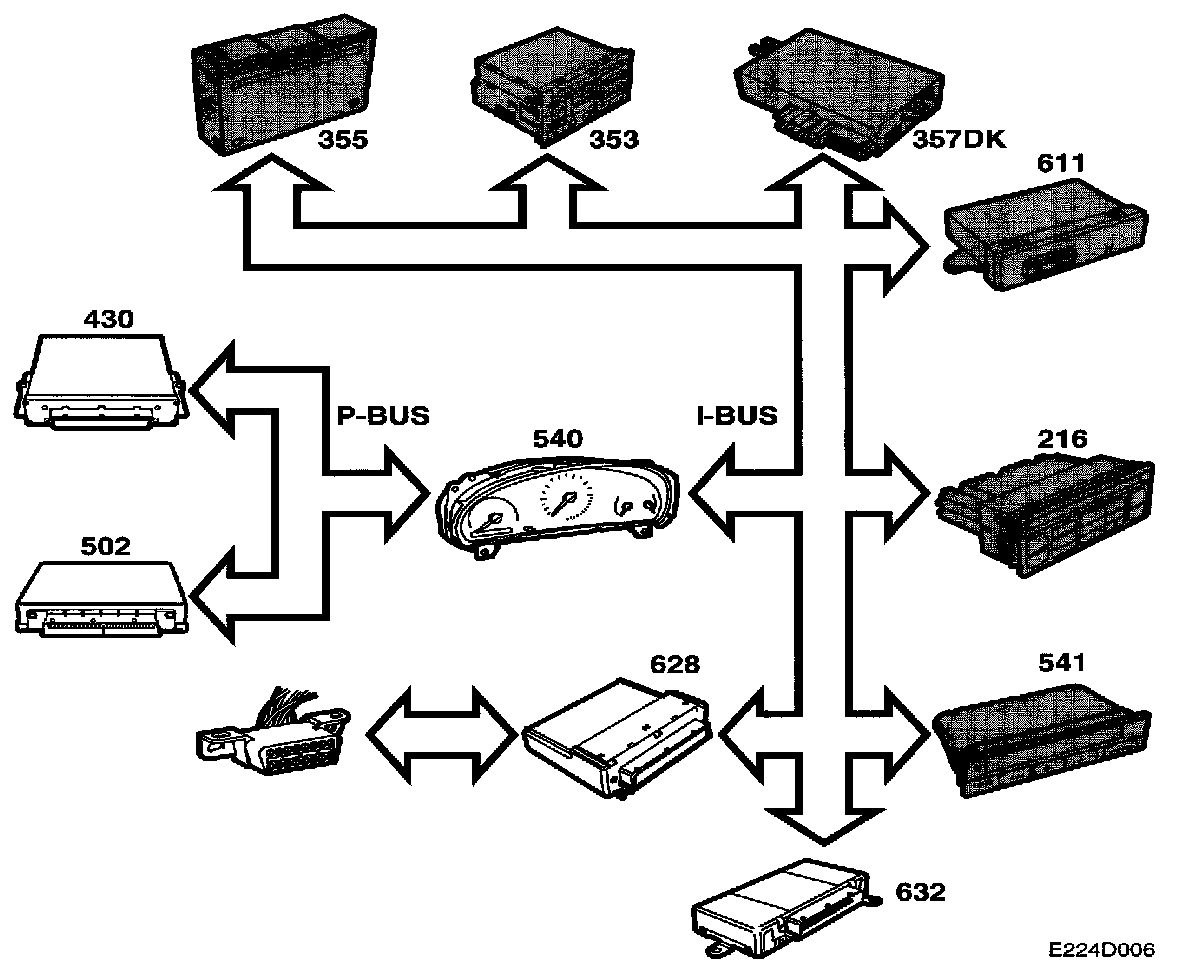

Control Module Outputs, Bus







Control Module Outputs, Bus

- Engine torque, used by TCM (502)
- Accelerator position, used by TCM (502)
- Kickdown used by TCM (502)
- Engine speed, used by TCM (502), ACC (216) and MIU (540)
- Coolant temperature, used by ACC (216), MIU (540) and DICE (628)
- Engine has started, used by ACC (216)
- CHECK ENGINE, used by MIU (540)
- SHIFT UP, used by MIU (540)
- CRUISE lamp, used by MIU (540)
- Fuel consumed since start, used by MIU (540)
- Diagnostics, used by DICE (628)/diagnostic tool
