DICE Control Module Connections

Test Readings

Scope
Readings and directions for measuring signals/levels in the DICE control module are given in the following pages.

Point to remember
- Note the test conditions, use common sense when assessing the test results.
- First check that the control module is supplied with current and is grounded.
- Then check all the sensor inputs and signals from other systems.
- Lastly, check the control module outputs. Remember, the test values do not say anything about whether or not the actuator is functioning.
- If any reading is not OK, consult the wiring diagram to trace the leads, connectors or components which ought to be checked more thoroughly.

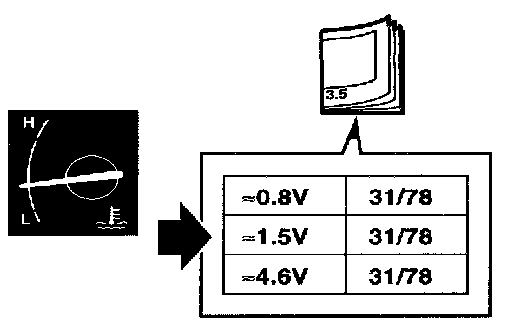

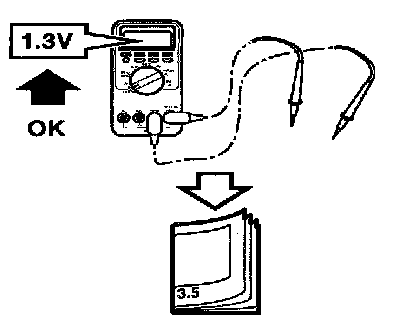

- The specified test readings refer to those obtained with a calibrated Fluke 88/97.
- The test values indicate the pulse ratio and pulse length of the signal respectively. A scan tool for measuring pulse ratio and pulse width respectively must be used. (+) indicates positive trigger pulse, TRIG+.














Control Module Connections
