Description Of Operation, Control Module Inputs

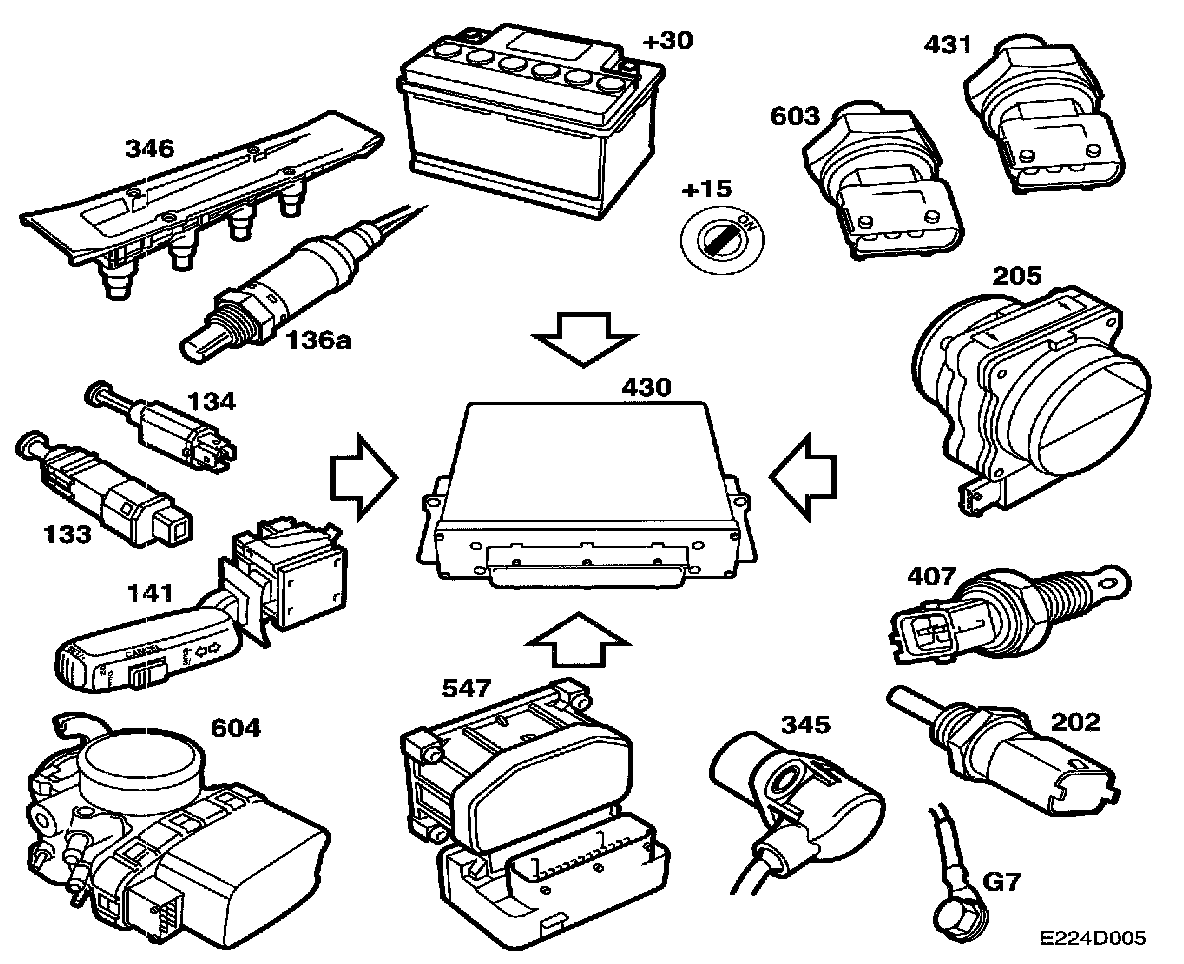

Control Module Inputs

- Power supply +30 circuit
- Power supply +15 circuit
- Power ground
- Crankshaft position sensor (345)
- Mass air flow sensor (205)
- Manifold absolute pressure sensor (431)
- Charge air absolute pressure sensor (603)
- Intake air temperature sensor (407)
- Temperature sensor, coolant (202)
- Speed, lead from ABS
- Pedal position sensor
- Cruise control switch
- Pedal switches
- Throttle position sensor
- Oxygen sensor (136a)
- Ignition discharge module (346)
