Description Of Operation, Control Module Outputs

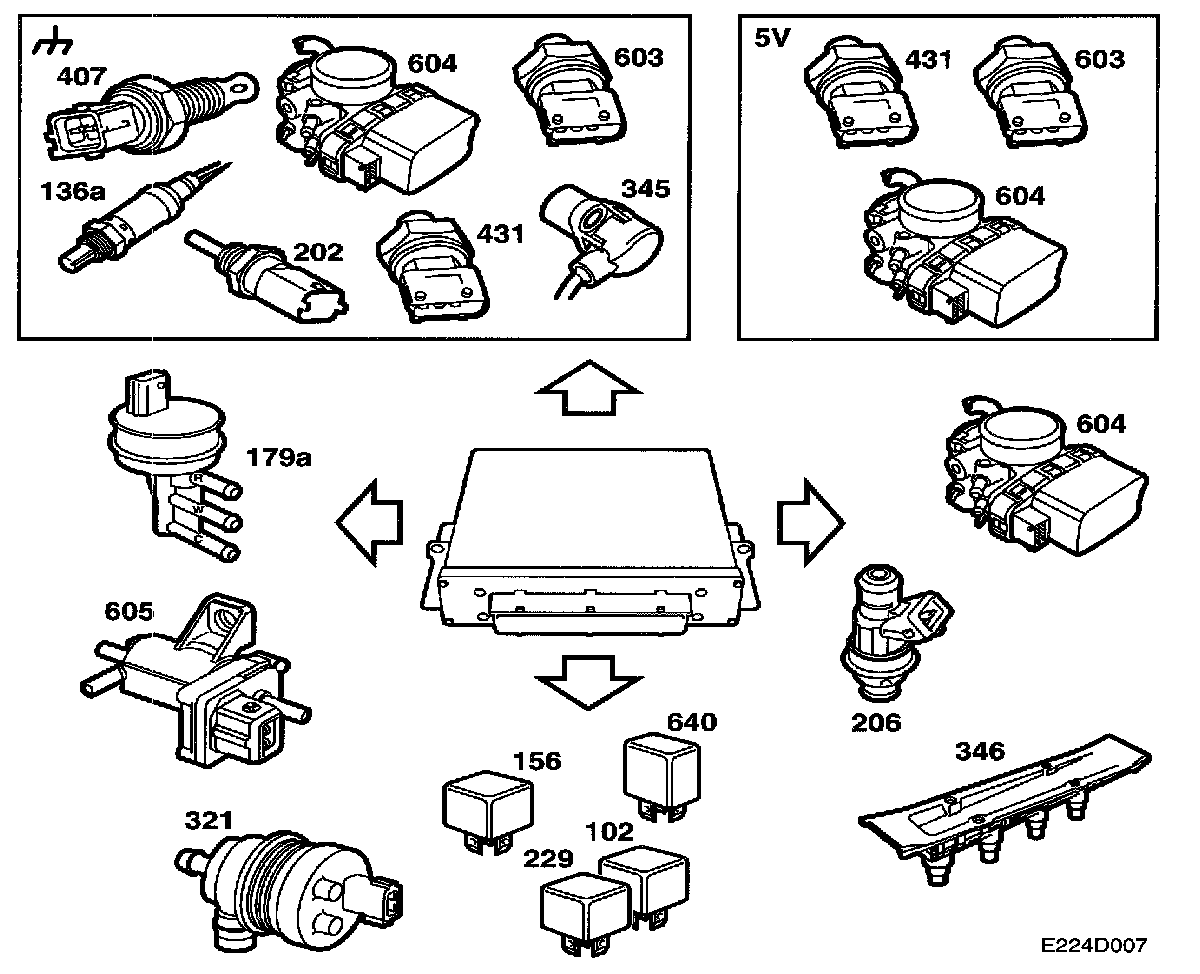

Control Module Outputs

- Sensor ground, reference ground
- 5 V power supply to sensor
- Main relay and fuel pump relay
- A/C relay (156)
- Throttle motor
- Relay, limp-home solenoid (640)
- Charge air control valve (179a)
- Bypass valve (605)
- EVAP canister purge valve (321)
- Injectors (206)
- Ignition discharge module (346)
