Control Module HVAC: Testing and Inspection

Test Readings, Control Module Connections





The following pages contain directions and test values for the MCC unit.

Remember:

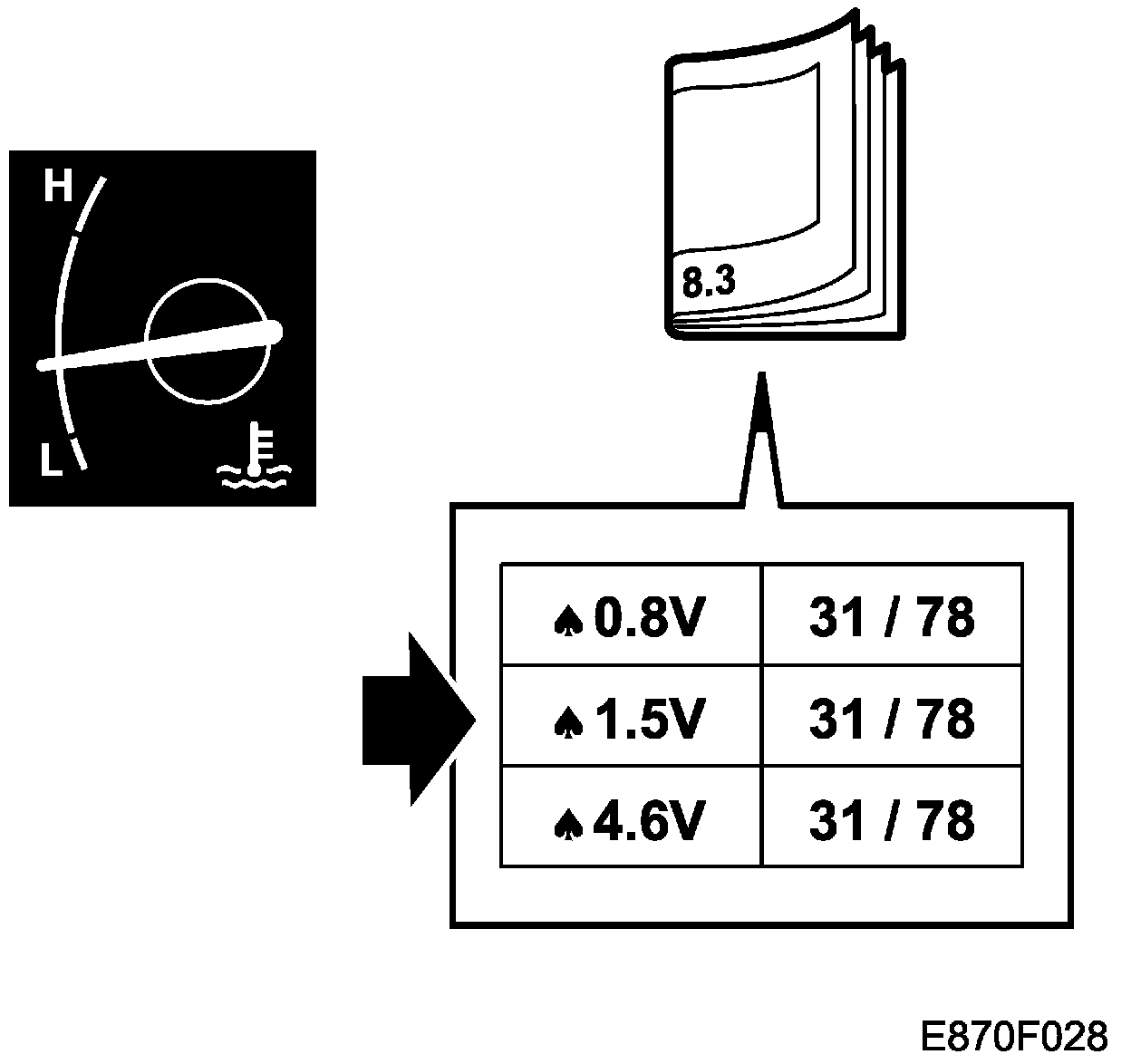

^ Note the test conditions. Use common sense when assessing the test result.
^ First check that the control module is supplied with current and is grounded.

Then check all sensor inputs and signals from other systems.

Finally, check the control module outputs. Remember that the test readings do not indicate whether the actuator is working.

^ If any reading is not OK, consult the wiring diagram to trace the leads, connectors or components which should be checked more thoroughly.

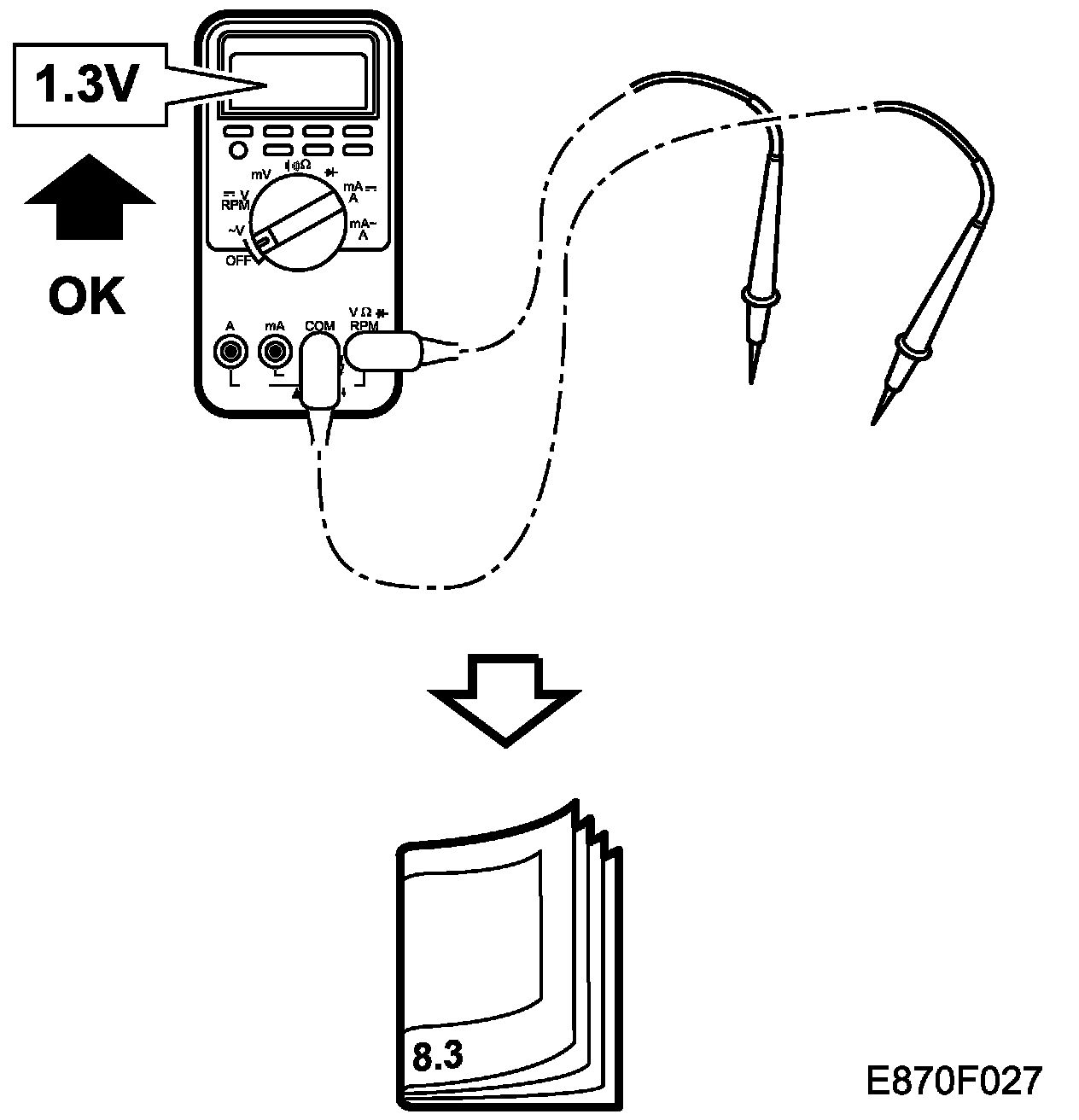

^ The test readings given apply to a calibrated Fluke 88/97.
^ The test values indicate the pulse ratio and pulse length of the signal respectively. A test instrument for measuring pulse ratio and pulse width respectively must be used.





MCC unit, control module connections

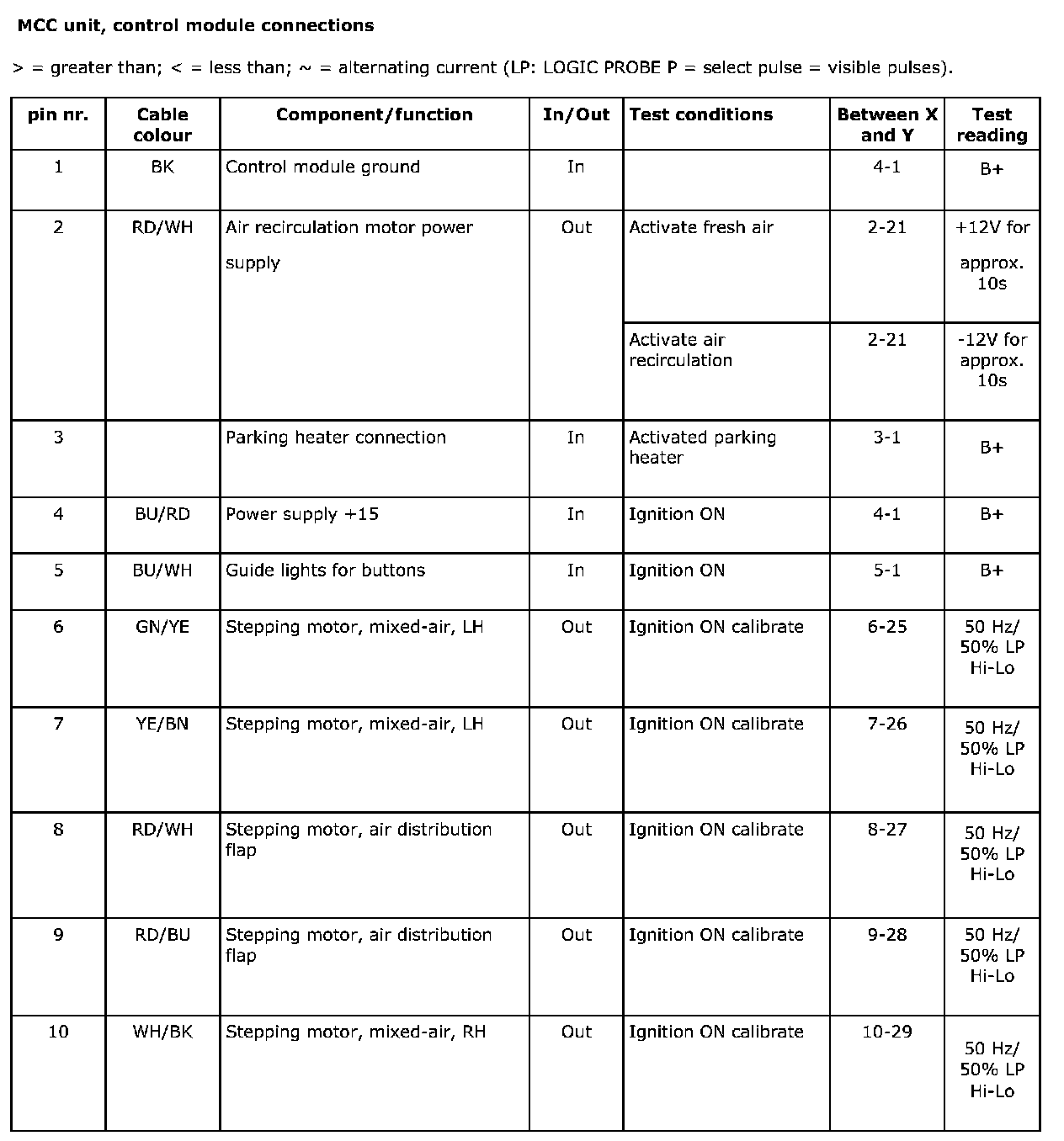

MCC Unit, Control Module Connections (Part 1):

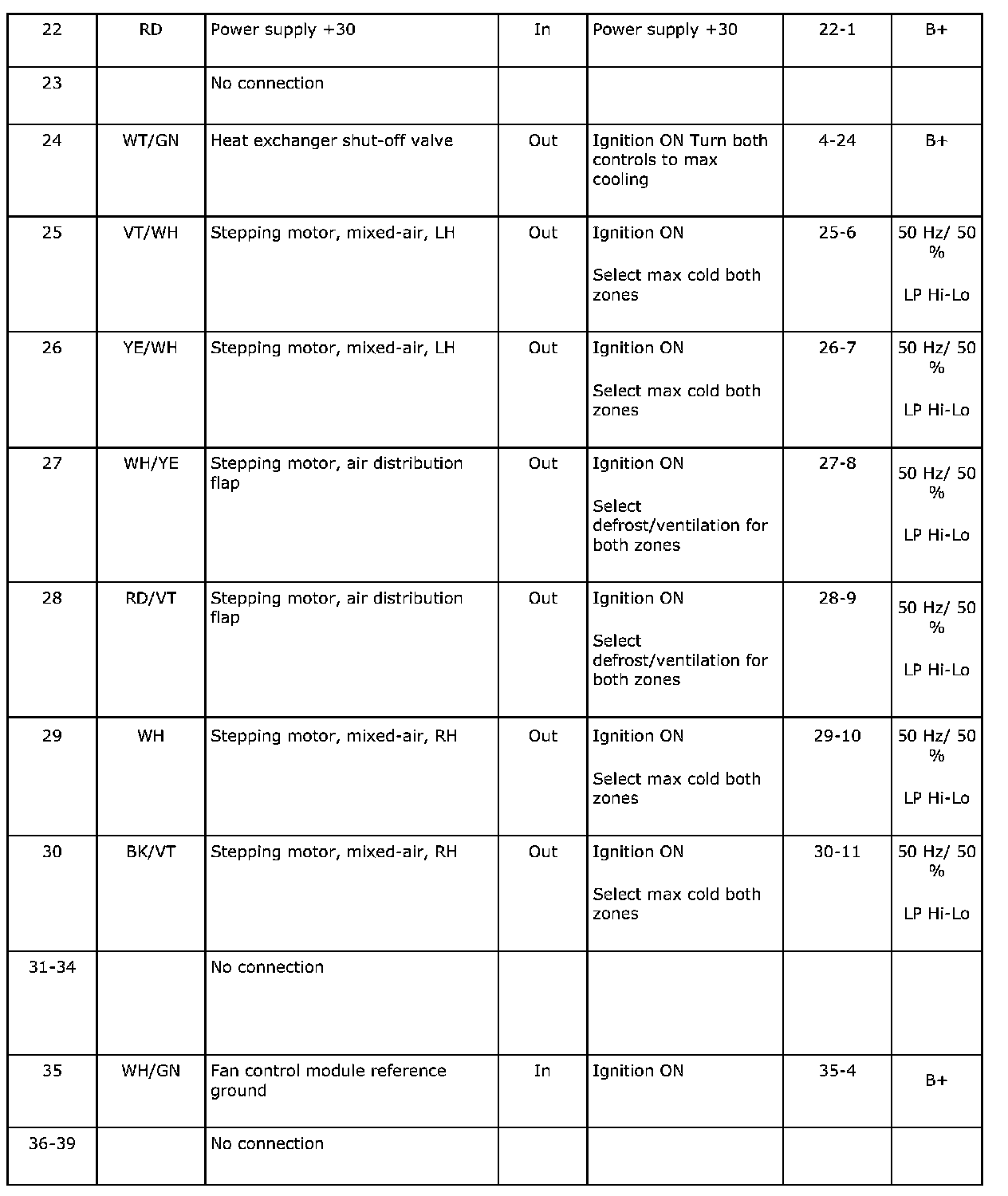

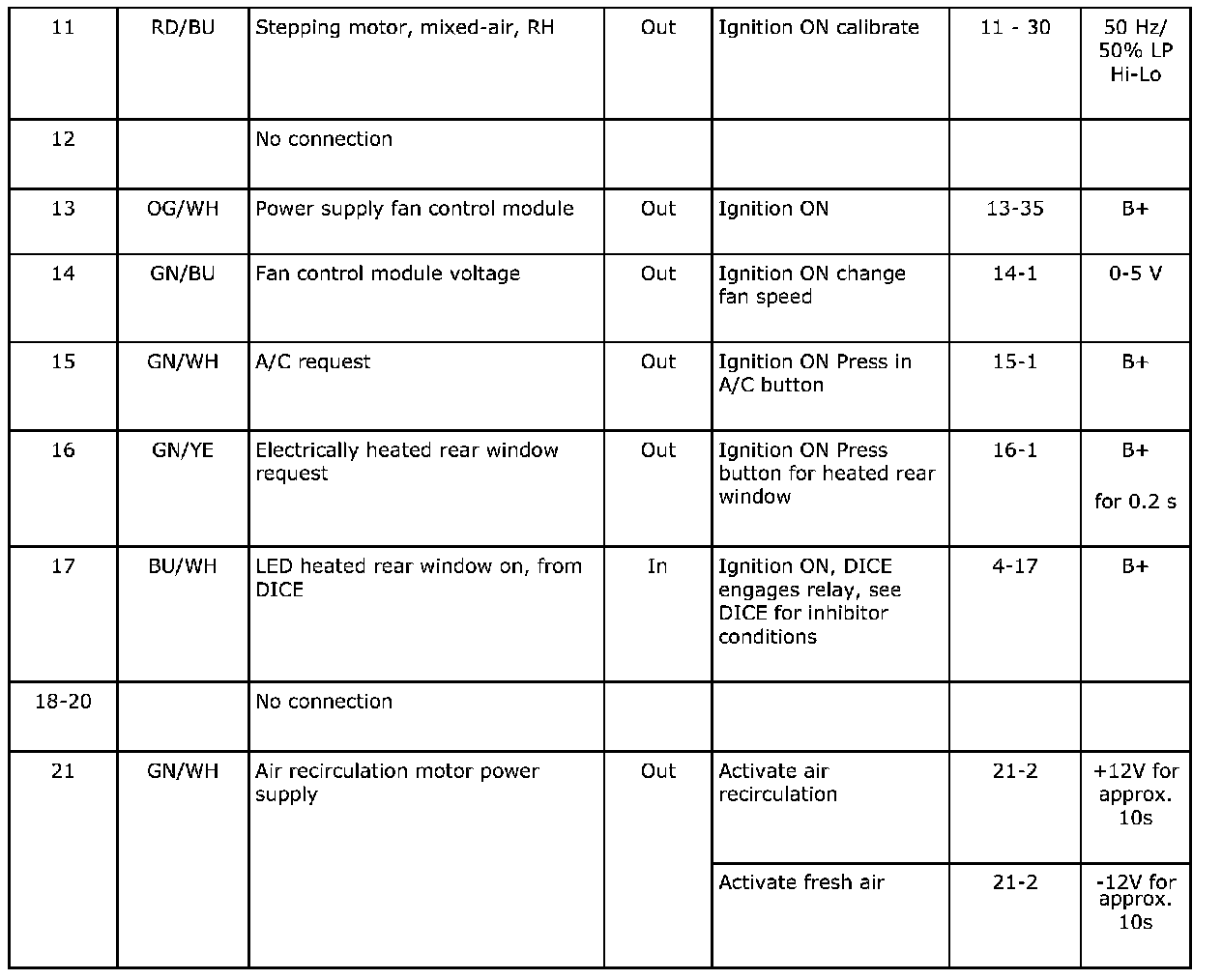

MCC Unit, Control Module Connections (Part 2):

MCC Unit, Control Module Connections (Part 3):
