Indication Display

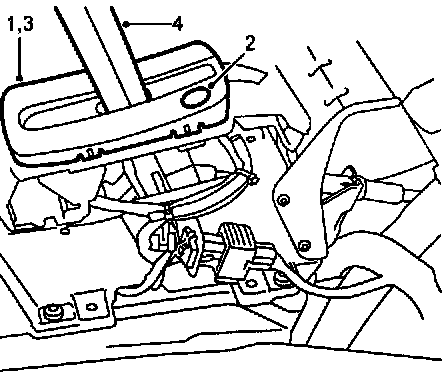

To remove
1. Remove the edging around the indication display





2. Dismantle the selector lever casing, refer to Transmission and Drivetrain, Automatic Transmission/Transaxle.
3. Lift up the indication display.
4. Unsolder the WINTER button, refer to transmission and Drivetrain, Transmission Control Systems.
5. Lift off the indication display.

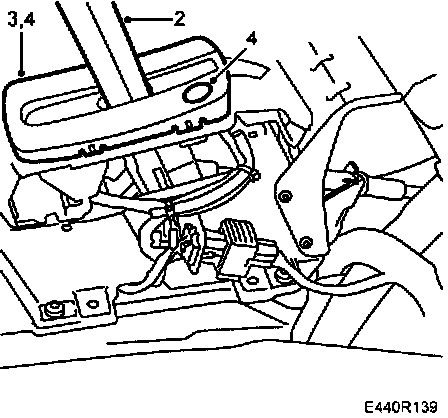

Fitting





1. Enter the indication display over the lever.
2. Solder on the WlNTER-button.
3. Press on the indication display.
4. Assemble the selector lever casing.
5. Fit the edging around the indication display.
