Selector Lever Lighting

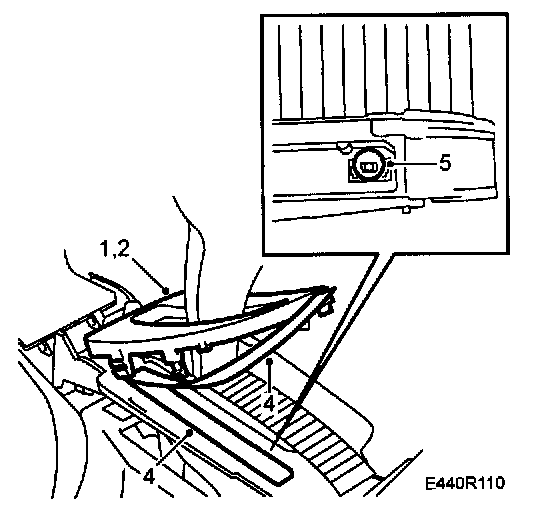

To Remove





1. Remove the edging around the indication display.
2. Remove the indication display by carefully pressing in the catches.
3. Lift up the indication display.
4. Lift up the green color band and remove the grey plastic strip.
5. Remove the lamp using pliers.

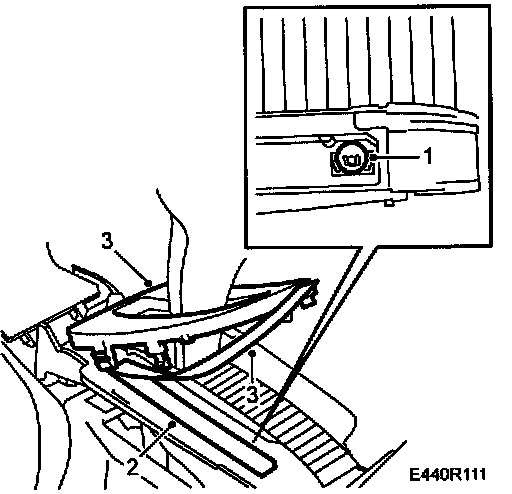

Fitting





1. Fit a new lamp.
2. Fit the gray plastic strip under the green band.
3. Fit the indication display.
4. Fit the edging around the indication display.
