Selector Lever Retracting Cover With Indication Strip

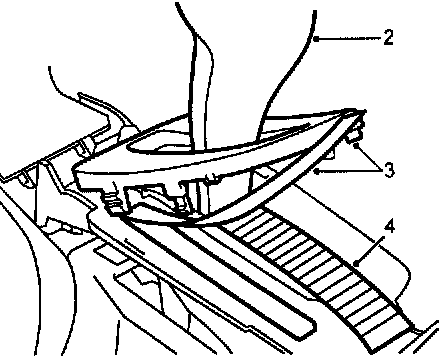

To remove
1. Remove the edging around the indication display.





2. Dismantle the selector lever casing, refer to Transmission and Drivetrain, Automatic Transmission/Transaxle.
3. Lift up the indication display.
4. Remove the retracting cover together with the indication display.

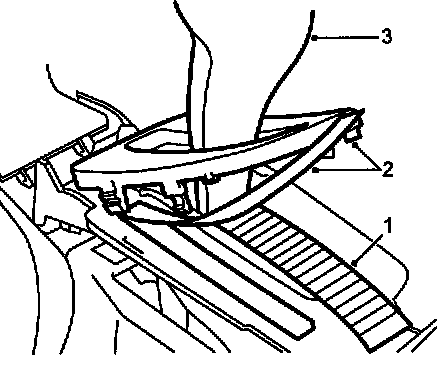

Fitting





1. Fit the retracting cover together with the indication display. The matted side of the indication strip should face up.
2. Press on the indication display.
3. Assemble the selector lever casing.
4. Fit the edging around the indication display
