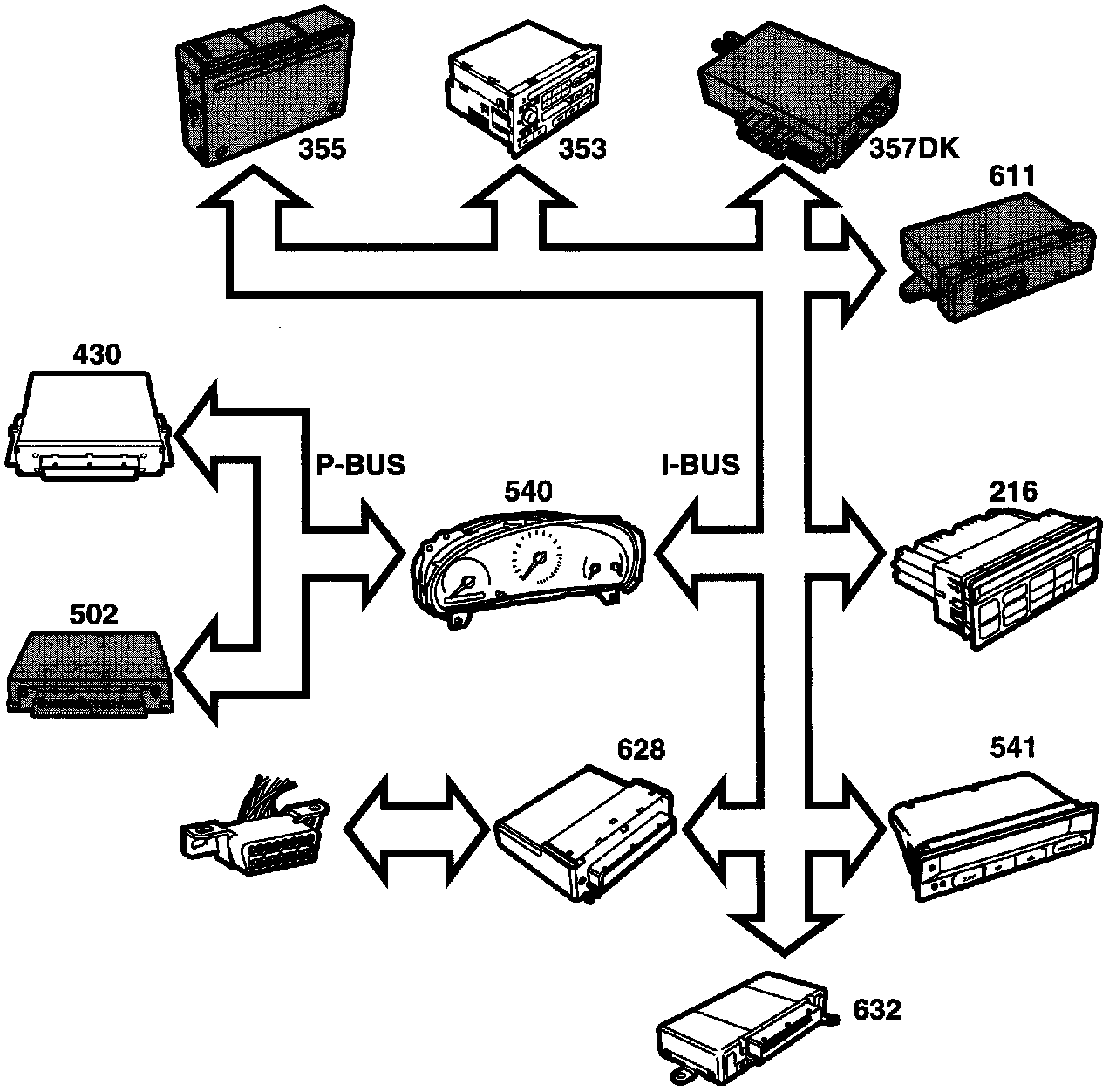

Control Module Outputs, Bus

Control Module Outputs, Bus

^ Vehicle speed information, see description, "Speedometer with odometer and trip meter."
^ Odometer reading (to SID unit) (541), see description, "Speedometer with odometer and trip meter."
^ Fuel level (to SID unit) (541), see description,"Fuel gauge."
^ Fuel consumption (to SID unit) (541), see description, "Fuel gauge."
^ Acoustic signal, central warning lamp (request to SID unit) (541), see description, "Warning and indicator lamps."
