Control Module Inputs

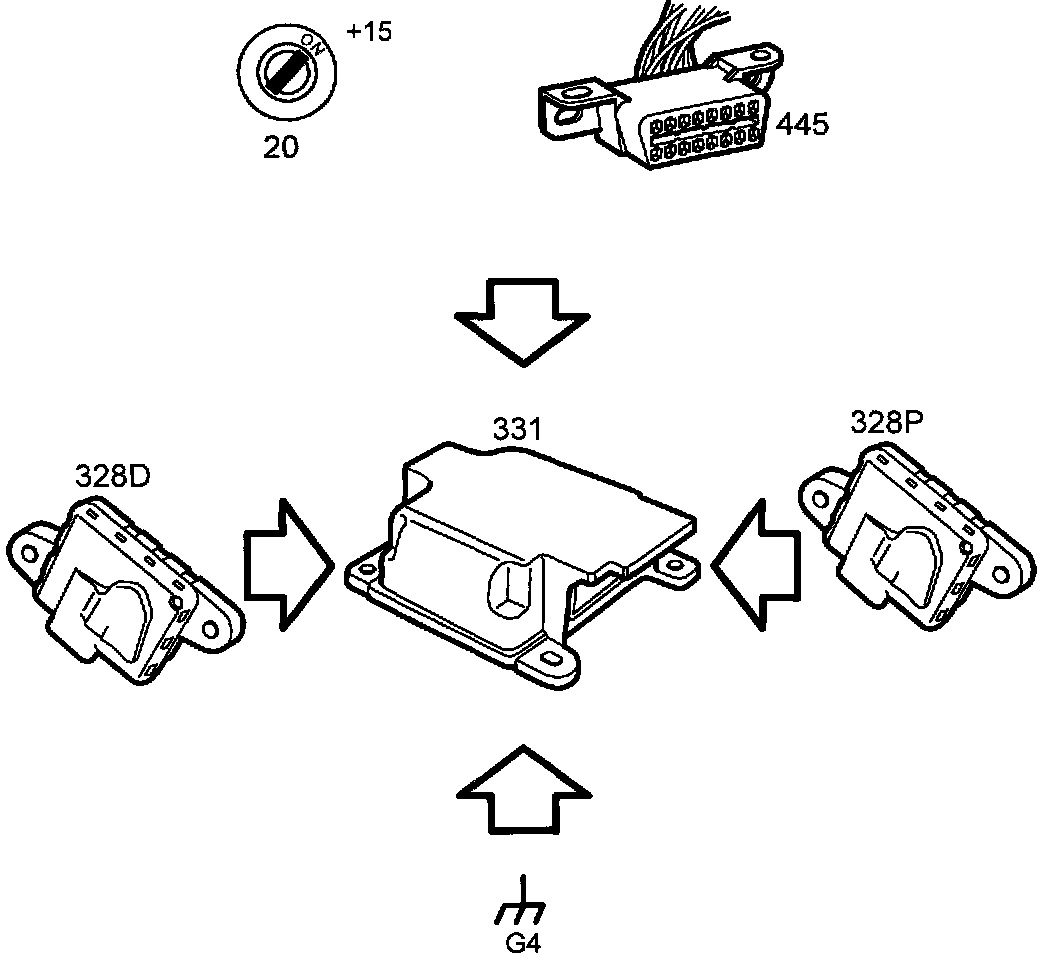

Control Module Inputs:





1 Power supply (+15 circuit)
2 Ground.
3 Side impact sensor, driver.
4 Side impact sensor, passenger.
5 Diagnostics communication.
SRS Control Module
