Control Module Outputs

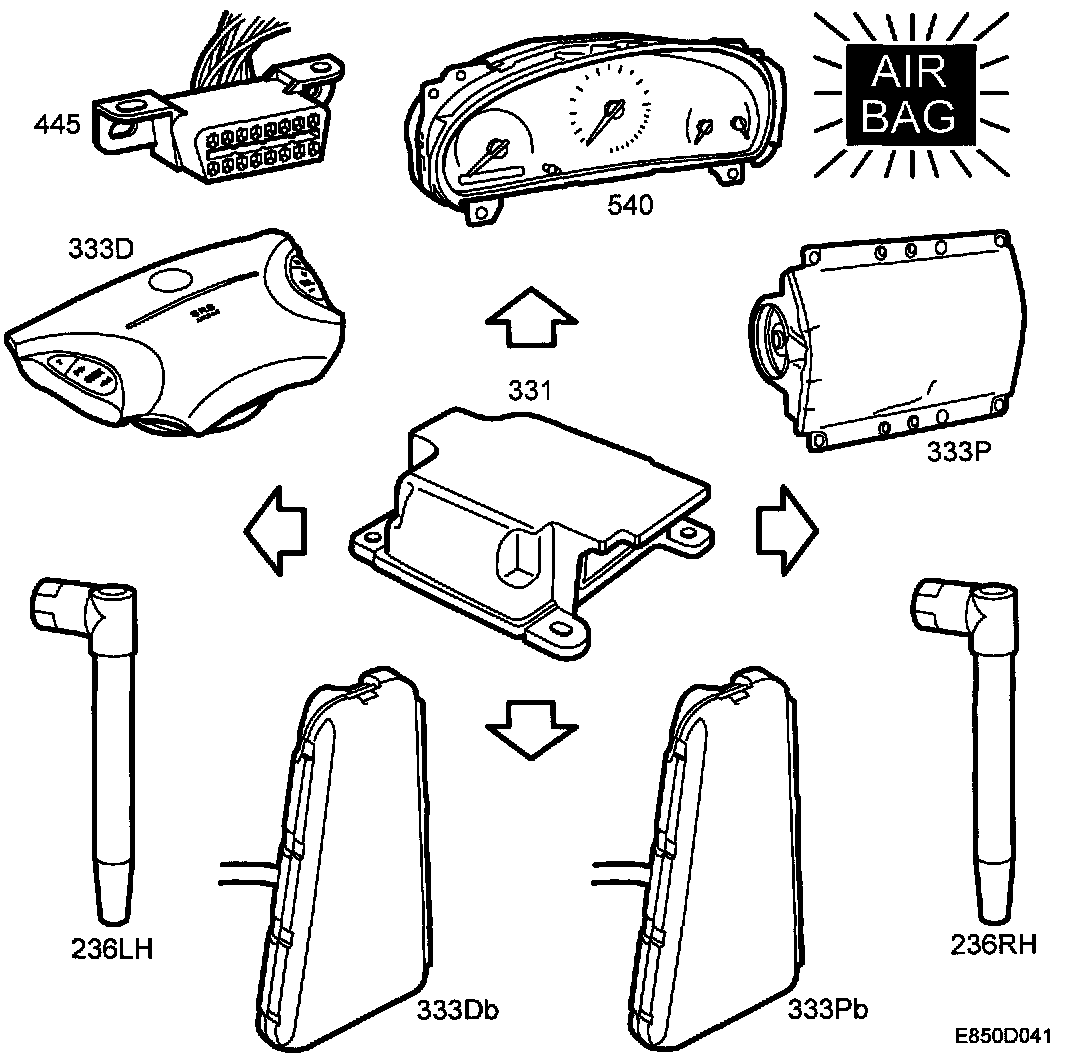

Control Module Outputs:

1 Airbag warning lamp.
2 Driver airbag.
3 Passenger airbag.
4 Seat-belt tensioner, left.
5 Seat-belt tensioner, right.
6 Side airbag, driver.
7 Side airbag, passenger.
8 Diagnostics communication.
