Diagnostics Communication

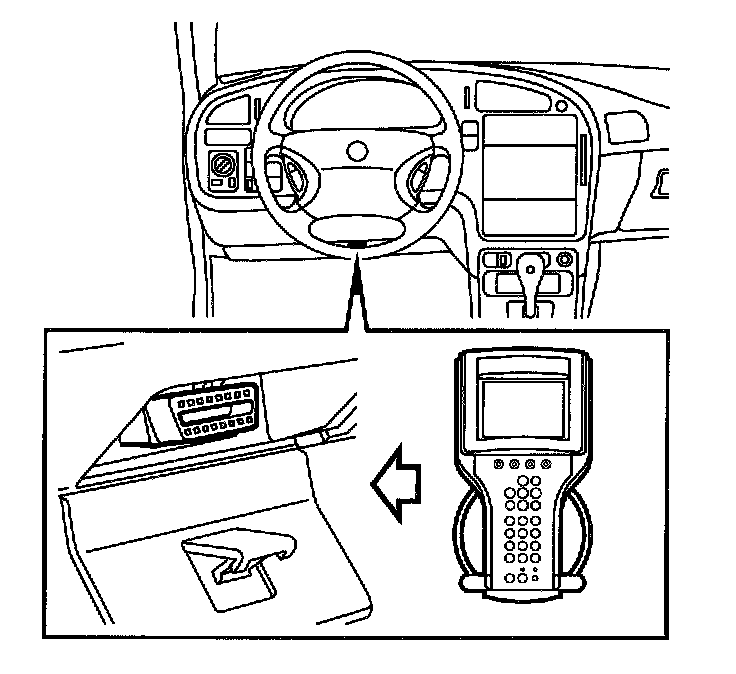

The data link connector is located on the driver's side below the steering wheel.

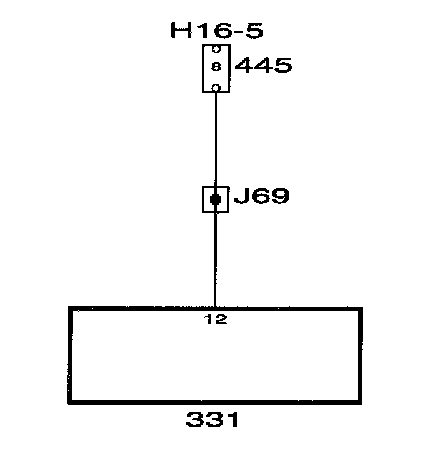

The control module communicates with the data link connector via pin 12.
