Scan Tool Testing

Diagnostic trouble codes (DTC)

Read values/Activate

Adjustment

Programming

Snapshot

System information

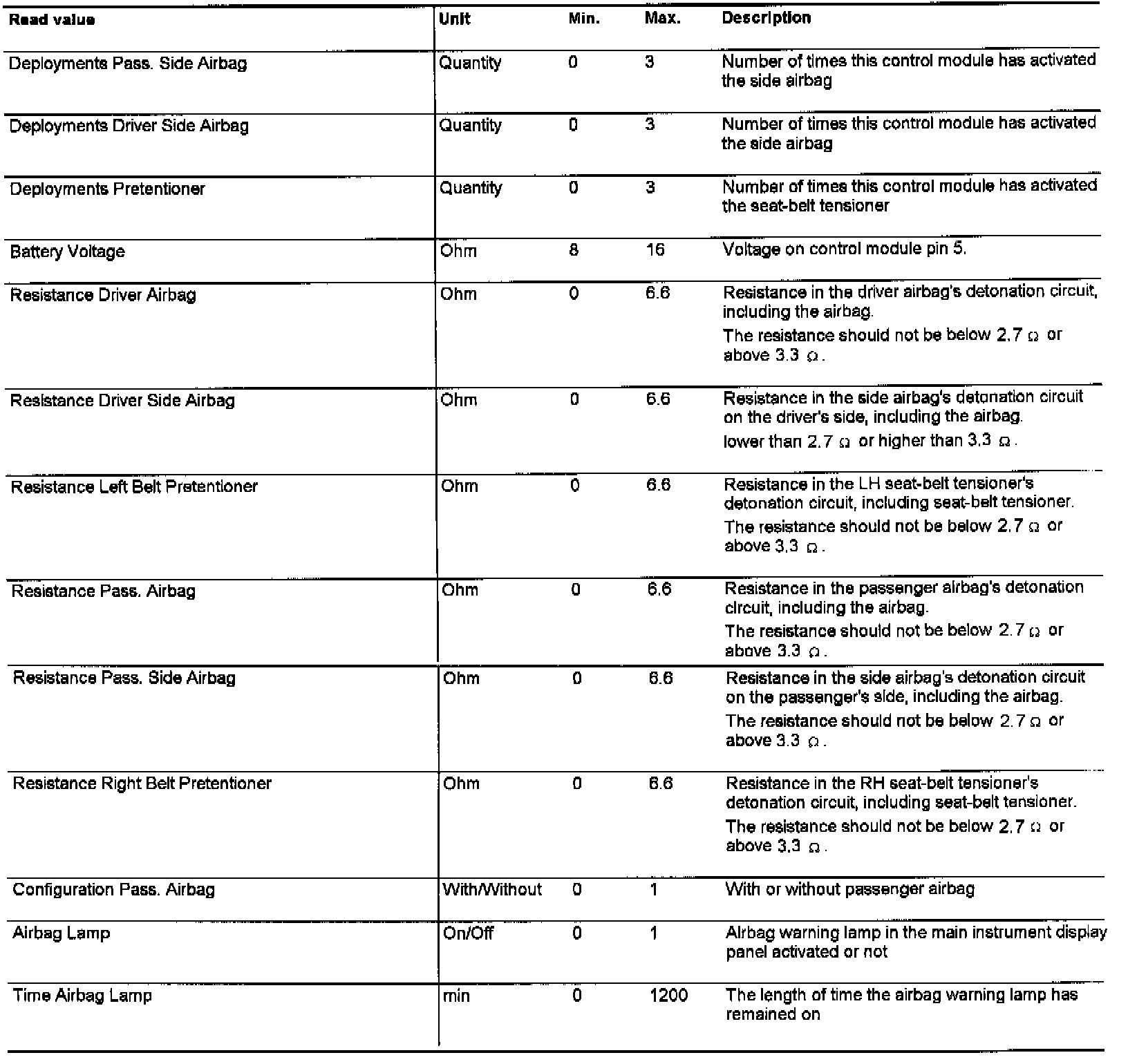

Read Values:

Programming:

Command menu "System Information"

Text Function
Part Number Shows Saab's X-digit part number for the control module
Hardware Version Number: Shows the supplier's X-digit part number for the software.
Software Version Number: Shows the supplier's X-digit part number for the control module.
