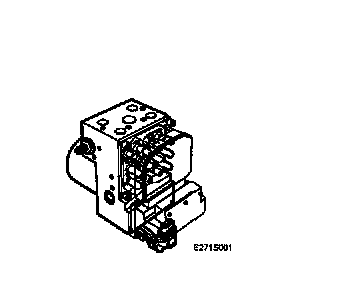

Hydraulic Unit


Hydraulic Unit Specifications





Manufacturer
Bosch TC/ABS 5.3
Solenoid valves, ABS
8 (4 inlet valves, 4 outlet valves)
Solenoid valves, TCS
4 (2 pressure increase valves and 2 pressure relief valves)
Return pump
Eccentric-plunger pump
Return pump, maximum pressure
250 Bar

The hydraulic unit is integrated with the control module.
