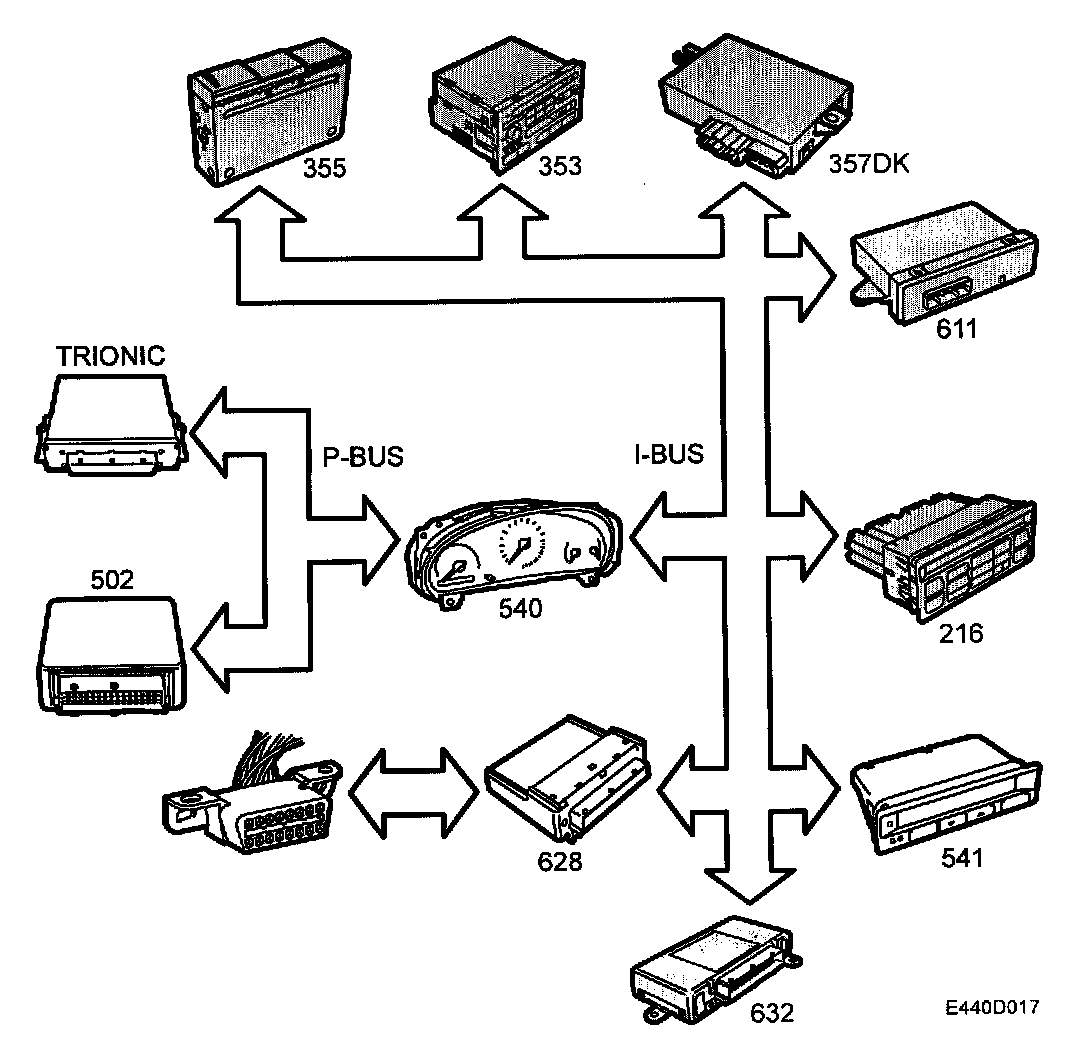

Control Module Bus Outputs







^ Maximum permissible torque (used by Trionic)(430/600), Maximum Permissible Torque
^ Selector lever position (used by Trionic and MIU) (430/600, 540), Gear Selector Position Sensor - Gear Engaged
^ Message addressed to SID (541), HIGH GEARBOX OILTEMP (used by SID), Transmission Fluid Temperature Sensor
^ CHECK GEARBOX lamp (used by MIU) (540), Check Gearbox Warning Lamp
^ SPORT (used by Trionic and MIU) (430/600, 540), Sport Shifting Program
^ WINTER lamp (used by MIU) (540), Winter Shifting Program
