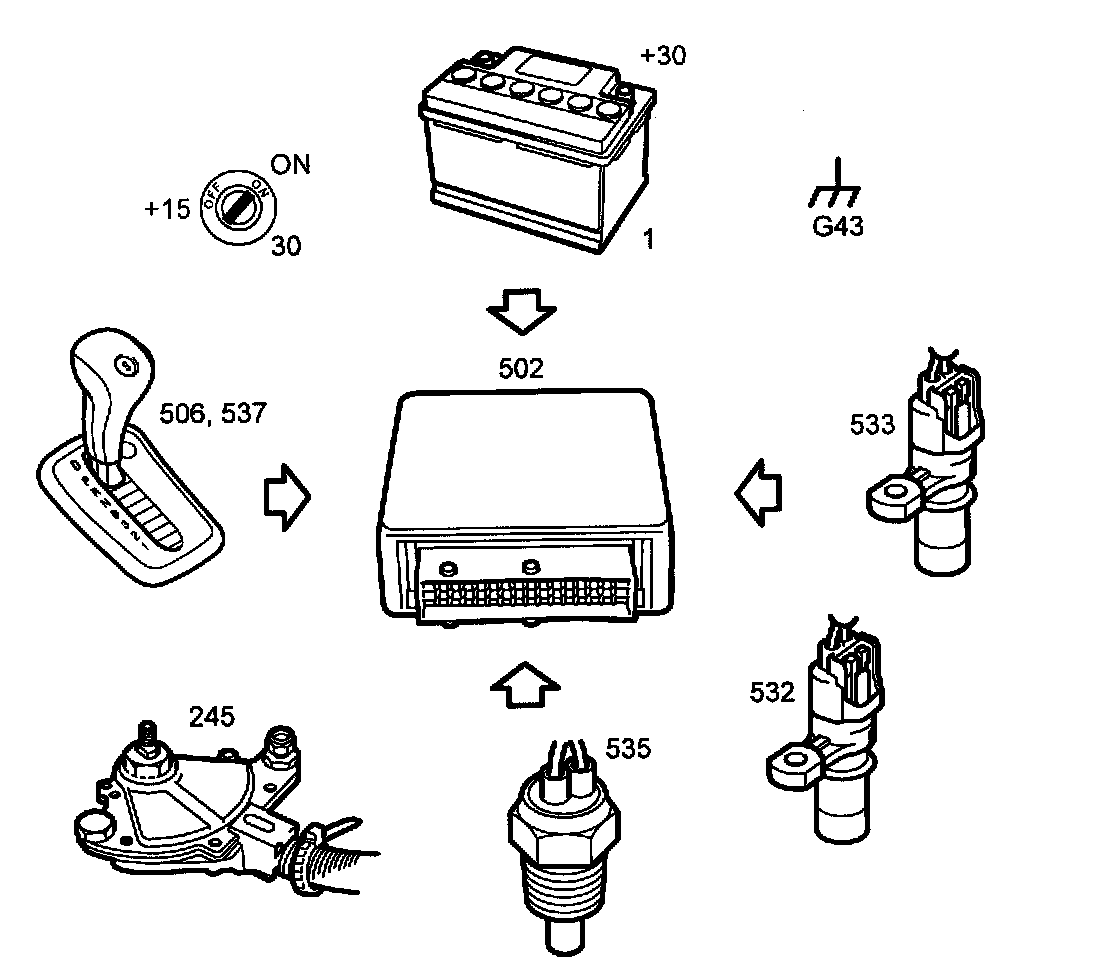

Control Module Inputs

^ Battery voltage (+30 circuit) (1), Control Module Power Supply
^ Battery voltage (+15 circuit) (30), Control Module Power Supply
^ Ground (G43), Control Module Ground
^ Input shaft speed sensor (532), Input Shaft Speed Sensor
^ Output shaft speed sensor (533), Output Shaft Speed Sensor
^ Transmission fluid temperature sensor (535), Transmission Fluid Temperature Sensor
^ Gear selector position sensor (245), Gear Selector Position Sensor - Gear Engaged
^ SPORT switch (537), Sport Shifting Program
^ WINTER switch (506), Winter Shifting Program
