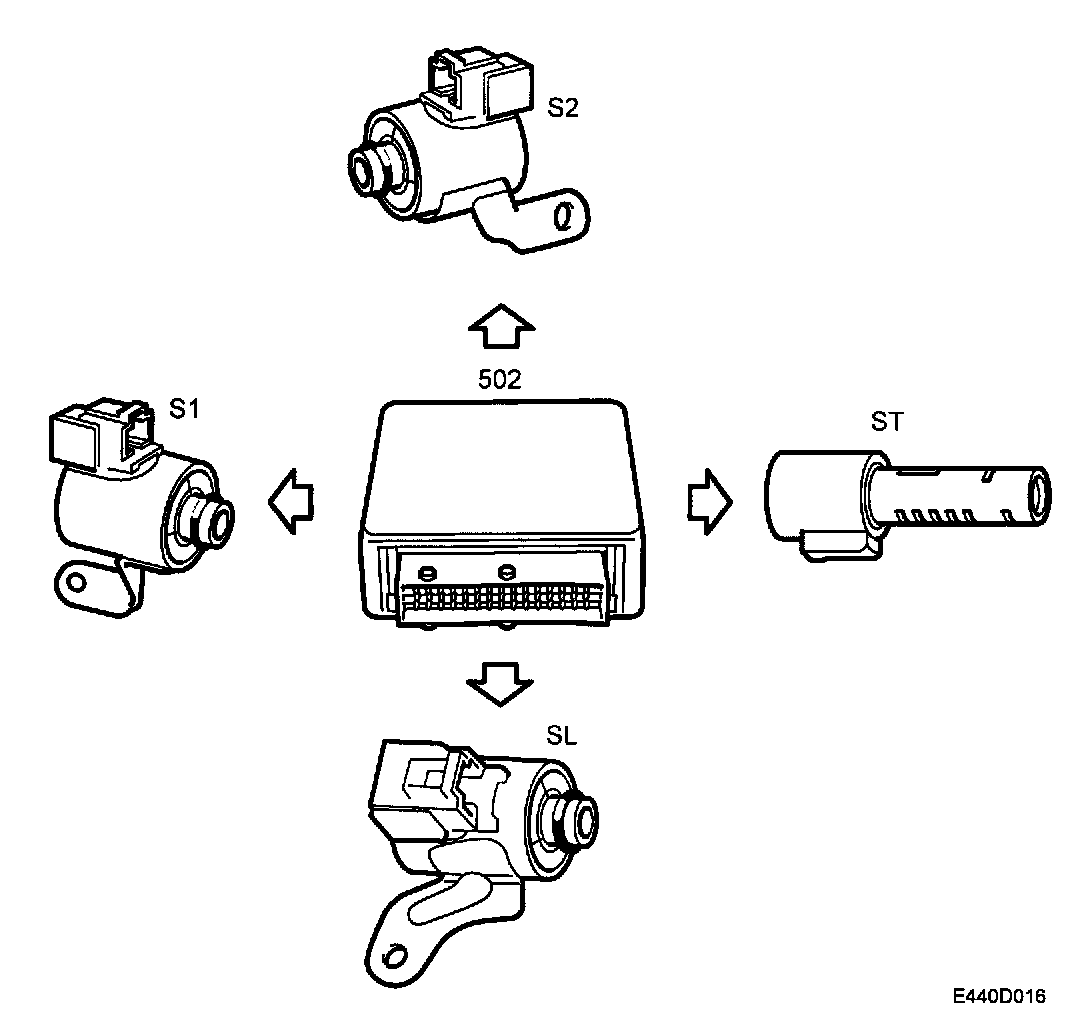

Control Module Outputs
^
Solenoid valve S1 for shifting,
Solenoid Valves, S1 and S2, For Shifting ^
Solenoid valve S2 for shifting,
Solenoid Valves, S1 and S2, For Shifting ^
Solenoid valve SL for Lock-up,
Solenoid Valve SL, For Lock-Up ^
Solenoid valve ST for system pressure,
Solenoid Valve SL, For Lock-Up
