Control Module Replacement

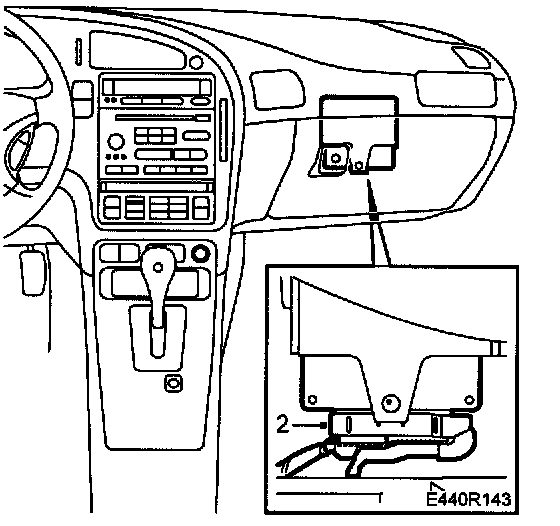

To Remove 1.
Remove the lower dashboard section by the passenger seat.
2.
Remove the control module by releasing the catches and unplugging the connector.

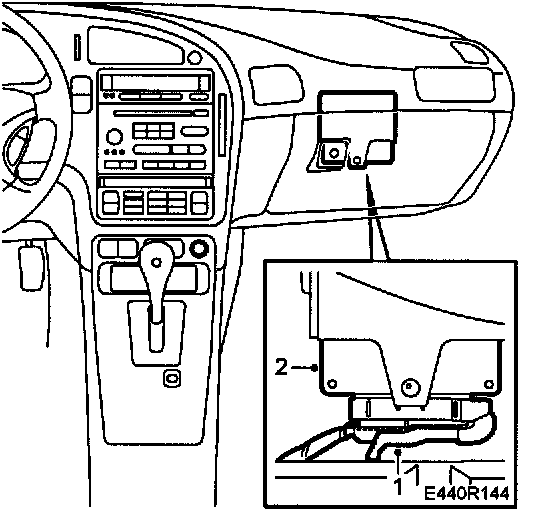

Fitting 1.
Plug the connector into the control module.
2.
Press the control module home so that the catches engage with it.
3.
Refit the lower dashboard section by the passenger seat.
