Power Seat Control Module: Description and Operation
Bus Messages, Seats (DSM)For a detailed description of the car's bus system, read bus and diagnostics communication, detailed description.

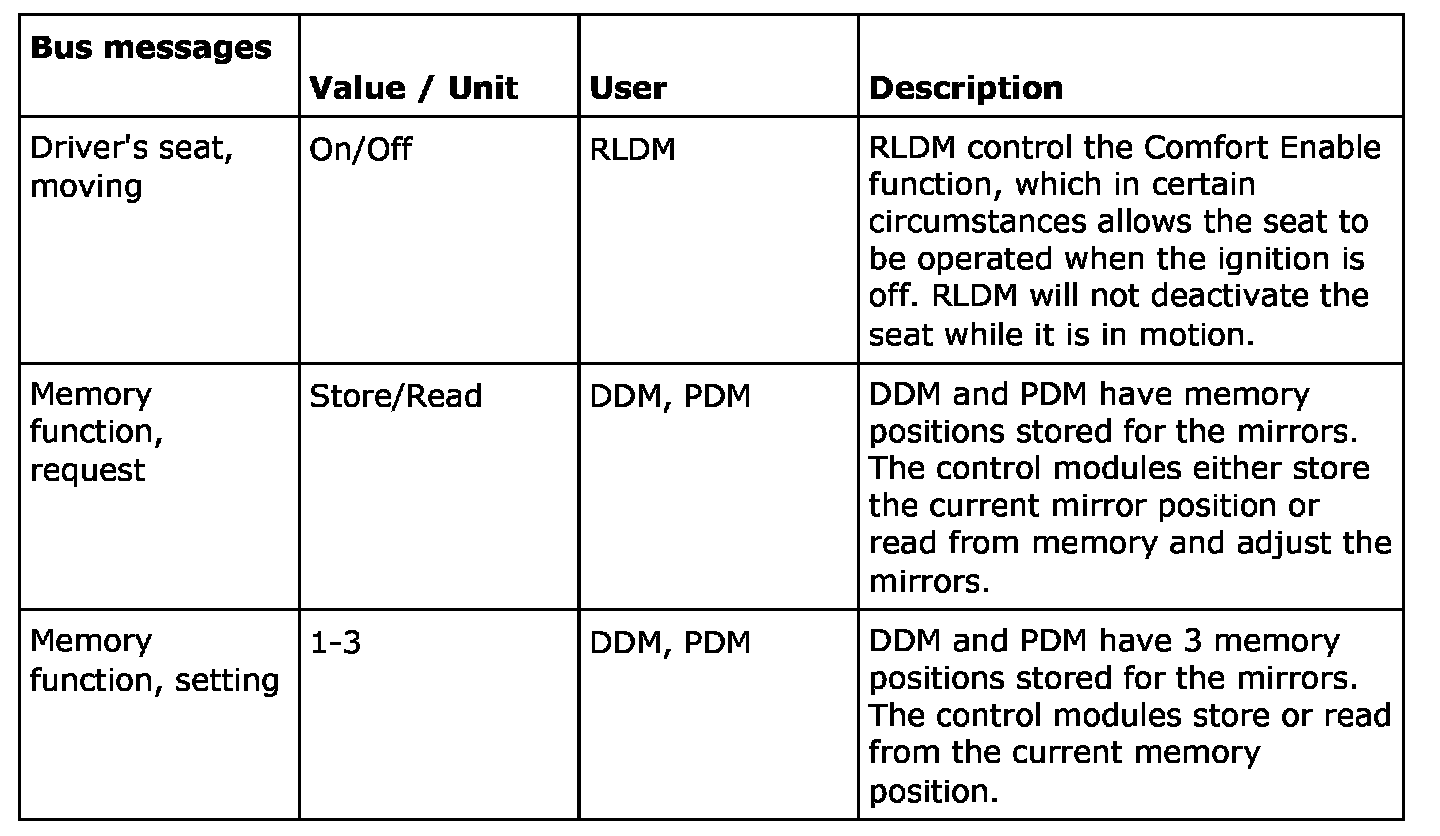

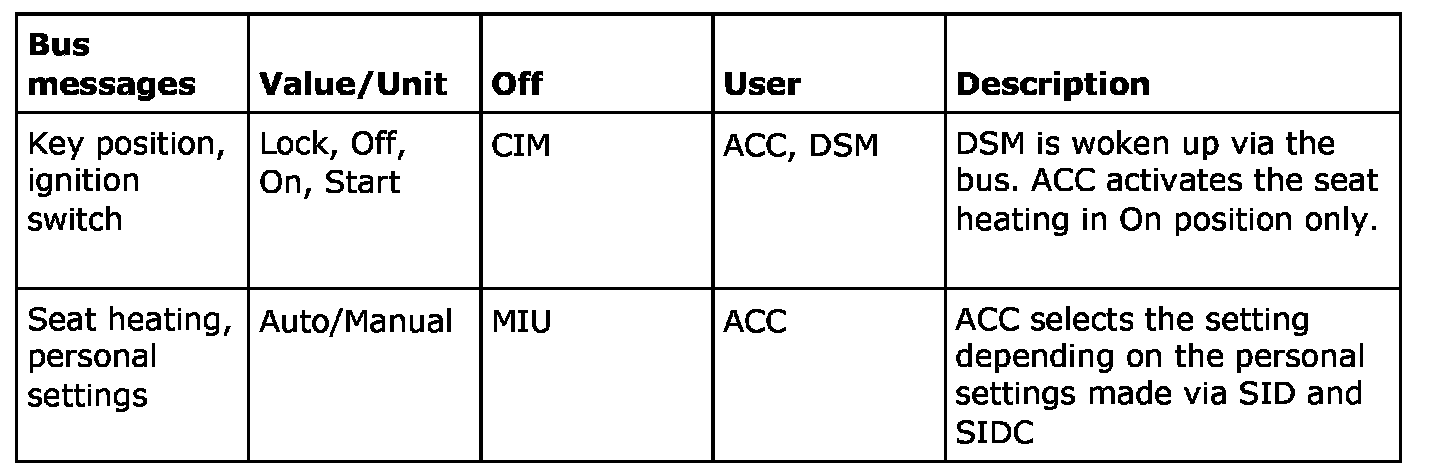

DSM uses the following informationDSM sends the following information
