Intake Air Sensor (688)

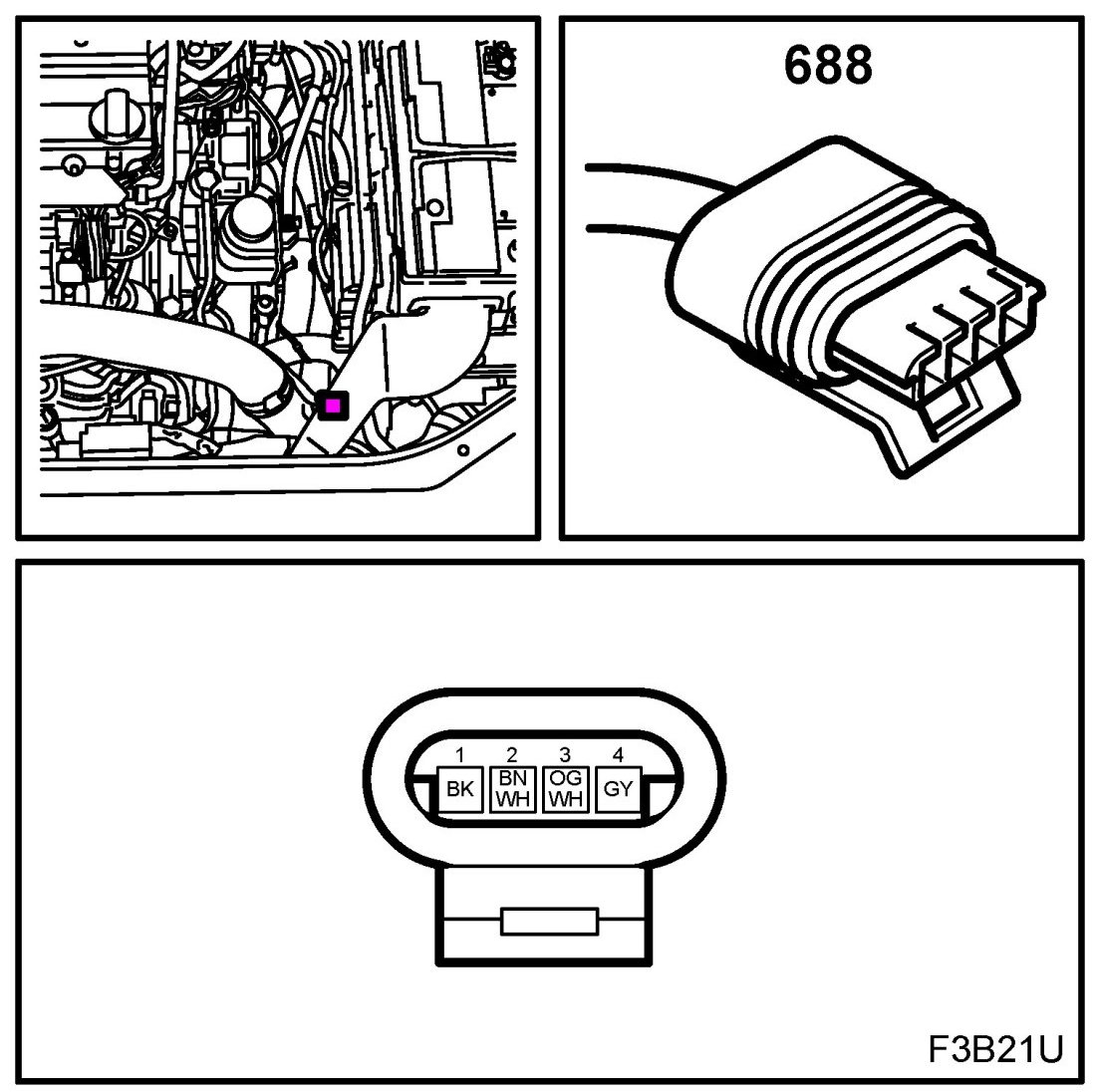

Intake Air Sensor (688)Location:B207on the charge air pipe

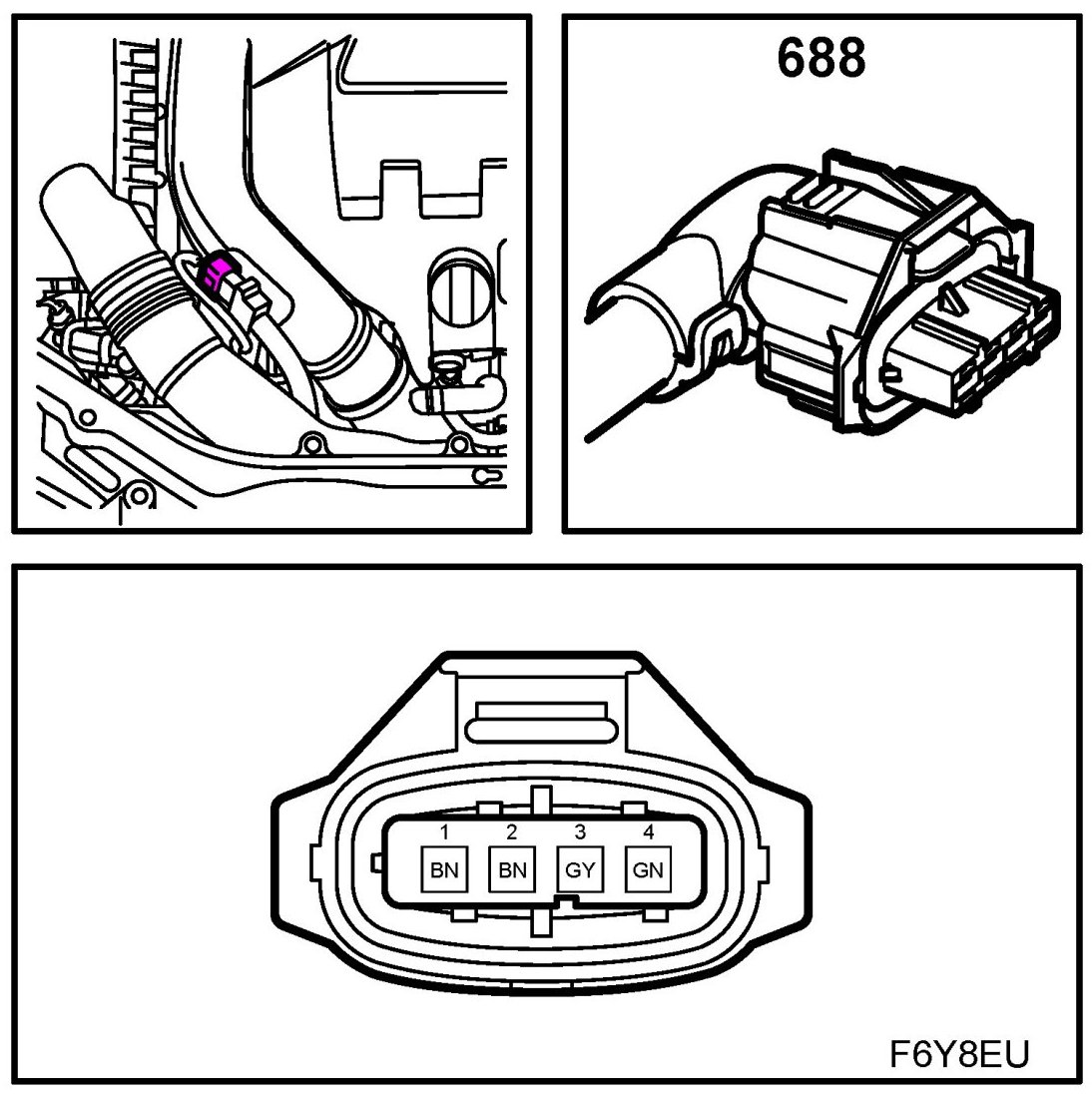

B284on intake manifold next to air filter

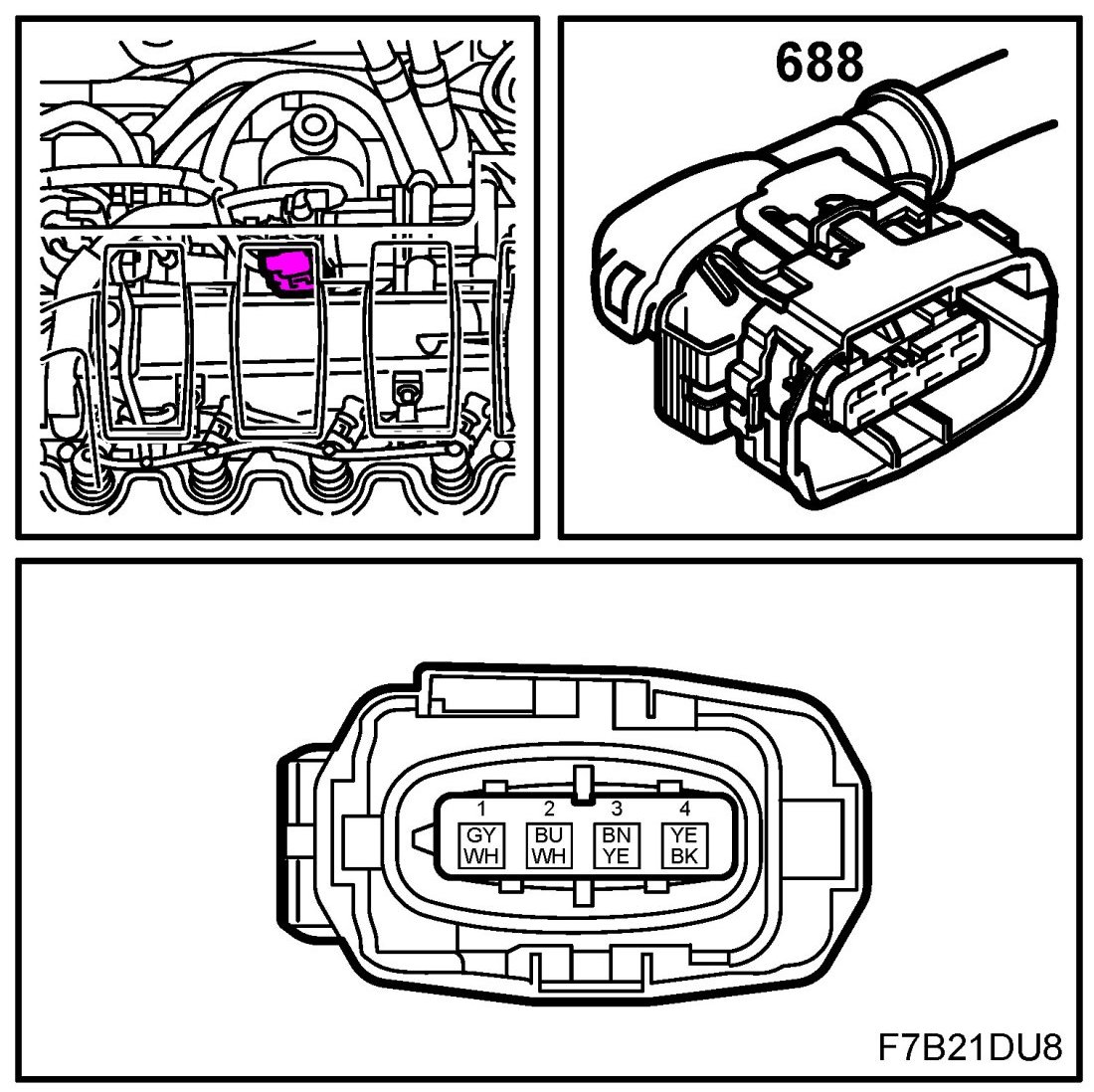

Z19DTin middle of induction pipe on top of engine

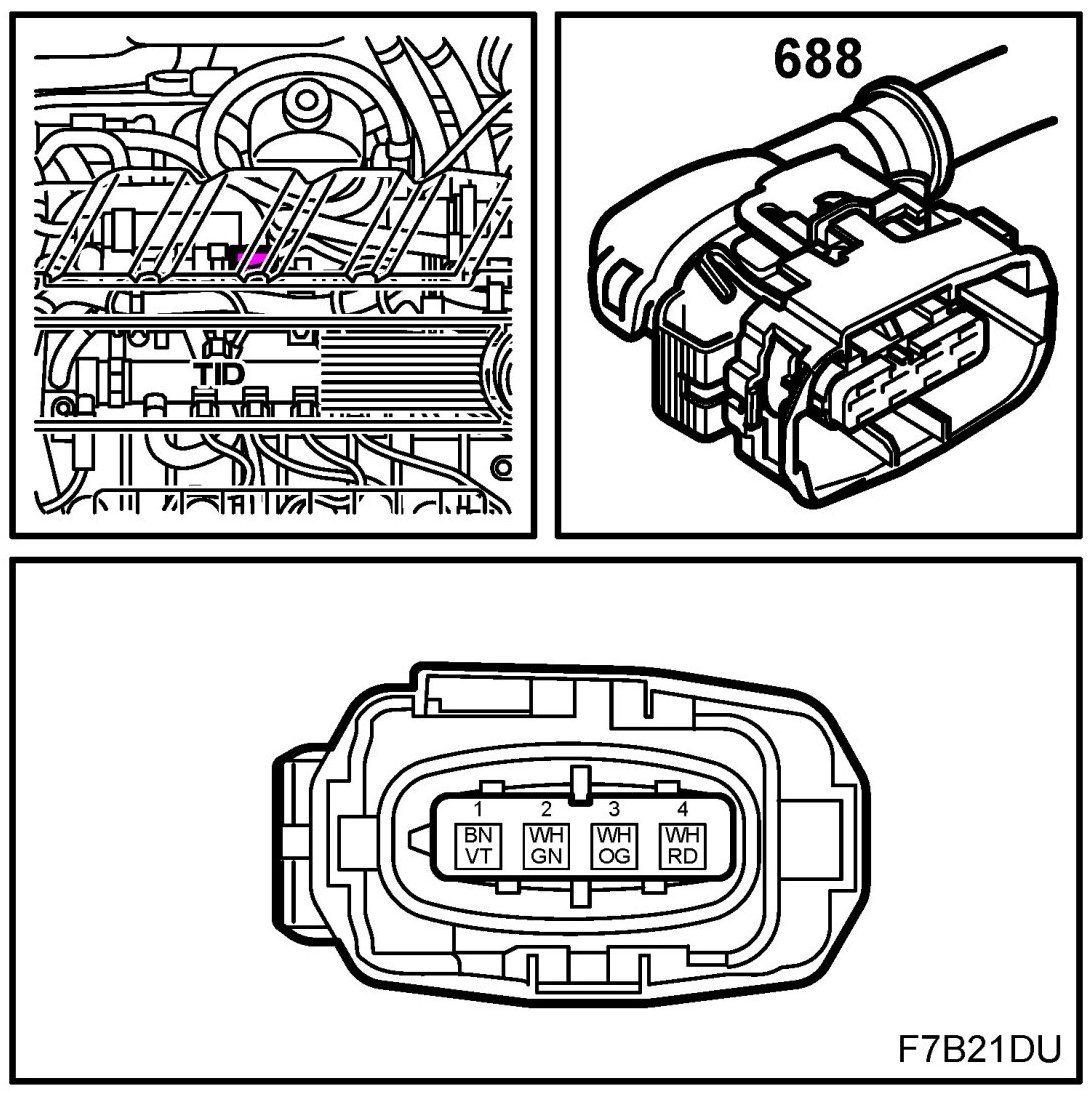

Z19DTH/DTRin the centre of the intake manifold on the rear of the engine
